DD41

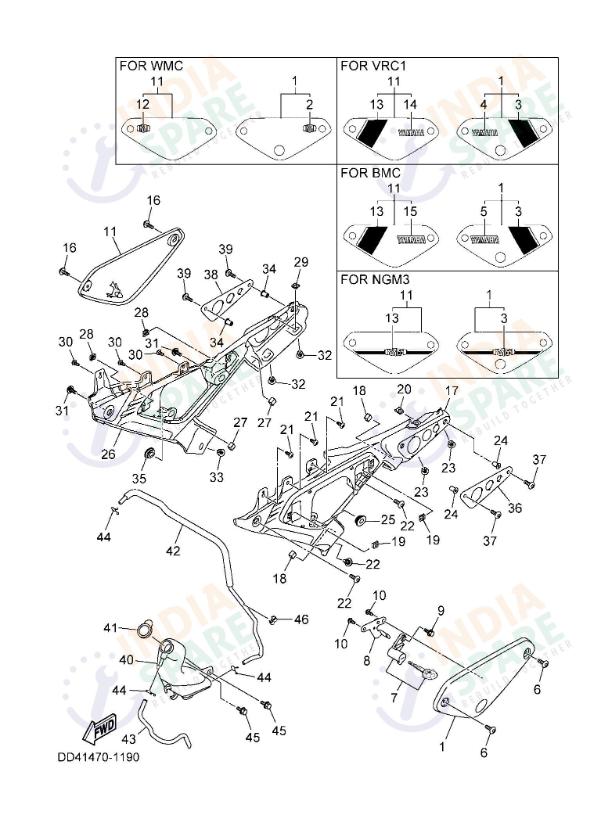

| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

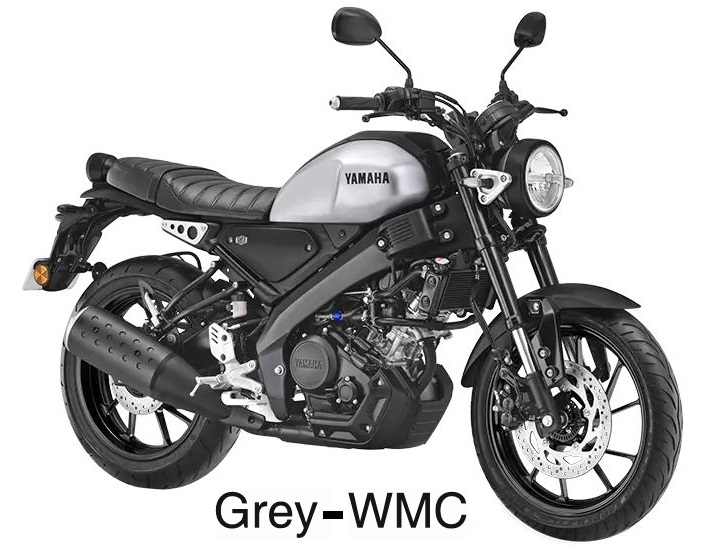

| 1A | DD4XF17100P0 | SIDE COVER ASSY 1 | ₹ 660 | 1 | FOR WMC | |

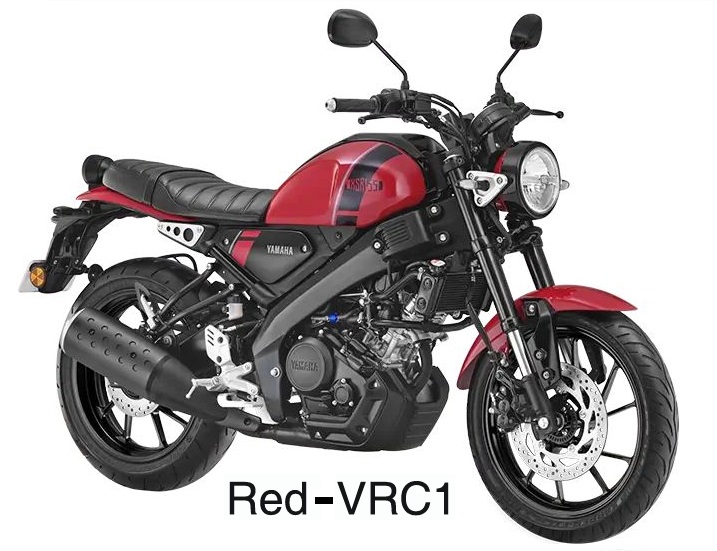

| 1B | DD4XF17100P4 | SIDE COVER ASSY 1 | ₹ 660 | 1 | FOR VRC1 | |

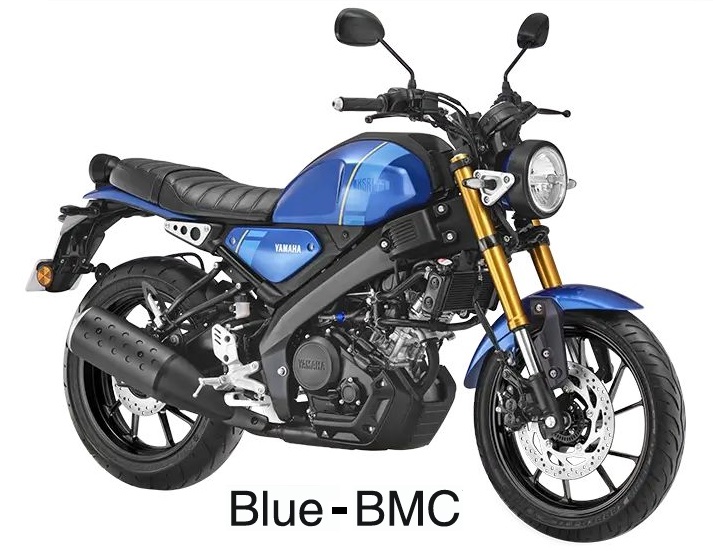

| 1C | DD4XF17100P5 | SIDE COVER ASSY 1 | ₹ 660 | 1 | FOR BMC | |

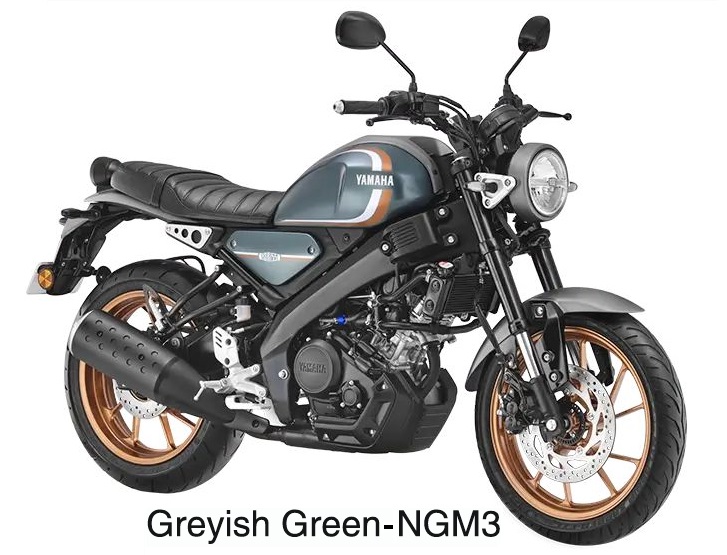

| 1D | DD4XF17100P6 | SIDE COVER ASSY 1 | ₹ 660 | 1 | FOR NGM3 | |
| 2 | DD4F17880000 | GRAPHIC | ₹ 50 | 1 | FOR WMC | |
| 3A | DD4F173E1000 | GRAPHIC 1 | ₹ 100 | 1 | FOR VRC1 | |
| 3B | DD4F173E2000 | GRAPHIC 1 | ₹ 100 | 1 | FOR BMC | |
| 3C | DD4F173E0000 | GRAPHIC 1 | ₹ 100 | 1 | FOR NGM3 | |
| 4 | 992470008000 | EMBLEM YAMAHA | ₹ 13 | 1 | FOR VRC1 | |
| 5 | B2UF83150000 | EMBLEM | ₹ 20 | 1 | FOR BMC | |
| 6 | 901110500300 | BOLT HEX. SOCKET BUTTON | ₹ 30 | 2 | ||
| 7 | 1CKWF47E0000 | SEAT LOCK ASSY | ₹ 139 | 1 | ||
| 8 | DD4F172E0000 | STAY, SIDE COVER 1 | ₹ 65 | 1 | ||
| 9 | 958020601600 | BOLT FLANGE | ₹ 19 | 1 | ||
| 10 | 977025001600 | SCREW TAPPING | ₹ 10 | 2 | ||
| 11A | DD4XF17200P0 | SIDE COVER ASSY 2 | ₹ 660 | 1 | FOR WMC | |
| 11B | DD4XF17200P4 | SIDE COVER ASSY 2 | ₹ 660 | 1 | FOR VRC1 | |
| 11C | DD4XF17200P5 | SIDE COVER ASSY 2 | ₹ 660 | 1 | FOR BMC | |
| 11D | DD4XF17200P6 | SIDE COVER ASSY 2 | ₹ 660 | 1 | FOR NGM3 | |
| 12 | DD4F17880000 | GRAPHIC | ₹ 50 | 1 | FOR WMC | |
| 13A | DD4F173F1000 | GRAPHIC 2 | ₹ 100 | 1 | FOR VRC1 | |
| 13B | DD4F173F2000 | GRAPHIC 2 | ₹ 100 | 1 | FOR BMC | |
| 13C | DD4F173F0000 | GRAPHIC 2 | ₹ 100 | 1 | FOR NGM3 | |
| 14 | 992470008000 | EMBLEM YAMAHA | ₹ 13 | 1 | FOR VRC1 | |
| 15 | B2UF83150000 | EMBLEM | ₹ 20 | 1 | FOR BMC | |
| 16 | 901110500300 | BOLT HEX. SOCKET BUTTON | ₹ 30 | 2 | ||
| 17 | DD4F17310000 | COVER, SIDE 3 | ₹ 200 | 1 | ||
| 18 | 905200800700 | SEAT PIPE | ₹ 5 | 2 | ||
| 19 | 90183050A700 | NUT SPRING | ₹ 22 | 2 | ||
| 20 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 21 | 977025001200 | SCREW TAPPING | ₹ 11 | 3 | ||
| 22 | 901110684800 | BOLT,HEX. SOCKET BUTTON | ₹ 20 | 3 | ||
| 23 | 902690681600 | RIVET | ₹ 12 | 2 | ||
| 24 | 901790580400 | NUT | ₹ 10 | 2 | ||
| 25 | 904800155900 | GROMMET | ₹ 10 | 1 | ||
| 26 | DD4F17410000 | COVER, SIDE 4 | ₹ 200 | 1 | ||
| 27 | 905200800700 | SEAT PIPE | ₹ 5 | 2 | ||
| 28 | 90183050A700 | NUT SPRING | ₹ 22 | 2 | ||
| 29 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 30 | 977025001200 | SCREW TAPPING | ₹ 11 | 3 | ||
| 31 | 901110684800 | BOLT,HEX. SOCKET BUTTON | ₹ 20 | 2 | ||
| 32 | 902690681600 | RIVET | ₹ 12 | 2 | ||
| 33 | 902690700700 | RIVET | ₹ 52 | 1 | ||
| 34 | 901790580400 | NUT | ₹ 10 | 2 | ||
| 35 | 904800155900 | GROMMET | ₹ 10 | 1 | ||
| 36 | DD4F171L0000 | MOLE, SIDE COVER 1 | ₹ 250 | 1 | ||
| 37 | 901110580900 | BOLT HEX. SOCKET BUTTON | ₹ 9 | 2 | ||
| 38 | DD4F171M0000 | MOLE, SIDE COVER 2 | ₹ 250 | 1 | ||
| 39 | 901110580900 | BOLT HEX. SOCKET BUTTON | ₹ 9 | 2 | ||
| 40 | BK7F18710000 | TANK RECOVERY | ₹ 105 | 1 | ||
| 41 | BK7F18750000 | CAP | ₹ 12 | 1 | ||
| 42 | BK7F18170000 | PIPE 2 | ₹ 81 | 1 | ||
| 43 | BK7F247A0000 | HOSE 1 | ₹ 11 | 1 | ||
| 44 | 904670800300 | CLIP OIL PIPE | ₹ 8 | 3 | ||
| 45 | 901090622000 | BOLT | ₹ 19 | 2 | ||
| 46 | 904681581100 | CLIP | ₹ 5 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - These body panels protect the internal components and define the bike's side profile. The assembly includes the Side Cover Assemblies, which house the seat lock mechanism and the coolant recovery tank. It features various Moles or trim pieces, graphics, and emblems. These panels are designed for easy removal for maintenance while providing a clean, finished look to the motorcycle's frame.
