DD41

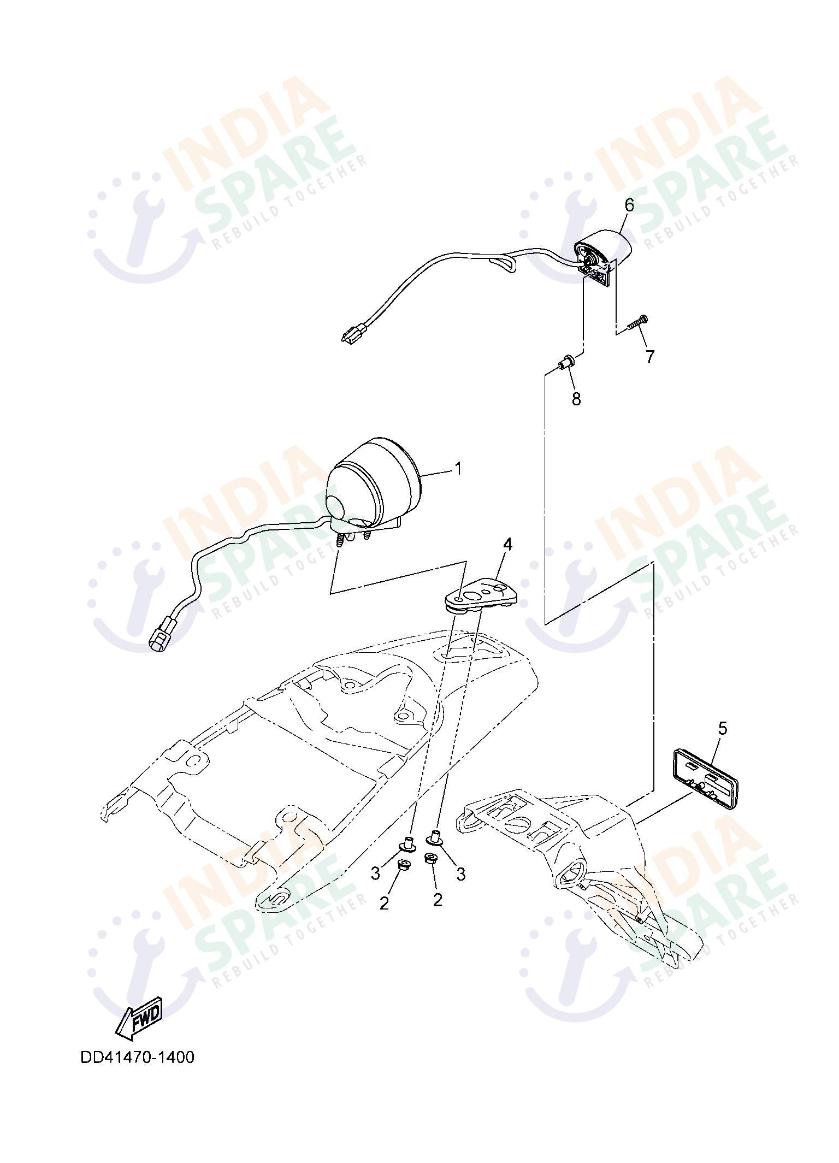

| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | DD4H47000000 | TAILLIGHT ASSY | ₹ 2200 | 1 | ||
| 2 | 9570N0650000 | NUT FLANGE | ₹ 2 | 2 | ||
| 3 | 903870615900 | COLLAR | ₹ 81 | 2 | ||
| 4 | DD4H47360000 | DAMPER, TAIL 1 | ₹ 100 | 1 | ||
| 5 | BE1H51300100 | REAR REFLECTOR ASSY | ₹ 40 | 1 | ||
| 6 | BPDH47400000 | LICENCE LIGHT ASSY | ₹ 465 | 1 | ||
| 7 | 989070402000 | SCREW BIND | ₹ 4 | 1 | ||
| 8 | 901790400300 | NUT | ₹ 115 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The Taillight assembly is essential for rear visibility and legal compliance. It features the complete Taillight Assy, designed with the XSR’s classic aesthetic in mind. The set includes the Rear Reflector Assy and the License Light Assy to ensure the bike is visible from all rear angles. Mounting components like dampers, collars, and flange nuts are included to provide a vibration-resistant fit to the rear fender.
