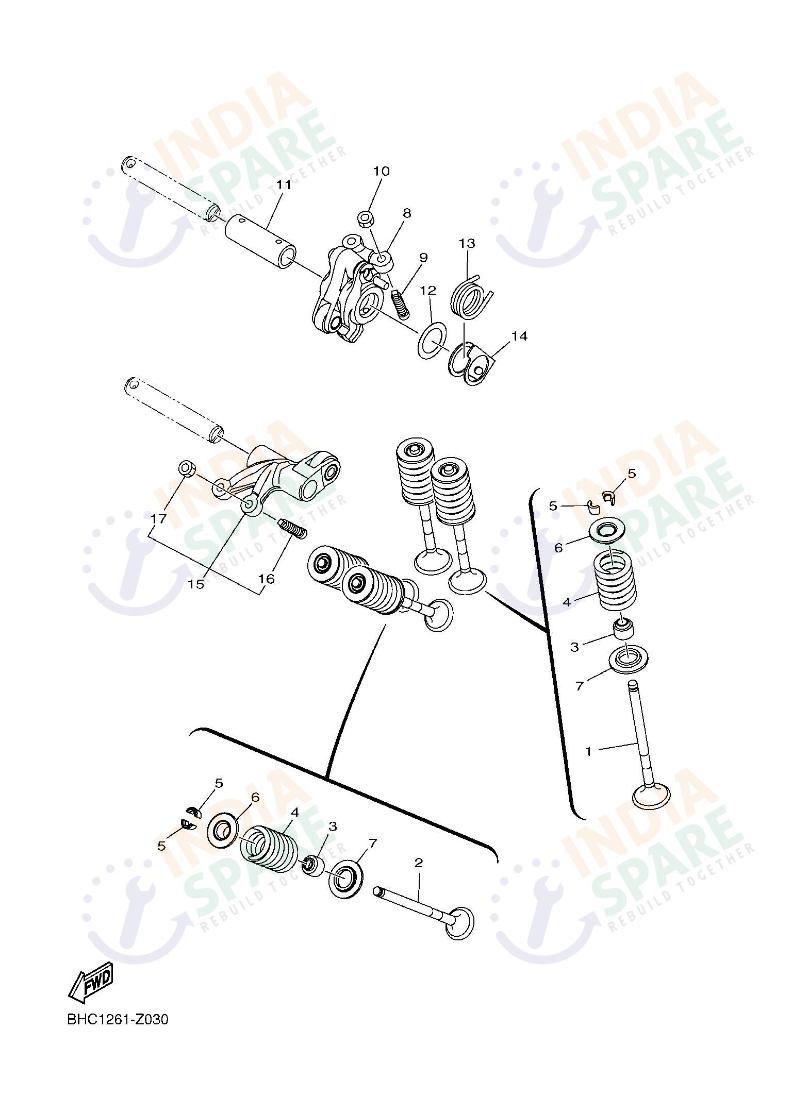

DD41
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BK7E21110000 | VALVE INTAKE | ₹ 125 | 2 | ||
| 2 | B0TE21210000 | VALVE EXHAUST | ₹ 199 | 2 | ||
| 3 | 1GCE21190000 | SEAL VALVE STEM | ₹ 30 | 4 | ||
| 4 | B63E21130000 | SPRING VALVE INNER | ₹ 99 | 4 | ||
| 5 | 5TLE21180000 | LOCK VALVE SPRING | ₹ 16 | 8 | ||
| 6 | B7JE21170000 | RETAINER VALVE SPRING | ₹ 13 | 4 | ||
| 7 | 38BE21260000 | SEAT VALVE SPRING 2 | ₹ 30 | 4 | ||
| 8 | BPDE21500000 | VALVE ROCKER ARM ASSY | ₹ 3226 | 1 | ||
| 9 | BCWE21590000 | SCREW, VALVE ADJUSTING | ₹ 40 | 2 | ||
| 10 | 901700530200 | NUT | ₹ 7 | 2 | ||
| 11 | BCWE21660000 | SHAFT ROCKER 3 | ₹ 220 | 1 | ||
| 12 | BK6E15570000 | WASHER 1 | ₹ 11 | 1 | ||
| 13 | BK6E22260000 | SPRING COIL | ₹ 103 | 1 | ||
| 14 | BK7E22790000 | PLATE | ₹ 15 | 1 | ||
| 15 | BCWE21600000 | VALVE ROCKER ARM A | ₹ 599 | 1 | ||
| 16 | BCWE21590000 | SCREW, VALVE ADJUSTING | ₹ 40 | 2 | ||
| 17 | 901700530200 | NUT | ₹ 7 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The Valve assembly manages the airflow into and out of the combustion chamber. It includes the Intake and Exhaust Valves, Valve Springs, and Rocker Arms. For maintenance, it features the valve adjusting screws and nuts, along with valve stem seals to prevent oil consumption. These high-precision parts are designed to operate at high RPMs under extreme heat.
