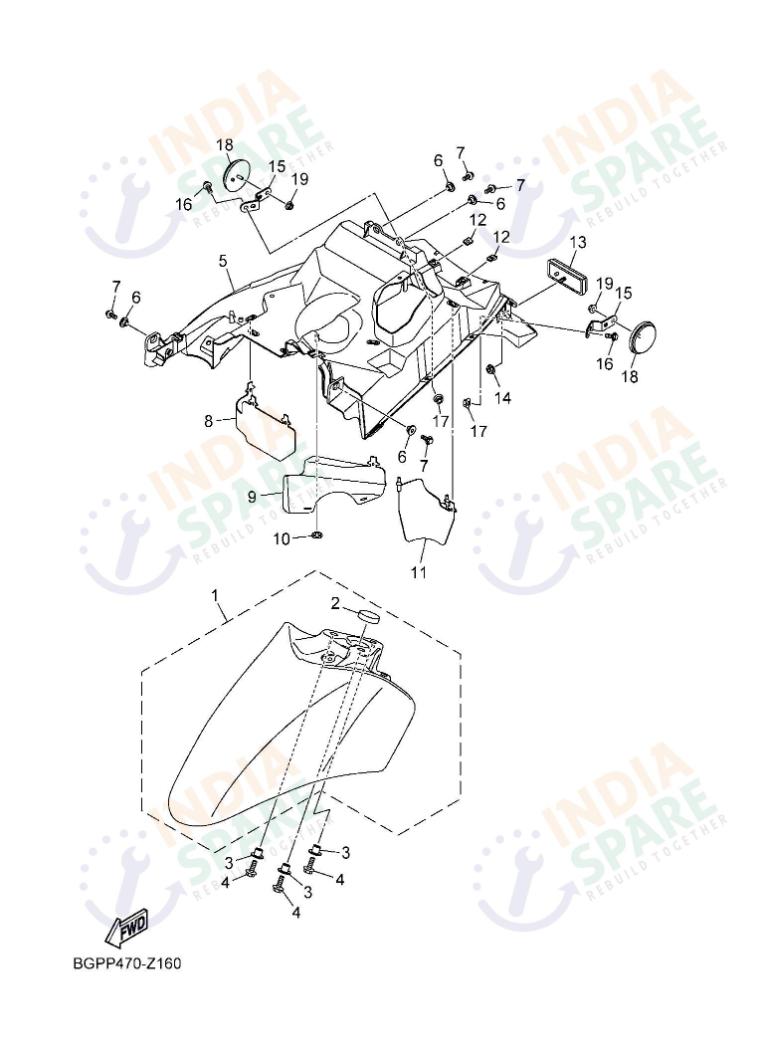

FENDER
0
DG53
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

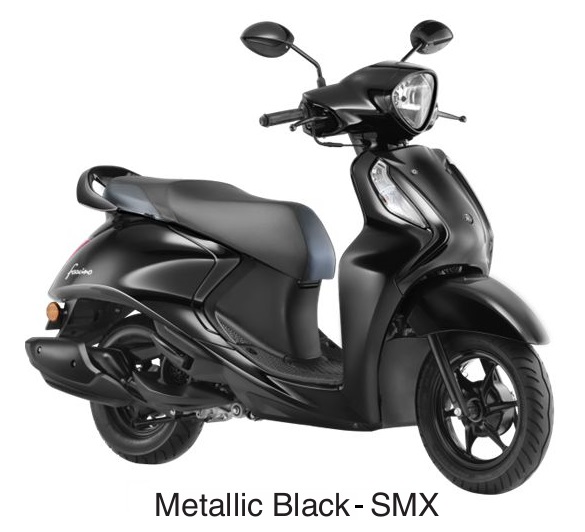

| 1 | B7JXF15140P0 | FENDER, FRONT | ₹ 1014 | 1 | FOR SMX | |
| 2 | B7JF15410000 | DAMPER 1 | ₹ 10 | 1 | ||
| 3 | 90387068U000 | COLLAR | ₹ 25 | 3 | ||
| 4 | 958170602000 | BOLT FLANGE | ₹ 31 | 3 | ||
| 5 | B7JF16110000 | FENDER, REAR | ₹ 298 | 1 | ||
| 6 | 90387068S100 | COLLAR | ₹ 12 | 4 | ||
| 7 | 958120601400 | BOLT, FLANGE | ₹ 5 | 4 | ||
| 8 | B7JF16210100 | FLAP | ₹ 25 | 1 | ||
| 9 | B7JF16910100 | FLAP | ₹ 32 | 1 | ||
| 10 | 901830506700 | NUT SPRING | ₹ 8 | 1 | ||
| 11 | B7JF162J0100 | FLAP 4 | ₹ 23 | 1 | ||
| 12 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 13 | 5USH51100100 | REFLECTOR ASSY | ₹ 16 | 1 | ||
| 14 | 957070550000 | NUT FLANGE | ₹ 1 | 1 | ||
| 15 | B7JF16410000 | BRACKET, REFLECTOR | ₹ 15 | 2 | ||
| 16 | 950220601200 | BOLT FLANGE | ₹ 8 | 2 | ||
| 17 | 9570N0650000 | NUT FLANGE | ₹ 2 | 2 | ||
| 18 | 2FCH51110000 | REFLECTOR FRONT 1 | ₹ 26 | 2 | ||
| 19 | 957070550000 | NUT FLANGE | ₹ 1 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA DG53 FASCINO 125 Series FENDER
