SIDE COVER
0
DG53
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B7JF172W0000 | COVER | ₹ 110 | 1 | ||
| 2 | 977025001200 | SCREW TAPPING | ₹ 11 | 2 | ||
| 3 | B7JXF17110P0 | SIDE COVER ASSY 1 | ₹ 1161 | 1 | FOR SMX | |
| 4 | BGPF173E0000 | GRAPHIC 1 | ₹ 125 | 1 | ||
| 5 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 6 | 977025001600 | SCREW TAPPING | ₹ 10 | 1 | ||
| 7 | 902690681300 | RIVET | ₹ 8 | 1 | ||
| 8 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 9 | B7JF171L10P0 | MOLE SIDE COVER 1 SMX | ₹ 388 | 1 | FOR SMX | |
| 10 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 11 | B7JXF17210P0 | SIDE COVER ASSY 2 | ₹ 1161 | 1 | FOR SMX | |
| 12 | BGPF173E0000 | GRAPHIC 1 | ₹ 125 | 1 | ||
| 13 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 14 | 977025001600 | SCREW TAPPING | ₹ 10 | 1 | ||
| 15 | 902690681300 | RIVET | ₹ 8 | 1 | ||
| 16 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 17 | B7JF171M10P0 | MOLE SIDE COVER 2 SMX | ₹ 388 | 1 | FOR SMX | |
| 18 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 19 | B7JXF17300P7 | COVER SIDE 3 | ₹ 444 | 1 | FOR SMX | |
| 20 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 21 | 2SPF836B0000 | TUNING FORK MARK | ₹ 20 | 1 | ||
| 22 | 977025001600 | SCREW TAPPING | ₹ 10 | 2 | ||
| 23 | B7JH451600P0 | COVER TAILLIGHT SMX | ₹ 136 | 1 | FOR SMX | |
| 24 | 977025001200 | SCREW TAPPING | ₹ 11 | 2 | ||
| 25 | 904640400500 | CLAMP | ₹ 6 | 4 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.

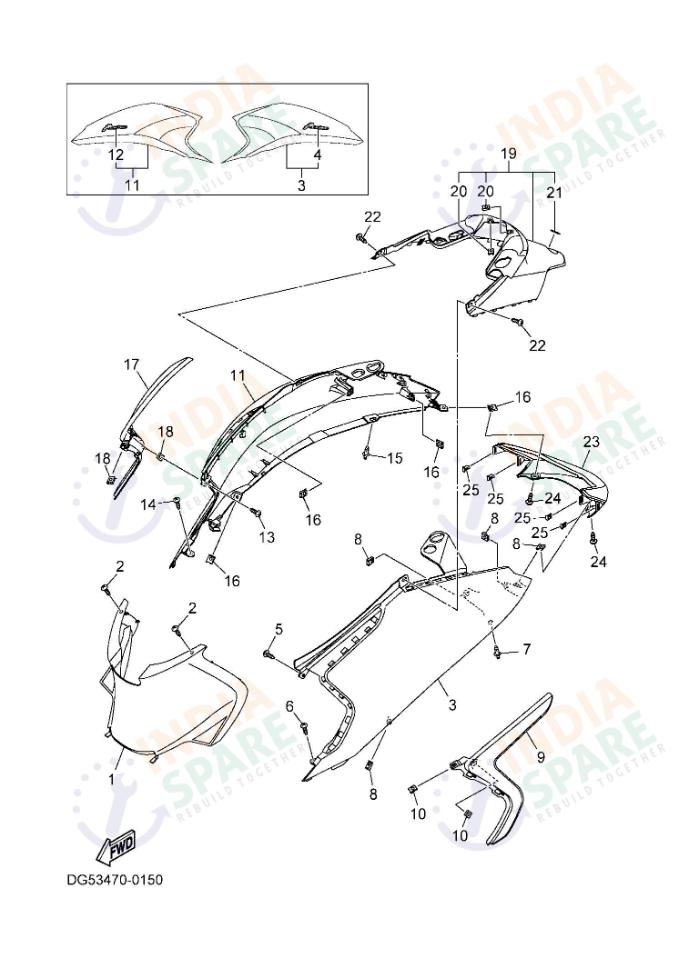

Description: - YAMAHA DG53 FASCINO 125 Series SIDE COVER
