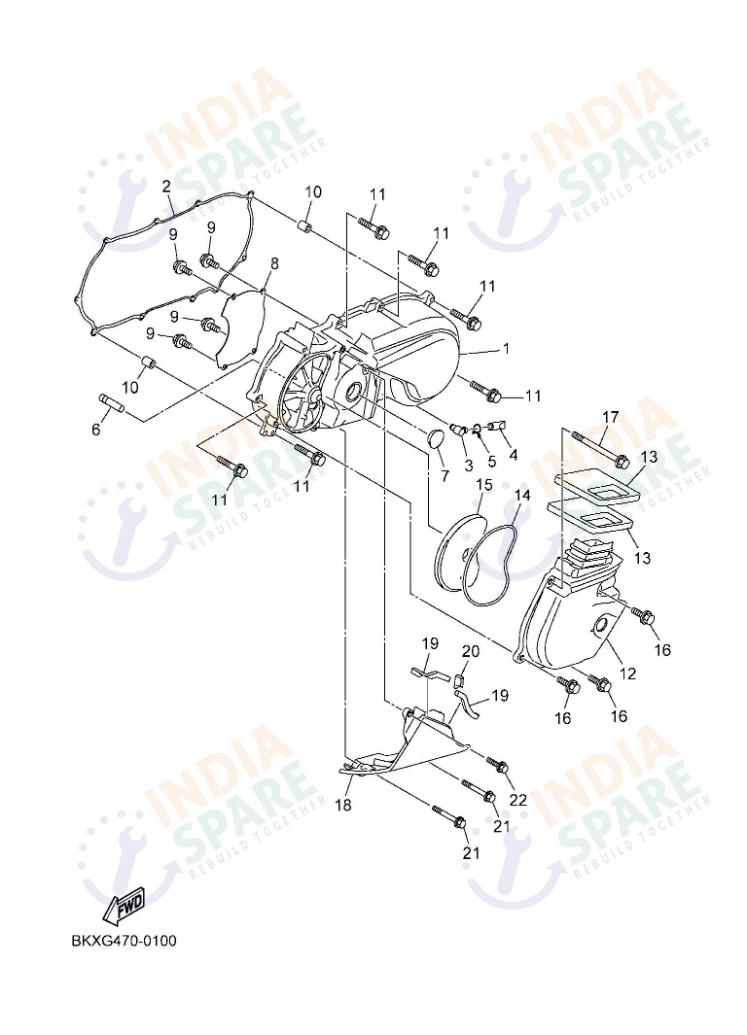

DG55
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B7JE54110000 | COVER CRANKCASE 1 | ₹ 1604 | 1 | ||
| 2 | B7JE54510000 | GASKET CRANKCASE COVER 1 | ₹ 207 | 1 | ||
| 3 | 1GCE53710000 | BREATHER | ₹ 3 | 1 | ||
| 4 | 1GCE443E0000 | PIPE, DRAIN | ₹ 4 | 1 | ||
| 5 | 904671110600 | CLIP | ₹ 10 | 1 | ||
| 6 | B5DE56590000 | SHAFT | ₹ 25 | 1 | ||
| 7 | B5DE51670000 | PLUG, BLIND 1 | ₹ 30 | 1 | ||
| 8 | B7JE51910000 | PLATE | ₹ 34 | 1 | ||
| 9 | 950220601000 | BOLT FLANGE | ₹ 15 | 4 | ||
| 10 | 918101480400 | PIN DOWEL | ₹ 7 | 2 | ||
| 11 | 950220603500 | BOLT FLANGE | ₹ 11 | 6 | ||
| 12 | BGPE54710000 | DUCT, AIR | ₹ 156 | 1 | ||
| 13 | B7JE54080000 | ELEMENT 2 | ₹ 42 | 2 | ||
| 14 | B7JE54720000 | SEAL AIR DUCT | ₹ 13 | 1 | ||
| 15 | B7JE54070000 | ELEMENT 1 | ₹ 64 | 1 | ||
| 16 | 958170602000 | BOLT FLANGE | ₹ 31 | 3 | ||
| 17 | 958120608000 | BOLT FLANGE | ₹ 17 | 1 | ||
| 18 | B7JE54130000 | COVER | ₹ 38 | 1 | ||
| 19 | 905200583800 | DAMPER PLATE | ₹ 8 | 2 | ||
| 20 | 905200583600 | DAMPER PLATE | ₹ 8 | 1 | ||
| 21 | 950220604500 | BOLT FLANGE | ₹ 13 | 2 | ||
| 22 | 950220602000 | BOLT FLANGE | ₹ 15 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Protect your CVT system with the Yamaha Fascino Crankcase Cover 1. This assembly includes the main Cover, Gasket Crankcase Cover, and the Air Duct Element for internal cooling. It also features the Breather and various Dampers to ensure quiet operation. Precision-machined Dowel Pins and Flange Bolts are included for a perfect fit. Genuine covers are vital for keeping dust and moisture away from your belt, ensuring the longevity of your transmission system.
