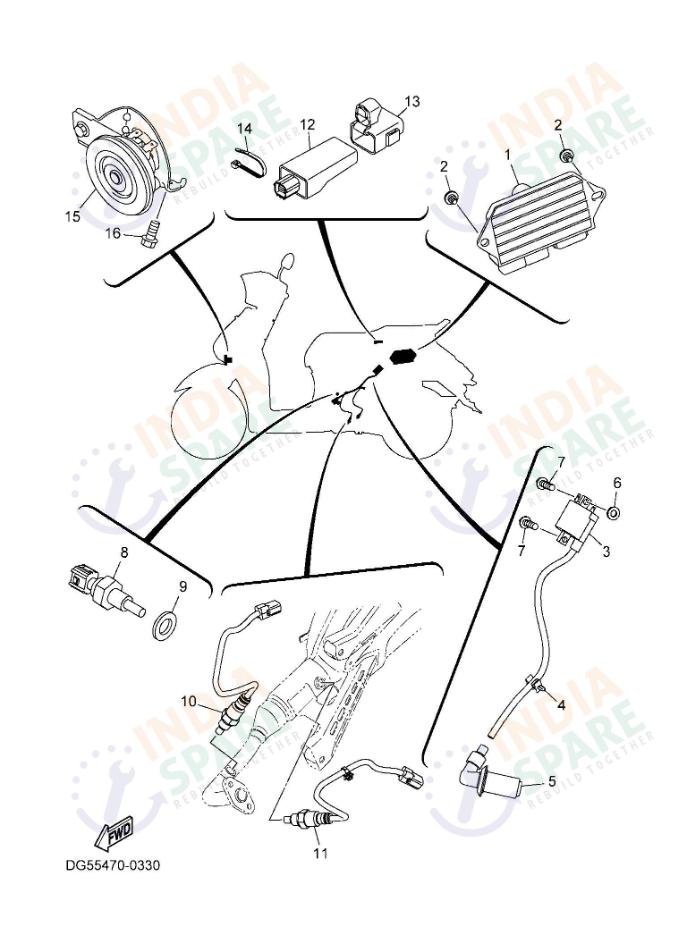

DG55
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BGPH594A5000 | STARTER GEN. CONT. | ₹ 10242 | 1 | ||
| 2 | 901090620200 | BOLT | ₹ 13 | 2 | ||
| 3 | B7JH23101000 | IGNITION COIL ASSY | ₹ 867 | 1 | ||
| 4 | 904640980700 | CLAMP | ₹ 8 | 1 | ||
| 5 | B7JH23700000 | PLUG CAP ASSY | ₹ 218 | 1 | ||
| 6 | 902010685200 | WASHER PLATE | ₹ 1 | 1 | ||
| 7 | 950220602500 | BOLT FLANGE | ₹ 11 | 2 | ||
| 8 | B4RH35910000 | THERMO UNIT | ₹ 375 | 1 | ||
| 9 | 904301080600 | GASKET | ₹ 8 | 1 | ||
| 10 | BGPH592A2000 | SENSOR | ₹ 4645 | 1 | ||
| 11 | BGPH592A3000 | SENSOR | ₹ 4645 | 1 | ||
| 12 | B6YH58101200 | B6YH58101200 | ₹ 0 | 1 | ||
| 13 | BGPH55460000 | BAND | ₹ 40 | 1 | ||
| 14 | 904645080000 | CLAMP | ₹ 6 | 1 | ||
| 15 | B7JH33710100 | HORN | ₹ 350 | 1 | ||
| 16 | 950220601200 | BOLT FLANGE | ₹ 8 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Power your ignition and alerts with the Yamaha Fascino Electrical 1 assembly. This kit features the Ignition Coil Assy, Plug Cap Assy, and the essential Thermo Unit for engine monitoring. It also includes the Horn, Gasket, and various electrical Clamps and Bands for a neat and secure harness installation. Using original electrical parts ensures your scooter starts reliably and all sensors communicate correctly with the control system for peak performance.
