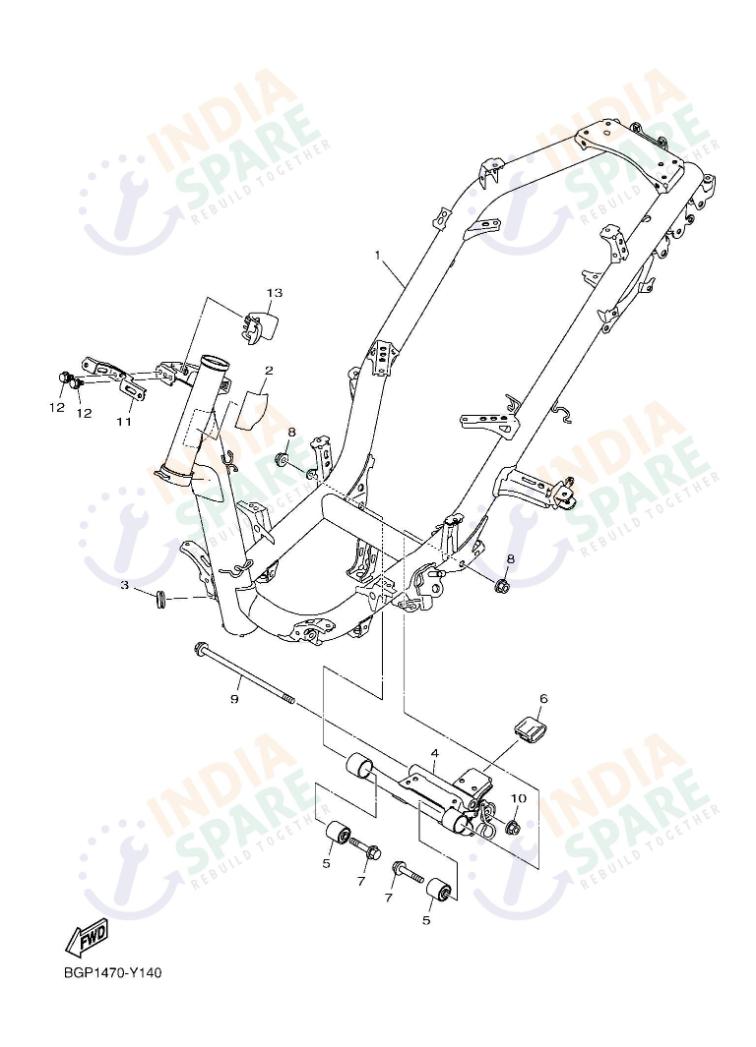

DG55
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BGPF11100000 | FRAME COMP. | ₹ 6674 | 1 | ||
| 2 | 905200282900 | DAMPER PLATE | ₹ 18 | 1 | ||
| 3 | 904801223700 | GROMMET | ₹ 67 | 1 | ||
| 4 | B7JF14100000 | ENGINE BRACKET COMP. | ₹ 706 | 1 | ||
| 5 | 903881082100 | DAMPER | ₹ 80 | 2 | ||
| 6 | B7JF71140000 | STOPPER MAIN STAND | ₹ 22 | 1 | ||
| 7 | 90105108C300 | BOLT, FLANGE | ₹ 24 | 2 | ||
| 8 | 956021020000 | NUT U FLANGE | ₹ 32 | 2 | ||
| 9 | 90105108C400 | BOLT FLANGE | ₹ 100 | 1 | ||
| 10 | 956021020000 | NUT U FLANGE | ₹ 32 | 1 | ||
| 11 | B7JF83560000 | STAY 1 | ₹ 129 | 1 | ||
| 12 | 958170601000 | BOLT FLANGE | ₹ 8 | 2 | ||
| 13 | B7JF834V0000 | PROTECTOR 1 | ₹ 15 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The Yamaha Fascino Frame assembly is the structural foundation of your scooter. This kit includes the main Frame Comp, Engine Bracket Comp, and various Dampers to minimize vibration transmission. It features high-strength Flange Bolts and Nut U Flange hardware to ensure all components are anchored to factory safety standards. Choosing a genuine frame ensures that your scooter maintains its original geometry, leading to better handling and reliability.
