DG55

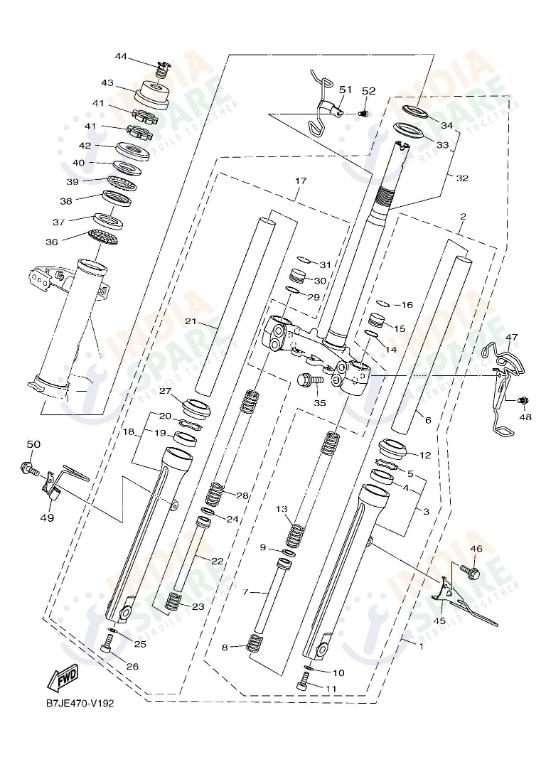

| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B7JF31001000 | FRONT FORK ASSY | ₹ 6785 | 1 | ||
| 2 | B7JF31021000 | FRONT FORK ASSY (L.H) | ₹ 2919 | 1 | ||
| 3 | B7JF31771000 | TUBE OUTER 3 | ₹ 1445 | 1 | ||
| 4 | B7JF31450000 | OIL SEAL | ₹ 167 | 1 | ||
| 5 | B7JF31560000 | RING SNAP | ₹ 12 | 1 | ||
| 6 | B7JF31100000 | INNER TUBE COMP.1 | ₹ 1045 | 1 | ||
| 7 | B7JF31700000 | CYLINDER COMP. FRONT FORK | ₹ 110 | 1 | ||
| 8 | B7JF31520000 | SPRING SUB | ₹ 15 | 1 | ||
| 9 | B7JF31570000 | RING PISTON | ₹ 19 | 1 | ||
| 10 | 2FSF31580000 | GASKET | ₹ 15 | 1 | ||
| 11 | 2FSF31810000 | BOLT, HEXAGON SOCKET HEAD | ₹ 25 | 1 | ||
| 12 | B7JF31440000 | SEAL DUST | ₹ 68 | 1 | ||
| 13 | B7JF31410000 | SPRING FRONT FORK | ₹ 90 | 1 | ||
| 14 | 2JGF31470000 | O-RING | ₹ 17 | 1 | ||
| 15 | B7JF31110000 | BOLT CAP | ₹ 46 | 1 | ||
| 16 | B7JF31530000 | RING SNAP | ₹ 13 | 1 | ||
| 17 | B7JF31031000 | FRONT FORK ASSY (R.H) | ₹ 2919 | 1 | ||
| 18 | B7JF31781000 | TUBE OUTER 4 | ₹ 1445 | 1 | ||
| 19 | B7JF31450000 | OIL SEAL | ₹ 167 | 1 | ||
| 20 | B7JF31560000 | RING SNAP | ₹ 12 | 1 | ||
| 21 | B7JF31100000 | INNER TUBE COMP.1 | ₹ 1045 | 1 | ||
| 22 | B7JF31700000 | CYLINDER COMP. FRONT FORK | ₹ 110 | 1 | ||
| 23 | B7JF31520000 | SPRING SUB | ₹ 15 | 1 | ||
| 24 | B7JF31570000 | RING PISTON | ₹ 19 | 1 | ||
| 25 | 2FSF31580000 | GASKET | ₹ 15 | 1 | ||
| 26 | 2FSF31810000 | BOLT, HEXAGON SOCKET HEAD | ₹ 25 | 1 | ||
| 27 | B7JF31440000 | SEAL DUST | ₹ 68 | 1 | ||
| 28 | B7JF31410000 | SPRING FRONT FORK | ₹ 90 | 1 | ||
| 29 | 2JGF31470000 | O-RING | ₹ 17 | 1 | ||
| 30 | B7JF31110000 | BOLT CAP | ₹ 46 | 1 | ||
| 31 | B7JF31530000 | RING SNAP | ₹ 13 | 1 | ||
| 32 | B7JF33401000 | UNDER BRACKET COMP. | ₹ 3341 | 1 | ||
| 33 | B7JF34620000 | SEAL STEERING | ₹ 29 | 1 | ||
| 34 | 21CF34110000 | ..RACE, BALL 1 | ₹ 0 | 1 | ||
| 35 | 2FSF33460000 | BOLT 1 | ₹ 13 | 4 | ||
| 36 | 4LSF341E1000 | RETAINER, BALL BEARING | ₹ 0 | 1 | ||
| 37 | 21CF34120000 | RACE, BALL 2 | ₹ 0 | 1 | ||
| 38 | 21CF34140000 | RACE, BALL 4 | ₹ 0 | 1 | ||
| 39 | 4LSF341E0000 | RETAINER, BALL BEARING | ₹ 0 | 1 | ||
| 40 | 21CF34130000 | RACE, BALL 3 | ₹ 0 | 1 | ||
| 41 | 901792581200 | NUT | ₹ 30 | 2 | ||
| 42 | 1GCF34161000 | COVER BALL RACE 2 | ₹ 9 | 1 | ||
| 43 | B7JF34150100 | COVER BALL RACE 1 | ₹ 20 | 1 | ||
| 44 | B7JF312G0000 | PLUG | ₹ 10 | 1 | ||
| 45 | B7JF33171000 | HOLDER CABLE | ₹ 245 | 1 | ||
| 46 | 950220601200 | BOLT FLANGE | ₹ 8 | 1 | ||
| 47 | B7JF38570000 | HOLDER | ₹ 101 | 1 | ||
| 48 | 950220601200 | BOLT FLANGE | ₹ 8 | 1 | ||
| 49 | B7JF58750000 | HOLDER BRAKE HOSE 1 | ₹ 51 | 1 | ||
| 50 | 950220601200 | BOLT FLANGE | ₹ 8 | 1 | ||
| 51 | B7JF58870000 | HOLDER BRAKE HOSE | ₹ 52 | 1 | ||
| 52 | 920120601000 | BOLT BUTTON HEAD | ₹ 14 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Restore your scooter’s suspension with the Yamaha Fascino Front Fork kit. This assembly features both Left and Right Fork units, including the Inner Tube Comp and Outer Tubes. It comes with the complete steering head set, including Ball Races and Bearings, for smooth steering. Technical items like Oil Seals, Dust Seals, and Piston Rings are provided to ensure a leak-free suspension. Genuine forks are essential for maintaining the balanced handling of your scooter.
