DG55

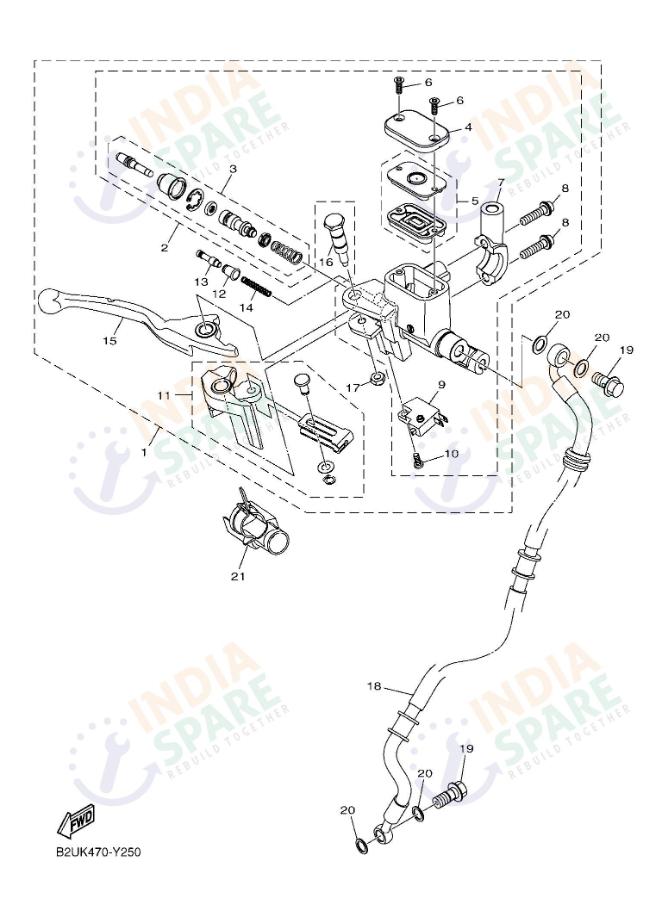

| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B7JF583T0100 | MASTER CYLINDER ASSY | ₹ 1733 | 1 | ||
| 2 | B7JF580A0000 | MASTER CYLINDER SU | ₹ 1523 | 1 | ||
| 3 | B7JF58070000 | CYLINDER KIT MAST | ₹ 154 | 1 | ||
| 4 | B7JF58520000 | CAP RESERVOIR | ₹ 46 | 1 | ||
| 5 | B7JW004B0000 | DIAPHRAGM SEAL KIT | ₹ 34 | 1 | ||
| 6 | B7JF589H0000 | SCREW | ₹ 28 | 2 | ||
| 7 | B7JF58670000 | BRACKET MASTER CYLINDER | ₹ 93 | 1 | ||
| 8 | B7JF63320000 | BOLT 2 | ₹ 69 | 2 | ||
| 9 | B7JH39800000 | FRONT STOP SWITCH ASSY | ₹ 109 | 1 | ||
| 10 | B7JF585H0000 | SCREW SET | ₹ 12 | 1 | ||
| 11 | B7JW004A1000 | KNOCKER SET | ₹ 331 | 1 | ||
| 12 | B7JF583H0000 | BOOT | ₹ 21 | 1 | ||
| 13 | B7JF58610000 | PISTON | ₹ 19 | 1 | ||
| 14 | B7JF58650000 | SPRING SEAT | ₹ 10 | 1 | ||
| 15 | B7JH39220100 | LEVER 2 | ₹ 212 | 1 | ||
| 16 | B7JF589F0000 | BOLT LEVER | ₹ 62 | 1 | ||
| 17 | B7JF586F0000 | NUT COVER | ₹ 10 | 1 | ||
| 18 | BGPF58720000 | HOSE, BRAKE 1 | ₹ 921 | 1 | ||
| 19 | 904011082600 | BOLT UNION | ₹ 46 | 2 | ||
| 20 | 902011011800 | WASHER PLAIN | ₹ 5 | 4 | ||
| 21 | B7JF585C0000 | COVER MASTER CYLIN | ₹ 16 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Restore your braking performance with the Yamaha Fascino Front Master Cylinder assembly. This critical safety kit includes the Master Cylinder Assy, Cylinder Kit Master, and the Reservoir Cap with a high-quality Diaphragm Seal. It also features the Lever 2, Front Stop Switch Assy, and technical hardware like the Bolt Union and Washers. Genuine braking parts provide the correct hydraulic pressure and lever feel, ensuring your front disc brake responds safely.
