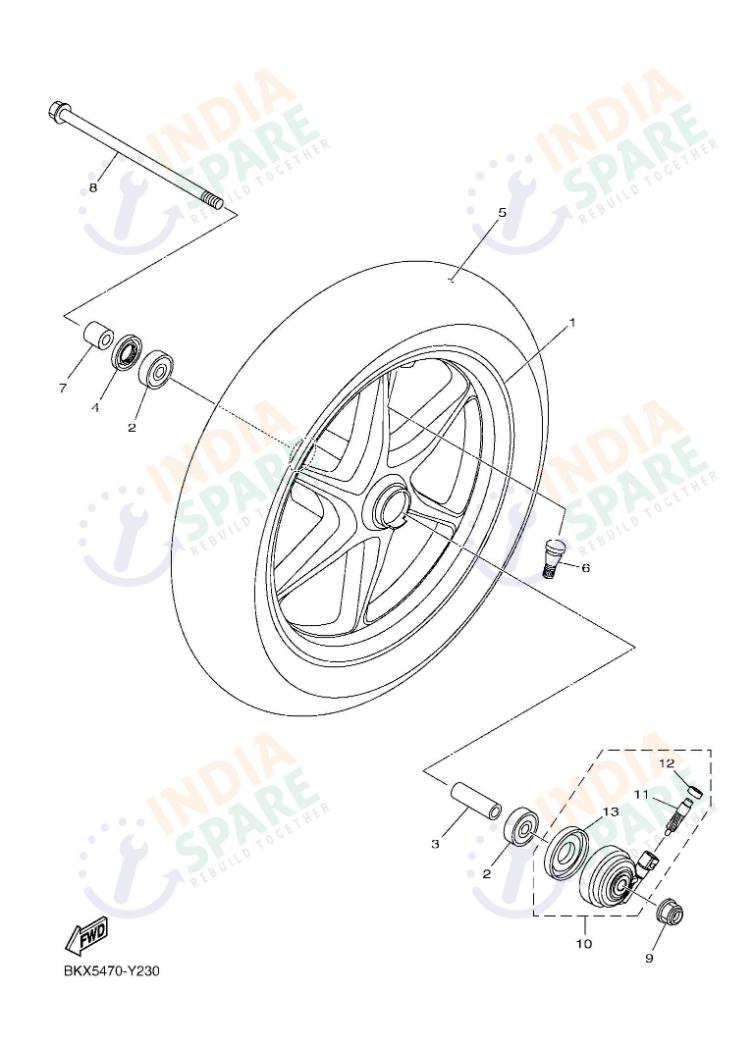

DG55
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B7JF51681233 | CAST WHEEL, FRONT | ₹ 3549 | 1 | ||
| 2 | 93306300YN00 | BEARING | ₹ 124 | 2 | ||
| 3 | 903871084100 | COLLAR | ₹ 73 | 1 | ||
| 4 | 931062081300 | OIL SEAL | ₹ 103 | 1 | ||
| 5A | 941091281700 | TIRE | ₹ 2138 | 1 | ||
| 5B | 941091281600 | TIRE (3.00-18 6PR) | ₹ 0 | 1 | ||
| 6 | 939000082400 | VALVE RIM | ₹ 19 | 1 | ||
| 7 | 903871085100 | COLLAR | ₹ 40 | 1 | ||
| 8 | 90105108C400 | BOLT FLANGE | ₹ 100 | 1 | ||
| 9 | 956021020000 | NUT U FLANGE | ₹ 32 | 1 | ||
| 10 | B7JF51900100 | GEAR UNIT ASSY | ₹ 204 | 1 | ||
| 11 | B7JF51381100 | GEAR METER | ₹ 22 | 1 | ||
| 12 | 1GCF51360000 | BUSH | ₹ 3 | 1 | ||
| 13 | B7JF511B0000 | SEAL OIL | ₹ 50 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - This Yamaha Fascino Front Wheel assembly is built for precision and strength. It features the Cast Wheel Front, premium Bearings, and durable Oil Seals for smooth hub rotation. The kit also includes the Gear Unit Assy and Meter Gear for accurate speedometer function. Original wheels are designed to withstand road impacts while maintaining their shape, providing a stable platform for your front tire and ensuring the safety of your front-end steering assembly.
