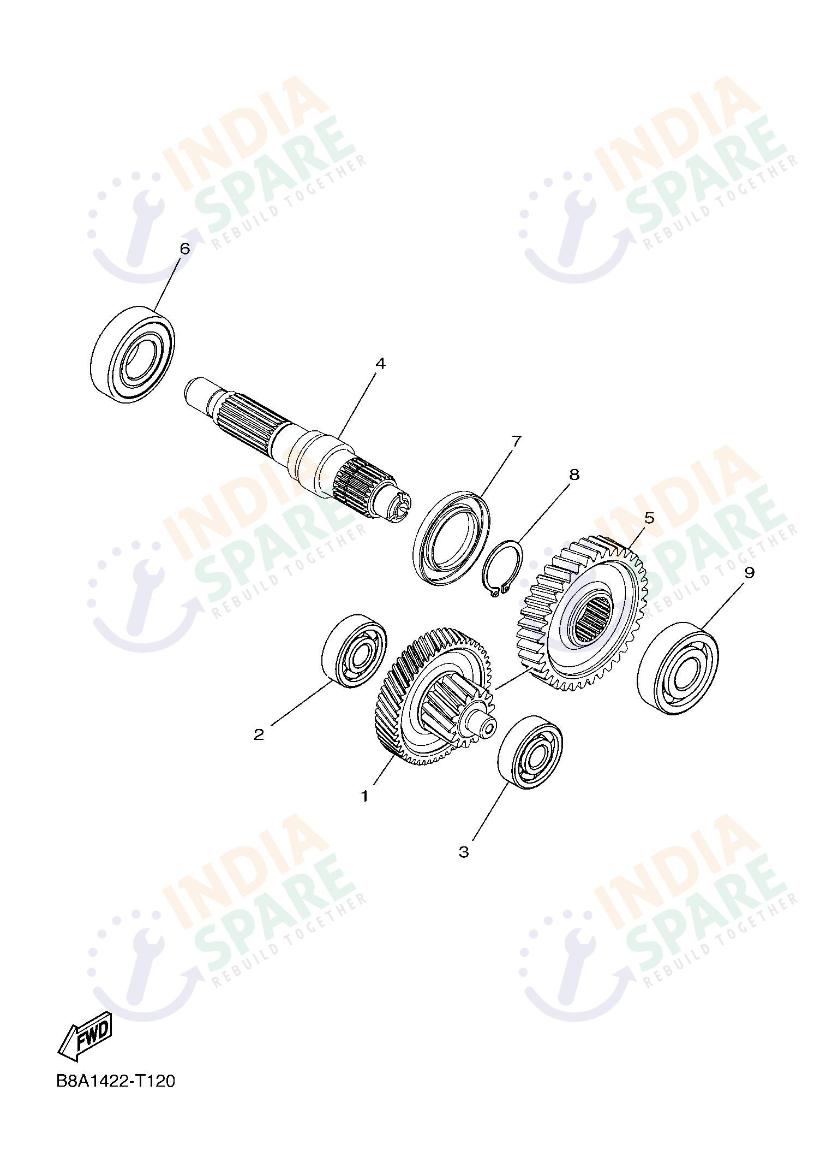

DG55
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B7JE74100000 | MAIN AXLE COMP. | ₹ 1121 | 1 | ||
| 2 | 93306302YV00 | BEARING | ₹ 180 | 1 | ||
| 3 | 93306351Y600 | BEARING | ₹ 94 | 1 | ||
| 4 | B7JE74210000 | AXLE DRIVE | ₹ 719 | 1 | ||
| 5 | B7JE72110000 | GEAR 1ST WHEEL | ₹ 625 | 1 | ||
| 6 | 93306272YB00 | BEARING | ₹ 264 | 1 | ||
| 7 | 931023080400 | OIL SEAL | ₹ 46 | 1 | ||
| 8 | 990092540000 | CIRCLIP | ₹ 11 | 1 | ||
| 9 | 93306303YY00 | BEARING | ₹ 237 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Smooth and quiet power transfer is guaranteed with the Yamaha Fascino Transmission assembly. This kit includes the Main Axle Comp, Drive Axle, and Gear 1st Wheel for the final drive. High-precision Bearings and Oil Seals are provided to maintain lubrication and prevent debris entry. Original transmission gears are manufactured with extreme precision to ensure perfect mesh, reducing noise and wear while maximizing the power delivered to the rear wheel.
