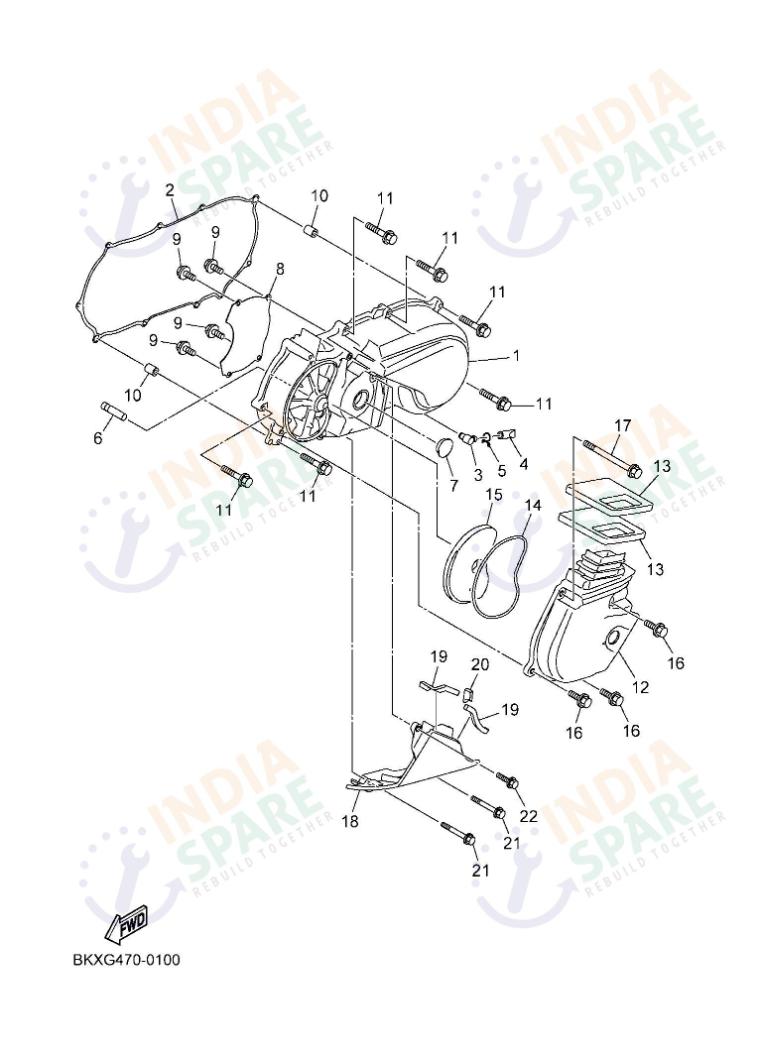

DG56
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B7JE54110000 | COVER CRANKCASE 1 | ₹ 1604 | 1 | ||
| 2 | B7JE54510000 | GASKET CRANKCASE COVER 1 | ₹ 207 | 1 | ||
| 3 | 1GCE53710000 | BREATHER | ₹ 3 | 1 | ||
| 4 | 1GCE443E0000 | PIPE, DRAIN | ₹ 4 | 1 | ||
| 5 | 904671110600 | CLIP | ₹ 10 | 1 | ||
| 6 | B5DE56590000 | SHAFT | ₹ 25 | 1 | ||
| 7 | B5DE51670000 | PLUG, BLIND 1 | ₹ 30 | 1 | ||
| 8 | B7JE51910000 | PLATE | ₹ 34 | 1 | ||
| 9 | 950220601000 | BOLT FLANGE | ₹ 15 | 4 | ||
| 10 | 918101480400 | PIN DOWEL | ₹ 7 | 2 | ||
| 11 | 950220603500 | BOLT FLANGE | ₹ 11 | 6 | ||
| 12 | BGPE54710000 | DUCT, AIR | ₹ 156 | 1 | ||
| 13 | B7JE54080000 | ELEMENT 2 | ₹ 42 | 2 | ||
| 14 | B7JE54720000 | SEAL AIR DUCT | ₹ 13 | 1 | ||
| 15 | B7JE54070000 | ELEMENT 1 | ₹ 64 | 1 | ||
| 16 | 958170602000 | BOLT FLANGE | ₹ 31 | 3 | ||
| 17 | 958120608000 | BOLT FLANGE | ₹ 17 | 1 | ||
| 18 | B7JE54130000 | COVER | ₹ 38 | 1 | ||
| 19 | 905200583800 | DAMPER PLATE | ₹ 8 | 2 | ||
| 20 | 905200583600 | DAMPER PLATE | ₹ 8 | 1 | ||
| 21 | 950220604500 | BOLT FLANGE | ₹ 13 | 2 | ||
| 22 | 950220602000 | BOLT FLANGE | ₹ 15 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Protect your engine’s internal drive with the Yamaha Fascino Crankcase Cover 1. This assembly includes the main Cover, the Crankcase Cover Gasket, and the Air Duct Element for proper cooling. It also features the Breather Pipe and various Dampers to reduce noise and vibration. All necessary Flange Bolts and Dowel Pins are included to ensure a perfect, leak-free seal. Genuine covers are essential for maintaining the correct internal environment for your belt system.
