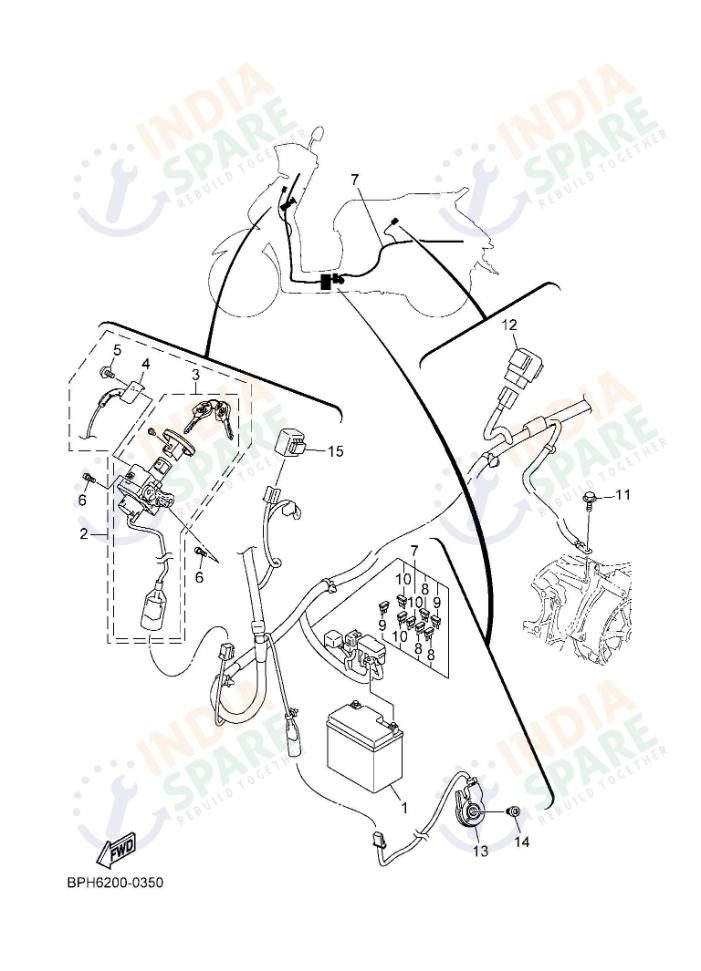

DG56
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BGPH21000000 | BATTERY ASSY | ₹ 0 | 1 | ||
| 2 | B7JXH2520000 | MAIN SWITCH SUB ASSY | ₹ 935 | 1 | ||
| 3 | B7JH252E0000 | MAIN SWITCH COMP. | ₹ 804 | 1 | ||
| 4 | B7JF478E0000 | CABLE SEAT LOCK | ₹ 158 | 1 | ||
| 5 | 9760N0521200 | PAN HEAD SCREW | ₹ 5 | 1 | ||
| 6 | 913320601400 | BOLT | ₹ 3 | 2 | ||
| 7 | BGPH25903000 | WIRE HARNESS ASSY | ₹ 5510 | 1 | ||
| 8 | B4GH21510000 | FUSE (7.5A) | ₹ 4 | 3 | ||
| 9 | BGPH21512000 | FUSE | ₹ 15 | 2 | ||
| 10 | BK7H21518000 | FUSE -2 AMP | ₹ 25 | 3 | ||
| 11 | 950220601200 | BOLT FLANGE | ₹ 8 | 1 | ||
| 12 | B44H19400000 | STARTER RELAY ASSY | ₹ 164 | 1 | ||
| 13 | B7JH25660000 | SWITCH SIDE STAND | ₹ 440 | 1 | ||
| 14 | 901100689300 | BOLT HEXAGON SOCKET HEAD | ₹ 10 | 1 | ||
| 15 | 5TSH33500100 | FLASHER RELAY | ₹ 160 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Power your scooter with confidence using the Yamaha Fascino Electrical 2 assembly. This kit includes the Battery Assy, Wire Harness Assy, and the Main Switch Sub Assy for total electrical control. It also features the Starter Relay and Side Stand Switch, along with all required Fuses. Genuine electrical components are tested for durability against vibration and moisture, ensuring that your scooter’s starting and safety systems function flawlessly every time you ride.
