DG56

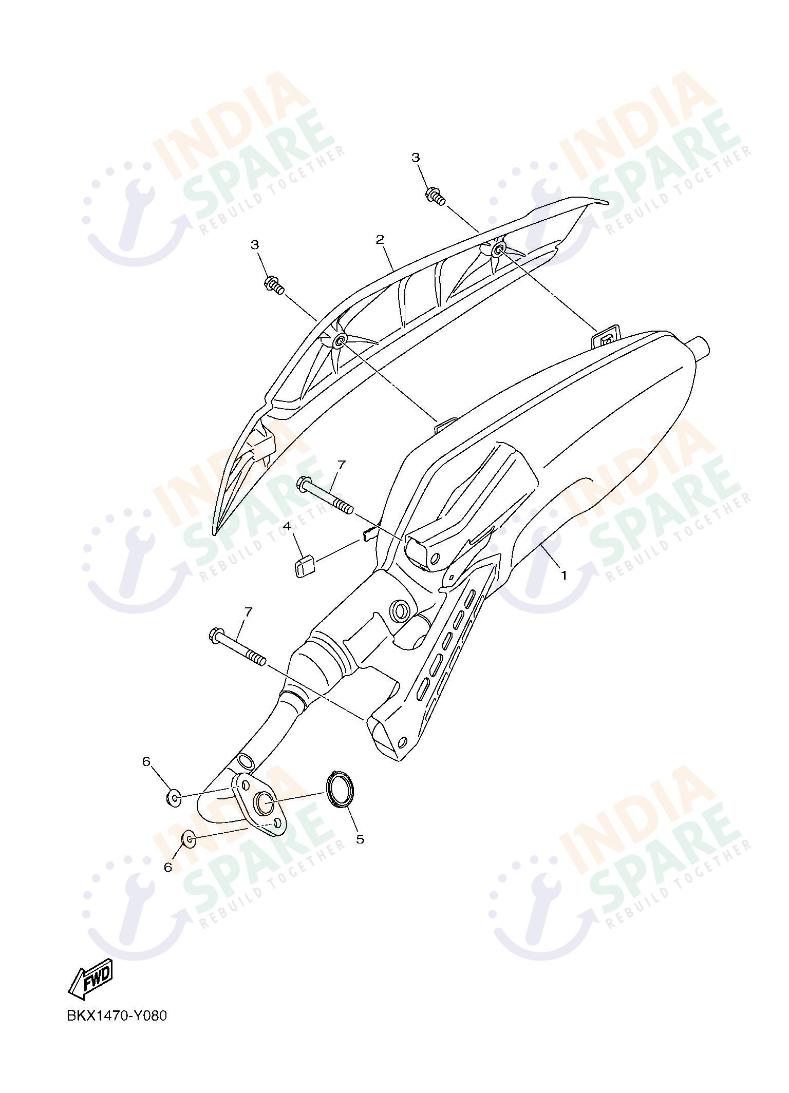

| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BGPE47110000 | MUFFLER 1 | ₹ 10260 | 1 | ||
| 2 | B7JE47180100 | PROTECTOR MUFFLER 1 | ₹ 248 | 1 | ||
| 3 | 958120601400 | BOLT FLANGE | ₹ 5 | 2 | ||
| 4 | 54BE47370000 | DAMPER MUFFLER | ₹ 7 | 1 | ||
| 5 | B7JE46130000 | GASKET, EXHAUST PIPE | ₹ 36 | 1 | ||
| 6 | 957070850000 | NUT FLANGE | ₹ 6 | 2 | ||
| 7 | 958120805500 | BOLT FLANGE | ₹ 12 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Maintain quiet operation and optimal backpressure with the Yamaha Fascino Exhaust assembly. This kit includes the Muffler 1 unit, the Exhaust Pipe, and the required Exhaust Gasket for a perfect seal. It also features a protective Muffler Guard and Damper Muffler to prevent heat damage and excessive vibration. Original exhaust systems are engineered to meet strict noise standards while providing the best possible performance and efficiency for your scooter.
