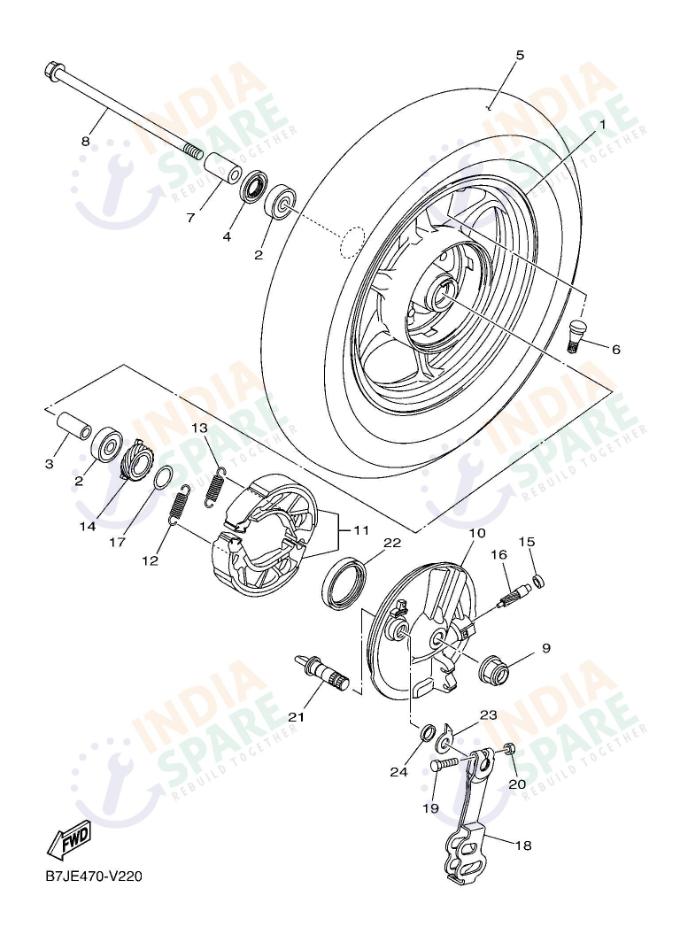

DG56
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B7JF51680233 | CAST WHEEL, FRONT | ₹ 3802 | 1 | ||
| 2 | 93306300YN00 | BEARING | ₹ 124 | 2 | ||
| 3 | 903871084600 | COLLAR | ₹ 76 | 1 | ||
| 4 | 931062081300 | OIL SEAL | ₹ 103 | 1 | ||
| 5A | 941091281700 | TIRE | ₹ 2138 | 1 | ||
| 5B | 941091281600 | TIRE (3.00-18 6PR) | ₹ 0 | 1 | ||
| 6 | 939000082400 | VALVE RIM | ₹ 19 | 1 | ||
| 7 | 903871084700 | COLLAR | ₹ 82 | 1 | ||
| 8 | 90105108C400 | BOLT FLANGE | ₹ 100 | 1 | ||
| 9 | 956021020000 | NUT U FLANGE | ₹ 32 | 1 | ||
| 10 | B7JF51210000 | PLATE BRAKE SHOE | ₹ 431 | 1 | ||
| 11 | 2RPWF536W000 | BRAKE SHOE SET | ₹ 366 | 1 | ||
| 12 | 905061200100 | SPRING TENSION (5YY) | ₹ 8 | 1 | ||
| 13 | 905061500100 | SPRING TENSION (5YY) | ₹ 8 | 1 | ||
| 14 | B7JF51350000 | GEAR DRIVE | ₹ 31 | 1 | ||
| 15 | 1GCF51360000 | BUSH | ₹ 3 | 1 | ||
| 16 | B7JF51380000 | GEAR METER | ₹ 22 | 1 | ||
| 17 | 902012080100 | WASHER SPACER | ₹ 5 | 1 | ||
| 18 | B7JF51550000 | LEVER CAMSHAFT 1 | ₹ 75 | 1 | ||
| 19 | 901010681400 | BOLT | ₹ 5 | 1 | ||
| 20 | 9530N0660000 | NUT | ₹ 1 | 1 | ||
| 21 | 1GCF51510000 | CAMSHAFT | ₹ 59 | 1 | ||
| 22 | 931054780100 | SEAL OIL | ₹ 16 | 1 | ||
| 23 | 36LF513A0000 | PLATE INDICATOR | ₹ 7 | 1 | ||
| 24 | 1GCF51590000 | SEAL CAMSHAFT | ₹ 3 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The Yamaha Fascino Front Wheel assembly is engineered for precision and safety. This package includes the Cast Wheel Front, durable Bearings, and Oil Seals to keep the hub protected from contaminants. Technical components like the Gear Drive and Bush for the Speedometer, along with the Brake Shoe Set and Camshaft, ensure your front end performs flawlessly. With genuine parts, you get the assurance of factory-tested durability and a perfect fit for your front suspension system.
