DG56

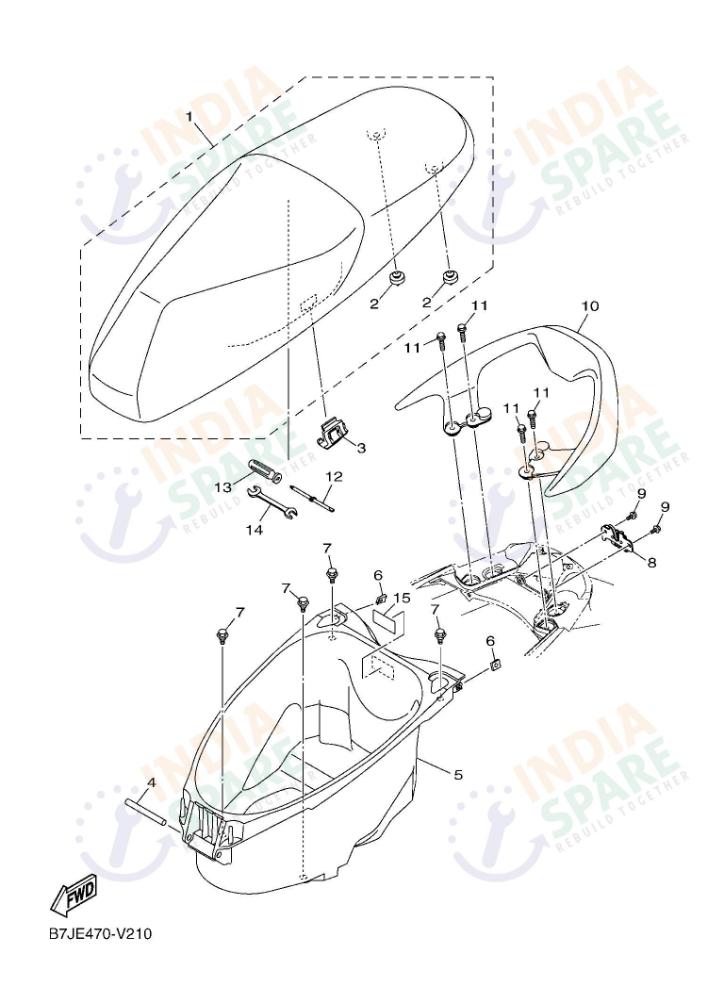

| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B7JF47302000 | DOUBLE SEAT ASSY | ₹ 2433 | 1 | ||
| 2 | 21CF47410000 | PAD SEAT | ₹ 14 | 2 | ||
| 3 | B7JF476A0000 | PLATE GUIDE 1 | ₹ 7 | 1 | ||
| 4 | B7JF47270000 | PIN SEAT FITTING | ₹ 13 | 1 | ||
| 5 | B7JF473R0100 | BOX 1 | ₹ 483 | 1 | ||
| 6 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 7 | 901090620200 | BOLT | ₹ 13 | 4 | ||
| 8 | B7JF47800000 | SEAT LOCK ASSY | ₹ 88 | 1 | ||
| 9 | 950220601000 | BOLT FLANGE | ₹ 15 | 2 | ||
| 10 | B7JF477301P1 | HANDLE, SEAT | ₹ 2230 | 1 | ||
| 11 | 975120652500 | BOLT WITH WASHER | ₹ 7 | 4 | ||
| 12 | 36LF81520000 | DRIVER PLUS MINUS | ₹ 11 | 1 | ||
| 13 | 36LF81511100 | GRIP DRIVER | ₹ 9 | 1 | ||
| 14 | 21CF81251000 | SPANNER 12-14 | ₹ 26 | 1 | ||
| 15 | B7JF16680000 | LABEL TIRE | ₹ 6 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Experience comfort with the Yamaha Fascino Double Seat Assy. This genuine seating solution includes the Pad Seat for ergonomic support and a durable base Plate with the Seat Lock Assy. The assembly comes complete with the Handle Seat and all necessary hardware like the Pin Seat Fitting and Bolt Flange. Also included is a basic tool kit with a Driver and Spanner for minor adjustments, ensuring you are always prepared for maintenance on the go.
