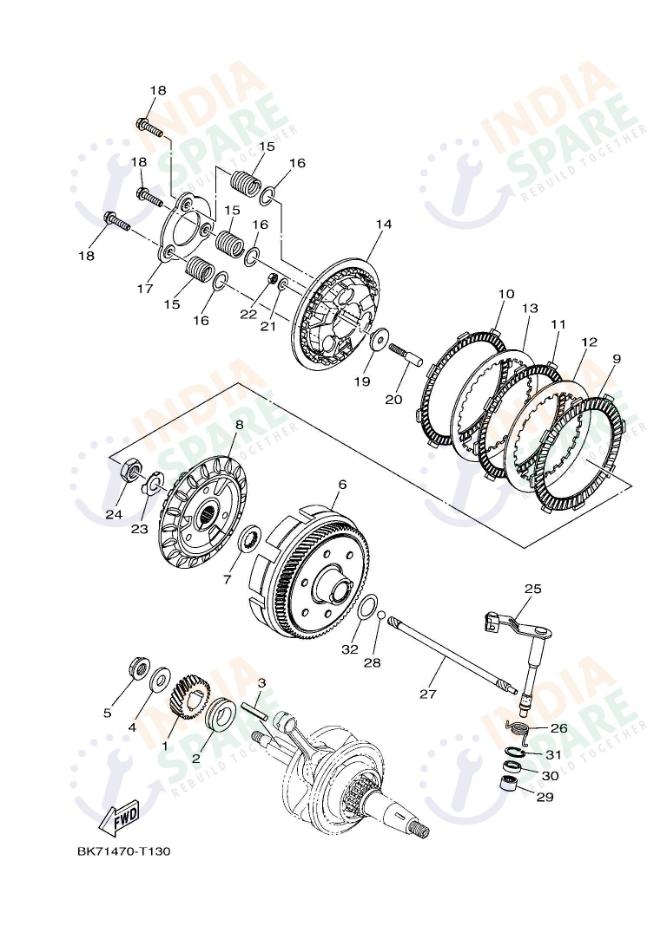

CLUTCH
DM43
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B0TE61113000 | GEAR, PRIMARY DRIVE | ₹ 340 | 1 | ||
| 2 | BK7E72580000 | COLLAR 1 | ₹ 45 | 1 | ||
| 3 | 38BE61930000 | KEY FEATHER | ₹ 48 | 1 | ||
| 4 | 902011283600 | WASHER PLATE | ₹ 40 | 1 | ||
| 5 | 901791281000 | NUT | ₹ 23 | 1 | ||
| 6 | BCWE61503000 | PRIMARY DRIVEN GEAR COMP. | ₹ 1885 | 1 | ||
| 7 | 21CE61540000 | PLATE THRUST 1 | ₹ 47 | 1 | ||
| 8 | BK7E63710000 | BOSS CLUTCH | ₹ 291 | 1 | ||
| 9 | BK7E63200000 | PLATE FRICTION 1 | ₹ 148 | 1 | ||
| 10 | BK7E63310000 | PLATE FRICTION 2 | ₹ 182 | 1 | ||
| 11 | BK7E63210000 | PLATE FRICTION | ₹ 278 | 1 | ||
| 12 | BK7E63250000 | PLATE CLUTCH 2 | ₹ 49 | 1 | ||
| 13 | BK7E63240000 | PLATE CLUTCH 1 | ₹ 56 | 1 | ||
| 14 | BK7E63510000 | PLATE PRESSURE 1 | ₹ 231 | 1 | ||
| 15 | BK7E63330000 | SPRING CLUTCH 1 | ₹ 20 | 3 | ||
| 16 | BK7E67740000 | WASHER | ₹ 20 | 3 | ||
| 17 | BK7E63520000 | PLATE PRESSURE 2 | ₹ 43 | 1 | ||
| 18 | BK7E63370000 | SCREW SPRING | ₹ 6 | 3 | ||
| 19 | 21CE63580000 | PLATE PUSH | ₹ 32 | 1 | ||
| 20 | 21CE63560100 | ROD PUSH 1 | ₹ 28 | 1 | ||
| 21 | 54BE61440000 | WASHER | ₹ 5 | 1 | ||
| 22 | 3C1E63440000 | NUT, ADJUSTING | ₹ 6 | 1 | ||
| 23 | 902151480200 | WASHER LOCK | ₹ 9 | 1 | ||
| 24 | 901701480100 | NUT | ₹ 9 | 1 | ||
| 25 | BK7E63800000 | PUSH LEVER ASSY | ₹ 100 | 1 | ||
| 26 | BK7E63450000 | SPRING RETURN | ₹ 6 | 1 | ||
| 27 | 38BE63570100 | ROD PUSH 2 | ₹ 141 | 1 | ||
| 28 | 935051684400 | BALL ( SIZE 7.937MM ) | ₹ 1 | 1 | ||
| 29 | 93315112Y900 | BEARING | ₹ 52 | 1 | ||
| 30 | 931021287700 | OIL SEAL PUSH LEVER | ₹ 12 | 1 | ||
| 31 | 990092050000 | CIRCLIP | ₹ 6 | 1 | ||
| 32 | 902082000300 | WASHER CONICAL SPRING | ₹ 39 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Check at IndiaSpare. Mastering every racetrack launch involves the high durability friction surfaces within our authentic Clutch catalog assembly designed for the performance oriented Yamaha R15M machine. This essential group contains every part for a clutch rebuild including the primary Clutch Boss plus specialized Friction Plate sets plus original Pressure Plates. Within this section containing original Coil Springs alongside Pushing Rod kits plus every required Nut plus Washer unit we offer total transmission disconnect solutions. Using genuine clutch spares provides exact friction coefficients required for prevent power slipping while protecting the transmission during rapid downshifting in urban India. Yamaha R15M riders enjoy the Assist plus Slipper technology provided by authentic hardware which significantly reduces efforts at handle during repetitive gear changes. Preserve the crisp engagement plus acceleration characteristics of your sportbike by investing in official factory clutch sets designed for ultimate heat resistance. View at IndiaSpare.
