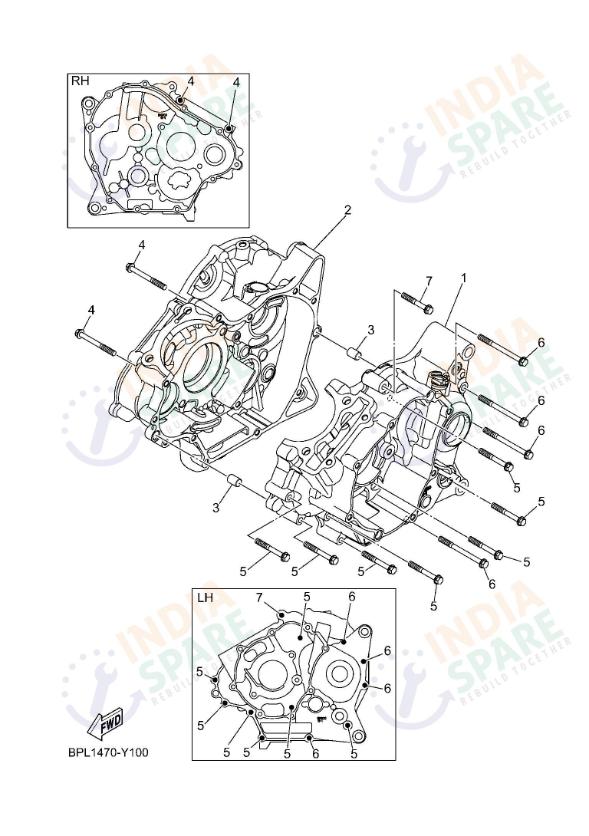

CRANKCASE
DM43
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BK7E51110000 | CRANKCASE 1 | ₹ 2762 | 1 | ||
| 2 | BK7E51210200 | CRANKCASE 2 | ₹ 2774 | 1 | ||
| 3 | 918101480900 | PIN DOWEL | ₹ 10 | 2 | ||
| 4 | 950220605500 | BOLT FLANGE | ₹ 13 | 2 | ||
| 5 | 950220604500 | BOLT FLANGE | ₹ 13 | 7 | ||
| 6 | 950220607000 | BOLT FLANGE | ₹ 24 | 4 | ||
| 7 | 950220604000 | BOLT FLANGE | ₹ 18 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Discover at IndiaSpare. The foundational backbone of every combustion cycle resides within the heavy duty high tech engineering of our official Crankcase catalog assembly for your Yamaha R15M. This section contains the primary original Crankcase One plus Two blocks required for absolute structural engine restoration in our Indian workshop environments. Every casting including original Dowel Pins plus various high strength Flange Bolts provided ensures perfect internal bearing alignment plus a complete airtight pressure seal across thousands of kilometers. Genuine crankcases are manufactured using specialized high heat dissipating alloys designed specifically for surviving extreme thermal stress of high revving motor cycles in hot Indian urban traffic conditions. Yamaha R15M enthusiasts understand that maintaining the core motor structural block with authentic parts is critical for long term road safety plus preventing mechanical vibration during rides. Protect the core of your sportbike engine now by selecting official structural units. Lock at IndiaSpare.
