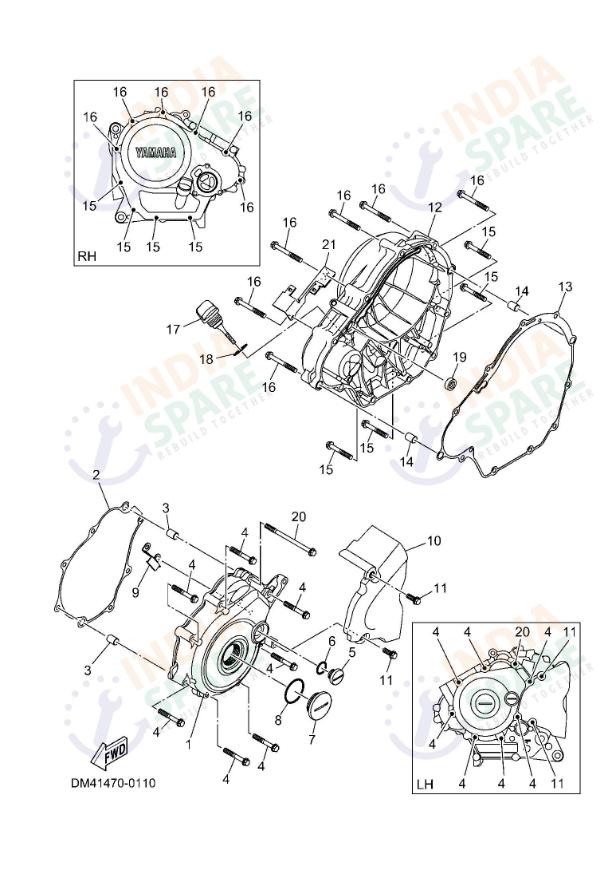

CRANKCASE COVER 1
DM43
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BK7E54110000 | COVER CRANKCASE 1 | ₹ 497 | 1 | ||
| 2 | B0TE54510000 | GASKET CRANKCASE COVER 1 | ₹ 18 | 1 | ||
| 3 | 918101480900 | PIN DOWEL | ₹ 10 | 2 | ||
| 4 | 950220604000 | BOLT FLANGE | ₹ 18 | 7 | ||
| 5 | 903401482400 | PLUG STRAIGHT SCREW-MATBLACK2 | ₹ 18 | 1 | ||
| 6 | 932101481200 | O-RING | ₹ 11 | 1 | ||
| 7 | 903403282300 | PLUG STRAIGHT SCREW-MATBLACK 2 | ₹ 18 | 1 | ||
| 8 | 932103281300 | O-RING | ₹ 18 | 1 | ||
| 9 | 2PVE51130000 | PLATE | ₹ 9 | 1 | ||
| 10 | BK7E54180000 | COVER CHAIN CASE | ₹ 177 | 1 | ||
| 11 | 950220601600 | BOLT FLANGE | ₹ 11 | 2 | ||
| 12 | BK7E54210000 | COVER CRANKCASE 2 | ₹ 899 | 1 | ||
| 13 | B0TE54610000 | GASKET CRANKCASE COVER 2 | ₹ 252 | 1 | ||
| 14 | 918101480900 | PIN DOWEL | ₹ 10 | 2 | ||
| 15 | 950220604000 | BOLT FLANGE | ₹ 18 | 4 | ||
| 16 | 950220605000 | BOLT FLANGE | ₹ 17 | 6 | ||
| 17 | BK7E53620000 | PLUG OIL LEVEL | ₹ 31 | 1 | ||
| 18 | 932101980900 | O RING | ₹ 4 | 1 | ||
| 19 | 931011080500 | OIL SEAL | ₹ 28 | 1 | ||
| 20 | 950220609000 | BOLT FLANGE | ₹ 27 | 1 | ||
| 21 | BGMH18450000 | PLATE | ₹ 46 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Browse at IndiaSpare. Sealed for performance while protecting every internal moving gear involves precision components inside the Crankcase Cover catalog assembly provided for your Yamaha R15M. This critical section features every required external cover piece along with original Gasket kits for Crankcase covers One plus Two today. Every detailed collection including high visibility Oil Level plugs alongside various specialized Bolts plus authentic O-Rings ensures a perfect seal against contaminants plus moisture throughout India. Precision Oil Seals plus Plate components included here prevent engine oil from escaping during high RPM journeys while maintaining a clean look for your beautiful high performance machine. Owners of the Yamaha R15M choose these original cover sets because they provide the exact pressure fitment required to maintain engine oil pressure plus silent gearbox operation for several years. Keep your motor perfectly sealed plus aesthetically perfect with authorized factory covers. Discover at IndiaSpare.
