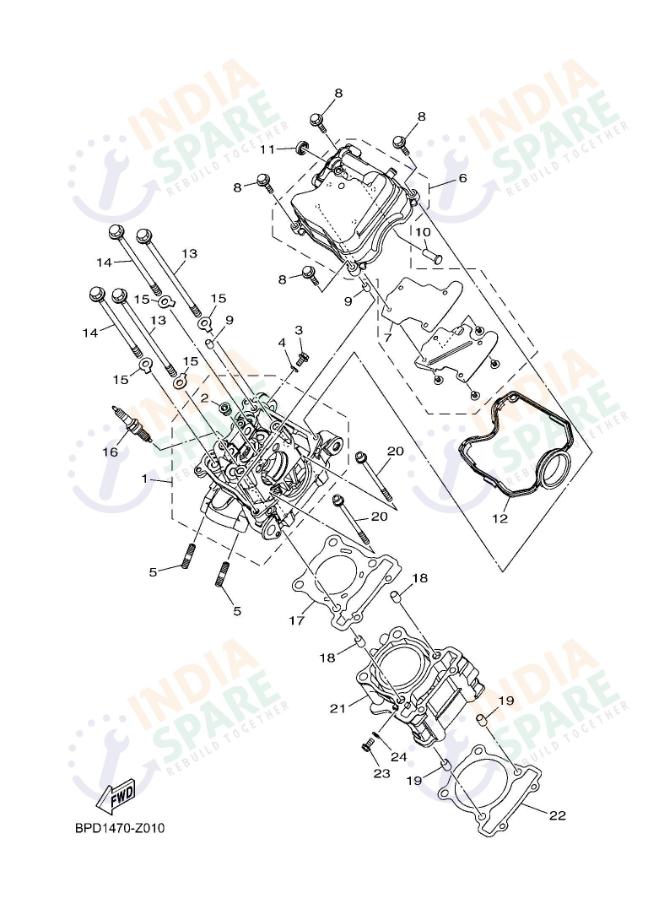

CYLINDER HEAD
DM43
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B0TE11021000 | CYLINDER HEAD ASSY | ₹ 5171 | 1 | ||
| 2 | 903401281300 | PLUG STRAIGHT SCREW | ₹ 55 | 1 | ||
| 3 | 950220601000 | BOLT FLANGE | ₹ 15 | 1 | ||
| 4 | 904300681700 | GASKET | ₹ 8 | 1 | ||
| 5 | 956120861800 | BOLT STUD | ₹ 15 | 2 | ||
| 6 | BK7E11900000 | COVER CYLINDER HEAD 1 | ₹ 558 | 1 | ||
| 7 | BK7E11690000 | GASKET BREATHER COVER | ₹ 20 | 1 | ||
| 8 | 950220603000 | BOLT FLANGE | ₹ 14 | 4 | ||
| 9 | 995300801200 | PIN DOWEL | ₹ 23 | 2 | ||
| 10 | BCWE132G0000 | ROD 1 | ₹ 106 | 1 | ||
| 11 | 931020880000 | OIL SEAL | ₹ 142 | 1 | ||
| 12 | BK7E11930000 | GASKET HEAD COVER 1 | ₹ 148 | 1 | ||
| 13 | 90105088J700 | BOLT FLANGE | ₹ 95 | 2 | ||
| 14 | 90105088J600 | BOLT FLANGE | ₹ 88 | 2 | ||
| 15 | BLVE113F0000 | PLATE 3 | ₹ 35 | 4 | ||
| 16 | 947030043900 | PLUG SPARK | ₹ 245 | 1 | ||
| 17 | B0TE11810000 | GASKET CYLINDER HEAD 1 | ₹ 350 | 1 | ||
| 18 | 918101480900 | PIN DOWEL | ₹ 10 | 2 | ||
| 19 | 918101480900 | PIN DOWEL | ₹ 10 | 2 | ||
| 20 | 901100637800 | BOLT HEXAGON SOCKET HEAD | ₹ 176 | 2 | ||
| 21 | BCWE13110100 | CYLINDER | ₹ 0 | 1 | ||
| 22 | B0TE13510000 | GASKET CYLINDER | ₹ 82 | 1 | ||
| 23 | 950220601000 | BOLT FLANGE | ₹ 15 | 1 | ||
| 24 | 904300681700 | GASKET | ₹ 8 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Get it at IndiaSpare. Commanding the primary combustion chamber involves using the original structural components inside our official Cylinder Head catalog assembly designed for your sophisticated Yamaha R15M machine. This specific section features every part for top end rebuilds including primary Cylinder Head blocks along with specialized Spark Plugs plus original Gasket Head covers meant for India. Included are the essential Head Gaskets alongside high visibility Studs plus Pin Dowel kits plus authentic Oil Seals for Maintaining high compression on tarmac. Precision casting within the original head provides superior thermal management plus ensuring your motor stays powerful even during high rev loads of city traffic. Yamaha R15M owners prioritize authorized factory heads because they offer the exact porting geometry intended by designers for maximizing power throughout various riding rev ranges. Secure your top end reliability today. Purchase at IndiaSpare.
