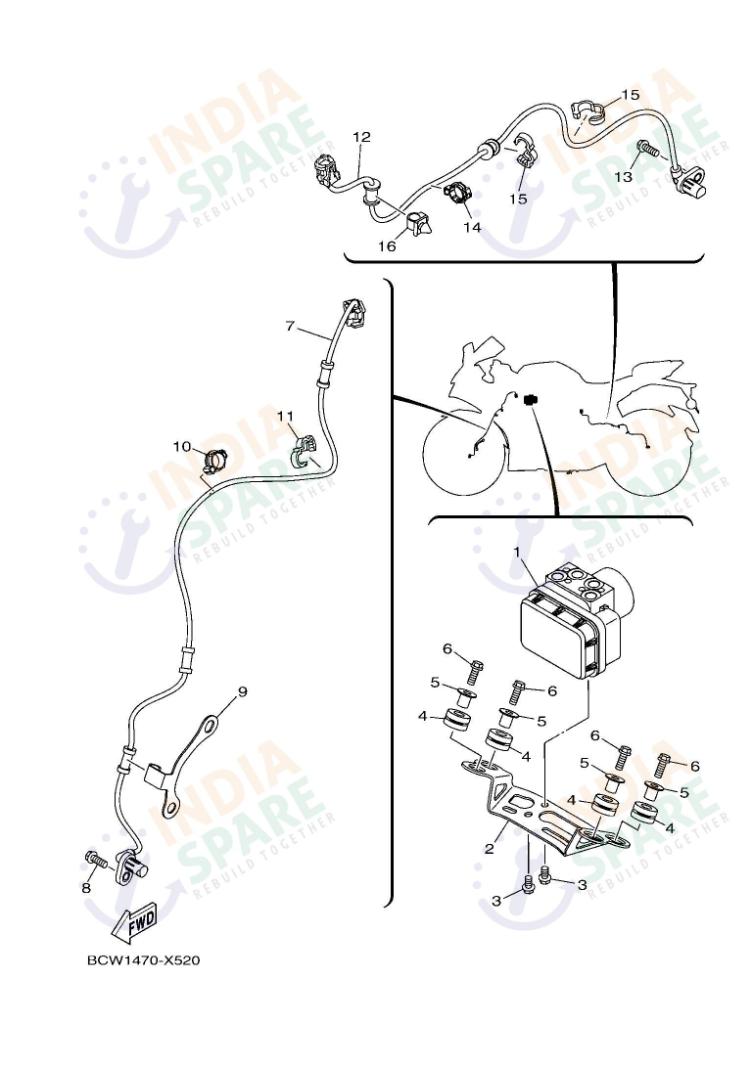

ELECTRICAL 3
DM43
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BPDH59300900 | HYDRAULIC UNIT ASSY | ₹ 14950 | 1 | ||
| 2 | B9EH59910000 | BRACKET UNIT | ₹ 61 | 1 | ||
| 3 | 950220601000 | BOLT FLANGE | ₹ 15 | 2 | ||
| 4 | 904801422900 | GROMMET | ₹ 9 | 4 | ||
| 5 | 90387068N800 | COLLAR | ₹ 13 | 4 | ||
| 6 | 950220602000 | BOLT FLANGE | ₹ 15 | 4 | ||
| 7 | B0TH59700100 | WHEEL SENSOR ASSY, FRONT | ₹ 1300 | 1 | ||
| 8 | 950220601600 | BOLT FLANGE | ₹ 11 | 1 | ||
| 9 | BCWF33180000 | HOLDER CABLE 1 | ₹ 34 | 1 | ||
| 10 | 904641201300 | CLAMP | ₹ 120 | 1 | ||
| 11 | 904641401000 | CLAMP | ₹ 70 | 1 | ||
| 12 | BPDH59800100 | WHEEL SENSOR ASSY, REAR | ₹ 1255 | 1 | ||
| 13 | 950220601600 | BOLT FLANGE | ₹ 11 | 1 | ||
| 14 | 904641201300 | CLAMP | ₹ 120 | 1 | ||
| 15 | 904641401000 | CLAMP | ₹ 70 | 2 | ||
| 16 | 904641080000 | CLAMP | ₹ 127 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Only at IndiaSpare. The high technology electrical heartbeat of the Yamaha R15M depends on the absolute precision found within the Electrical Three catalog assembly gear for your bike. Providing superior signal stability for the advanced safety systems requires original items including the primary Hydraulic Unit Assy plus robust Brackets alongside the sensitive Wheel Sensor Assy kits. Indian enthusiasts riding the Yamaha R15M through unpredictable city traffic or rainy highways trust these authentic Wheel Sensor front plus Rear components for accurate braking telemetry. Every specialized Bolt Flange plus Grommet plus Collar found within this assembly undergoes intense quality testing meant for providing a rattle free electronic mounting experience for years. Securing these official factory spares preserves diagnostic health plus track level performance that characterizes the legendary R15 heritage today. Purchase genuine electronic modules to maintain absolute confidence in advanced motion sensors while leaning into corners. Get it at IndiaSpare.
