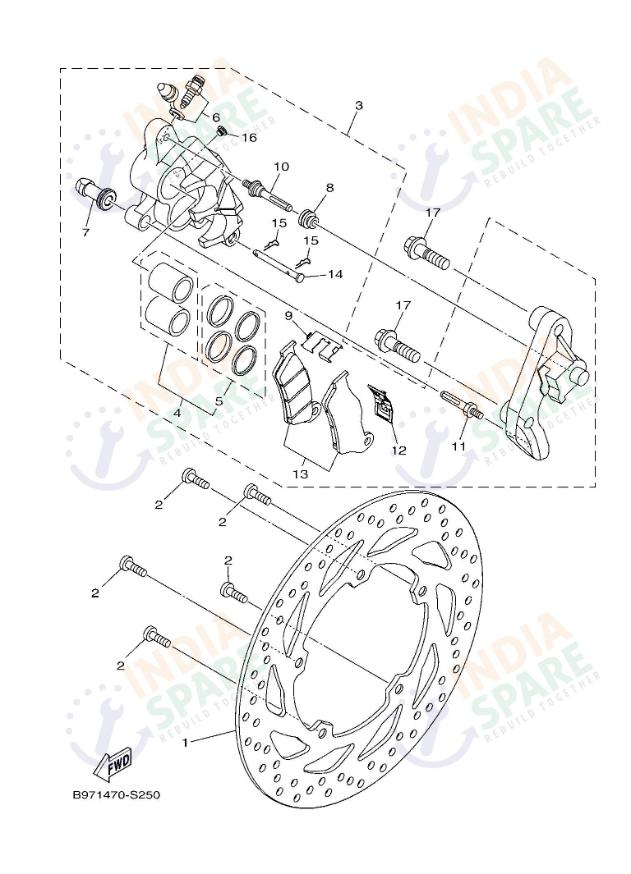

FRONT BRAKE CALIPER
DM43
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B97F582U0000 | DISC BRAKE (RIGHT) | ₹ 1280 | 1 | ||
| 2 | 901110802900 | BOLT HEX. SOCKET BUTTON | ₹ 11 | 5 | ||
| 3 | BCWF580U0000 | CALIPER ASSY (RIGHT) | ₹ 2014 | 1 | ||
| 4 | 54BW00570000 | PISTON ASSY CALIPER | ₹ 557 | 1 | ||
| 5 | 54BW00470000 | CALIPER SEAL SET | ₹ 99 | 1 | ||
| 6 | 5USW00480000 | BLEED SCREW SET | ₹ 27 | 1 | ||
| 7 | 54BF59370000 | BOOT 2 | ₹ 27 | 1 | ||
| 8 | 54BF59170000 | BOOT CALIPER | ₹ 23 | 1 | ||
| 9 | 54BF59390000 | CLIP PAD | ₹ 11 | 1 | ||
| 10 | 54BF59140000 | PIN SLIDE | ₹ 27 | 1 | ||
| 11 | 54BF59260000 | BOLT | ₹ 26 | 1 | ||
| 12 | 54BF59190000 | SUPPORT PAD | ₹ 28 | 1 | ||
| 13 | B97W00450000 | BRAKE PAD SET | ₹ 425 | 1 | ||
| 14 | 54BF59240000 | PIN PAD | ₹ 35 | 1 | ||
| 15 | 54BF59250000 | CLIP | ₹ 10 | 2 | ||
| 16 | 54BF59160000 | PLUG | ₹ 6 | 1 | ||
| 17 | 901051031900 | BOLT FLANGE | ₹ 40 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Order at IndiaSpare. Massive frontal bite combined with total hydraulic reliability defines the potential of your machine whenever you dive into corners using the Yamaha R15M. Our Front Brake Caliper catalog assembly contains the original primary Caliper Assy gear plus specialized Brake Pad sets plus authentic Piston plus Seal kits. Precision hardware including Pin Slid kits plus Bleed Screws plus Support Pad clips ensures that your braking surfaces stay perfectly aligned for immediate deceleration in traffic. Every authentic Brake Pad features specialized compounds meant for providing maximum grip plus heat dissipation to prevent brake fade during repetitive racing use on Indian tarmac. Yamaha R15M pilots value these authorized components because they prevent fluid leaks while providing consistent lever feel needed for road confidence. Original Pins plus specialized Plug plus Bolt units ensure that the caliper assembly stays silent plus remains durable across thousands of high speed braking cycles. Available at IndiaSpare.
