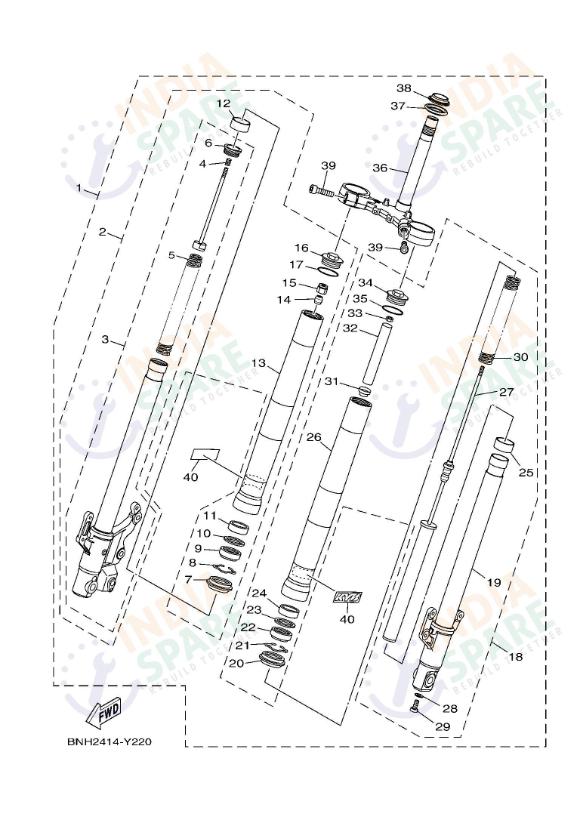

FRONT FORK
DM43
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BCWF31000000 | FRONT FORK ASSY | ₹ 20285 | 1 | ||
| 2 | BCWF31030000 | FRONT FORK ASSY (R.H) | ₹ 10997 | 1 | ||
| 3 | BCWF31200000 | INNER TUBE COMP.2 | ₹ 2971 | 1 | ||
| 4 | BCWF22220000 | SPRING SHOCK ABSORBER 2 | ₹ 27 | 1 | ||
| 5 | BCWF31410000 | SPRING FRONT FORK | ₹ 302 | 1 | ||
| 6 | BCWF319U0000 | CAP | ₹ 97 | 1 | ||
| 7 | B48F31440000 | SEAL DUST | ₹ 240 | 1 | ||
| 8 | BCWF31530000 | RING SNAP | ₹ 25 | 1 | ||
| 9 | BK6F31450000 | OIL SEAL | ₹ 313 | 1 | ||
| 10 | BCWF31490000 | WASHER SPRING UPPER | ₹ 34 | 1 | ||
| 11 | BCWF31250000 | METAL SLIDE 1 | ₹ 94 | 1 | ||
| 12 | BCWF31710000 | PISTON FRONT FORK | ₹ 120 | 1 | ||
| 13 | BCWF31260000 | TUBE OUTER | ₹ 4053 | 1 | ||
| 14 | BCWF332K0000 | BUMP, STOP | ₹ 37 | 1 | ||
| 15 | BCWF33930000 | NUT, SPECIAL | ₹ 93 | 1 | ||
| 16 | BCWF31110000 | BOLT CAP | ₹ 361 | 1 | ||
| 17 | BCWF31880000 | O-RING | ₹ 36 | 1 | ||
| 18 | BCWF31020000 | FRONT FORK ASSY (L.H) | ₹ 10997 | 1 | ||
| 19 | BCWF31100000 | INNER TUBE COMP.1 | ₹ 2971 | 1 | ||
| 20 | B48F31440000 | SEAL DUST | ₹ 240 | 1 | ||
| 21 | BCWF31530000 | RING SNAP | ₹ 25 | 1 | ||
| 22 | BK6F31450000 | OIL SEAL | ₹ 313 | 1 | ||
| 23 | BCWF31490000 | WASHER SPRING UPPER | ₹ 34 | 1 | ||
| 24 | BCWF31250000 | METAL SLIDE 1 | ₹ 94 | 1 | ||
| 25 | BCWF31710000 | PISTON FRONT FORK | ₹ 120 | 1 | ||
| 26 | BCWF31260000 | TUBE OUTER | ₹ 4053 | 1 | ||
| 27 | BCWF31700000 | CYLINDER COMP. FRONT FORK | ₹ 2112 | 1 | ||
| 28 | 2FSF31580000 | GASKET | ₹ 15 | 1 | ||
| 29 | BCWF31810000 | BOLT HEXAGON SOCKET HEAD | ₹ 36 | 1 | ||
| 30 | BCWF31410000 | SPRING FRONT FORK | ₹ 302 | 1 | ||
| 31 | BCWF31170000 | GUIDE, SPRING | ₹ 39 | 1 | ||
| 32 | BCWF31180000 | SPACER | ₹ 85 | 1 | ||
| 33 | BCWF33570000 | NUT | ₹ 24 | 1 | ||
| 34 | BCWF31110000 | BOLT CAP | ₹ 361 | 1 | ||
| 35 | BCWF31880000 | O-RING | ₹ 36 | 1 | ||
| 36 | BCWF33400000 | UNDER BRACKET COMP. | ₹ 2544 | 1 | ||
| 37 | 5YYF34620000 | SEAL DUST STEERING | ₹ 23 | 1 | ||
| 38 | 2FBF38750000 | .BEARING, STEERING LOWER | ₹ 0 | 1 | ||
| 39 | BCWF33460000 | BOLT 1 | ₹ 55 | 2 | ||
| 40 | BCWF31080000 | EMBLEM | ₹ 48 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Get it at IndiaSpare. Master the asphalt by Maintaining the high precision suspension technology found in the Front Fork catalog assembly built specifically for the original Yamaha R15M. This detailed catalog features every essential part for a rebuild including Inner plus Outer Tube units plus specialized Fork Springs plus Oil Seal kits today. Every Dust Seal kit along with original Snap Rings plus Piston gear plus Cylinder components ensures that the fork damping stays smooth plus consistent across various Indian terrains. Covering both the Right plus Left hand assemblies we offer every specialized Nut plus O-Ring plus Bolt required for Maintaining the hydraulic performance of the bike. Genuine Yamaha R15M forks provide the necessary damping response for maintaining high velocity cornering lines while Protecting the front tire against skipping during heavy braking maneuvers. Maintain high tech front end stability with authentic factory fork seals plus hardware built for durability. Purchase at IndiaSpare.
