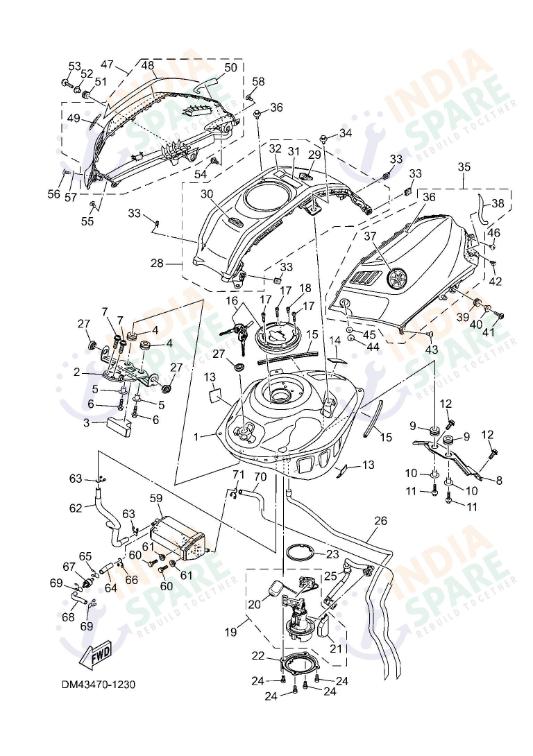

FUEL TANK
DM43
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B0TF41100000 | FUEL TANK COMP. | ₹ 3446 | 1 | ||
| 2 | BK7F412Y0000 | BRKT. TANK FITTING FR. | ₹ 177 | 1 | ||
| 3 | BK7F41810000 | DAMPER LOCATING 1 | ₹ 55 | 1 | ||
| 4 | 904801536300 | GROMMET | ₹ 110 | 2 | ||
| 5 | 90387068B200 | COLLAR | ₹ 11 | 2 | ||
| 6 | 901050616900 | BOLT FLANGE | ₹ 5 | 2 | ||
| 7 | 901100883900 | BOLT HEXAGON SOCKET HEAD | ₹ 15 | 2 | ||
| 8 | BCWF41910000 | BRACKET FUEL TANK 1 | ₹ 216 | 1 | ||
| 9 | 904801536300 | GROMMET | ₹ 110 | 2 | ||
| 10 | 90387068B200 | COLLAR | ₹ 11 | 2 | ||
| 11 | 901050616900 | BOLT FLANGE | ₹ 5 | 2 | ||
| 12 | 901100621500 | BOLT HEXAGON SOCKET HEAD | ₹ 19 | 2 | ||
| 13 | 905200280600 | DAMPER PLATE | ₹ 8 | 2 | ||
| 14 | 905200201200 | SEAT PIPE | ₹ 17 | 1 | ||
| 15 | BK7F12780000 | MOLD | ₹ 21 | 2 | ||
| 16 | BK7WF4610100 | CAP ASSY WITH LOCK | ₹ 1255 | 1 | ||
| 17 | 901100580600 | BOLT HEXAGON SOCKET HEAD | ₹ 12 | 3 | ||
| 18 | 913320501000 | BOLT | ₹ 2 | 1 | ||
| 19 | B0TE39070100 | FUEL PUMP COMP. | ₹ 6072 | 1 | ||
| 20 | B0TH57520000 | SENDER UNIT ASSY FUEL METER | ₹ 878 | 1 | ||
| 21 | B7JE39150000 | FILTER | ₹ 211 | 1 | ||
| 22 | B0TF44910000 | BRACKET FUEL PUMP | ₹ 90 | 1 | ||
| 23 | 2GSF414G0100 | SEAL | ₹ 160 | 1 | ||
| 24 | 913320501000 | BOLT | ₹ 2 | 4 | ||
| 25 | B0TE39710000 | PIPE FUEL 1 | ₹ 523 | 1 | ||
| 26 | BK7F43120000 | PIPE 2 | ₹ 56 | 1 | ||
| 27 | 904800155800 | GROMMET | ₹ 10 | 3 | ||
| 28 | DM4XF41G00P0 | COVER, TANK | ₹ 0 | 1 | FOR WMC | |
| 29 | BGNF42440000 | GRAPHIC, FUEL TANK 1 | ₹ 100 | 1 | ||
| 30 | BDJF173B0000 | EMBLEM 3D | ₹ 544 | 1 | ||
| 31 | B97F15680000 | LABEL WARNING | ₹ 9 | 1 | ||
| 32 | BGPF817K0000 | LABEL FUEL | ₹ 10 | 1 | ||
| 33 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 34 | 90109068B200 | BOLT | ₹ 13 | 2 | ||
| 35 | DM4XF41200P3 | TANK SIDE COVER 1 | ₹ 2080 | 1 | FOR WMC | |
| 36 | DM4F42460000 | GRAPHIC 3 | ₹ 100 | 1 | ||
| 37 | B74F414B1000 | EMBLEM | ₹ 260 | 1 | ||
| 38 | BCWF414G0000 | SEAL | ₹ 18 | 1 | ||
| 39 | 904801280500 | GROMMET | ₹ 8 | 1 | ||
| 40 | 903870689900 | COLLAR | ₹ 30 | 1 | ||
| 41 | 901590501100 | SCREW WITH WASHER | ₹ 70 | 1 | ||
| 42 | 901090501400 | BOLT | ₹ 15 | 1 | ||
| 43 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 44 | 901600581200 | SCREW ROUND TAPPING | ₹ 10 | 1 | ||
| 45 | 902020518000 | WASHER PLATE | ₹ 28 | 1 | ||
| 46 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 47 | DM4XF41300P3 | TANK SIDE COVER 2 | ₹ 2080 | 1 | FOR WMC | |
| 48 | DM4F42470000 | GRAPHIC | ₹ 100 | 1 | ||
| 49 | B74F414B1000 | EMBLEM | ₹ 260 | 1 | ||
| 50 | BCWF414E0000 | SEAL 2 | ₹ 18 | 1 | ||
| 51 | 904801280500 | GROMMET | ₹ 8 | 1 | ||
| 52 | 903870689900 | COLLAR | ₹ 30 | 1 | ||
| 53 | 901590501100 | SCREW WITH WASHER | ₹ 70 | 1 | ||
| 54 | 901090501400 | BOLT | ₹ 15 | 1 | ||
| 55 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 56 | 901600581200 | SCREW ROUND TAPPING | ₹ 10 | 1 | ||
| 57 | 902020518000 | WASHER PLATE | ₹ 28 | 1 | ||
| 58 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 59 | 2FBF41701100 | CANISTER ASSY | ₹ 505 | 1 | ||
| 60 | 970120601400 | BOLT | ₹ 5 | 2 | ||
| 61 | 903870604800 | COLLAR | ₹ 7 | 2 | ||
| 62 | B9EF43130000 | PIPE 3 | ₹ 60 | 1 | ||
| 63 | 904670900600 | CLIP | ₹ 5 | 2 | ||
| 64 | BCWF43140000 | PIPE 4 | ₹ 12 | 1 | ||
| 65 | 904671100900 | CLIP | ₹ 37 | 1 | ||
| 66 | 904670900600 | CLIP | ₹ 5 | 1 | ||
| 67 | B7JF44210100 | VALVE, CHECK | ₹ 115 | 1 | ||
| 68 | BCWF43160000 | PIPE 6 | ₹ 12 | 1 | ||
| 69 | 904670900600 | CLIP | ₹ 5 | 2 | ||
| 70 | 2FBF43150000 | PIPE 5 | ₹ 25 | 1 | ||
| 71 | 90467100A100 | CLIP | ₹ 3 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
