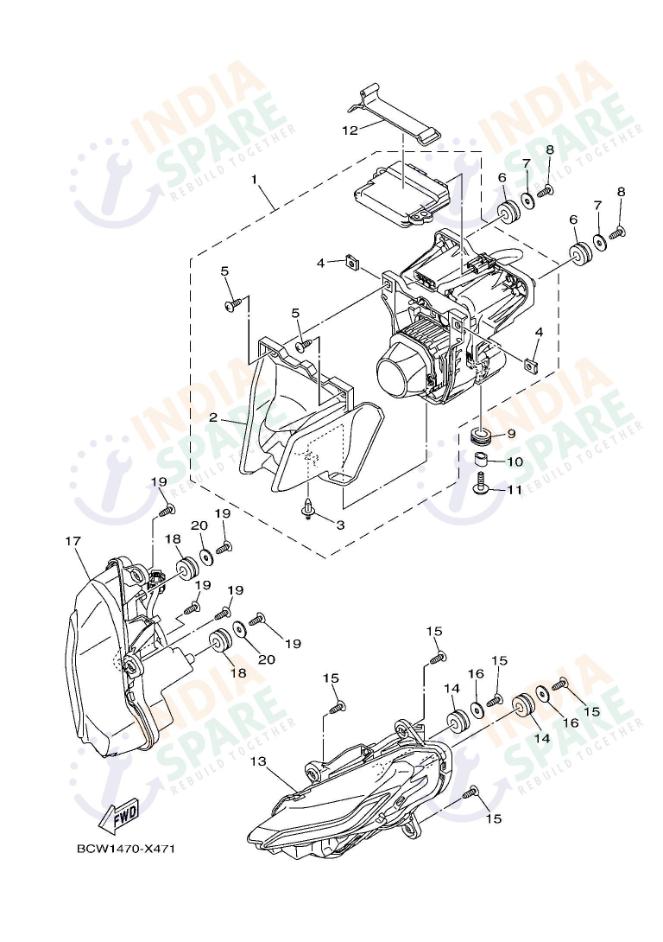

HEADLIGHT
DM43
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BCWH43000200 | HEADLIGHT ASSY | ₹ 13995 | 1 | ||
| 2 | BCWF838E0000 | COVER HEADLIGHT | ₹ 237 | 1 | ||
| 3 | 902690681600 | RIVET | ₹ 12 | 1 | ||
| 4 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 5 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 2 | ||
| 6 | 904801481600 | GROMMET | ₹ 8 | 2 | ||
| 7 | 902010503600 | WASHER | ₹ 2 | 2 | ||
| 8 | 977025001600 | SCREW TAPPING | ₹ 10 | 2 | ||
| 9 | 904800181100 | GROMMET | ₹ 8 | 1 | ||
| 10 | 20PF17490000 | COLLAR | ₹ 4 | 1 | ||
| 11 | 901490682900 | SCREW | ₹ 25 | 1 | ||
| 12 | 20PF811G0000 | BAND | ₹ 20 | 1 | ||
| 13 | BCWH43010000 | PILOT LIGHT ASSY 1 | ₹ 976 | 1 | ||
| 14 | 904801481600 | GROMMET | ₹ 8 | 2 | ||
| 15 | 977025001600 | SCREW TAPPING | ₹ 10 | 5 | ||
| 16 | 902010503600 | WASHER | ₹ 2 | 2 | ||
| 17 | BCWH43020000 | PILOT LIGHT ASSY 2 | ₹ 976 | 1 | ||
| 18 | 904801481600 | GROMMET | ₹ 8 | 2 | ||
| 19 | 977025001600 | SCREW TAPPING | ₹ 10 | 5 | ||
| 20 | 902010503600 | WASHER | ₹ 2 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Secure at IndiaSpare. Pierce the darkest nights plus thick fog with the legendary illumination of the authentic Headlight catalog assembly built specifically for your iconic Yamaha R15M machine. This primary lighting section provides the heavy duty Headlight Assy along with specialized Pilot Light units alongside the protective Cover Headlight pieces required for a flush installation. Using genuine optical parts plus original Grommets plus specialized Screw Tapping kits ensures that the headlight beam remains steady without any flicker during high rev riding. These components feature weather sealed housings meant for preventing internal debris or condensation from clouding your vision during late evening tours across Indian highways. Precision items including various Collars plus Bands plus Washers provided in this catalog maintain the structural integrity of the front fairing against intense air pressure plus road shocks. Preserve the signature twin eye predatory look of the Yamaha R15M with official factory headlights meant for ultimate road safety. Grab at IndiaSpare.
