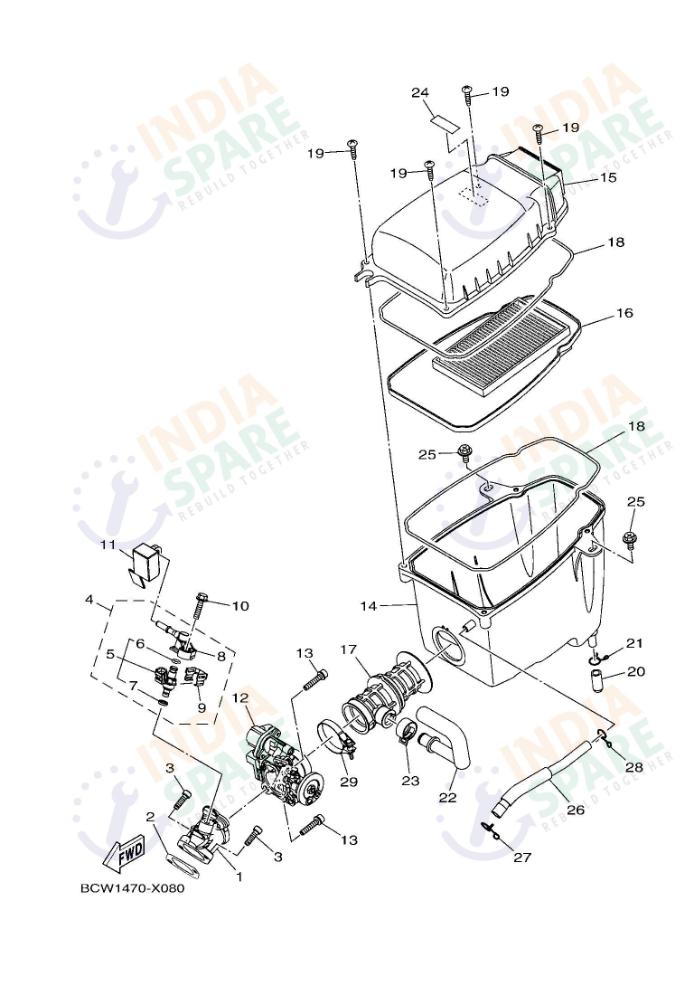

INTAKE
DM43
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BCWE35850000 | MANIFOLD | ₹ 272 | 1 | ||
| 2 | B0TE41990000 | GASKET | ₹ 10 | 1 | ||
| 3 | 913120602000 | BOLT HEXAGON SOCKET HEAD | ₹ 38 | 2 | ||
| 4 | BCWE37700000 | INJECTOR ASSY | ₹ 1897 | 1 | ||
| 5 | BCWE37610000 | INJECTOR | ₹ 1950 | 1 | ||
| 6 | BACE41470000 | O-RING | ₹ 14 | 1 | ||
| 7 | BACE41A10000 | SEAL RING | ₹ 145 | 1 | ||
| 8 | B7JE39381000 | PIPE | ₹ 140 | 1 | ||
| 9 | 1STE41370000 | CLIP | ₹ 87 | 1 | ||
| 10 | 958120602500 | BOLT FLANGE | ₹ 5 | 1 | ||
| 11 | BCWE37670000 | CAP INJECTOR | ₹ 31 | 1 | ||
| 12 | BK7E37501100 | THROTTLE BODY ASSY | ₹ 6337 | 1 | ||
| 13 | 901100684600 | BOLT HEXAGON SOCKET HEAD | ₹ 44 | 2 | ||
| 14 | BPDE44110000 | CASE, AIR CLEANER 1 | ₹ 270 | 1 | ||
| 15 | BPDE44120000 | CAP, CLEANER CASE 1 | ₹ 155 | 1 | ||
| 16 | BPDE44500000 | ELEMENT ASSY, AIR CLEANER | ₹ 270 | 1 | ||
| 17 | BPDE44530000 | JOINT, AIR CLEANER 1 | ₹ 115 | 1 | ||
| 18 | BPDE44520000 | SEAL | ₹ 25 | 2 | ||
| 19 | 977075002500 | SCREW TAPPING | ₹ 6 | 4 | ||
| 20 | 1PME443E0000 | PIPE DRAIN | ₹ 10 | 1 | ||
| 21 | 1PME44380000 | CLIP DRAIN CLEANER | ₹ 5 | 1 | ||
| 22 | BPDE441J0000 | PIPE, SILENCER | ₹ 64 | 1 | ||
| 23 | 904672080400 | CLIP | ₹ 12 | 1 | ||
| 24 | 1GCE417E0000 | LABEL CAUTION | ₹ 6 | 1 | ||
| 25 | 901190605100 | BOLT WITH WASHER | ₹ 18 | 2 | ||
| 26 | BK7E11660000 | PIPE, BREATHER 1 | ₹ 27 | 1 | ||
| 27 | 904671205200 | CLIP | ₹ 80 | 1 | ||
| 28 | 904671182500 | CLIP | ₹ 58 | 1 | ||
| 29 | 904504380700 | HOSE CLAMP ASSY | ₹ 30 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Stock at IndiaSpare. Optimized breathing for the high technology four valve head depends on air flow through the original Intake catalog assembly gear built for your Yamaha R15M. This section includes the primary Manifold along with original high pressure Fuel Injectors alongside the complete Throttle Body assemblies meant for India today. Every catalog kit provides official Element Assy kits for Air Cleaners plus various specialized Pipes plus Seals needed for ensuring a perfectly clean fuel air mixture for the pilot. Using genuine intake components prevents common vacuum leaks that cause erratic idling plus ensures air reaches the DiASil cylinder without any road contaminants for your sportbike. Yamaha R15M pilots trust authentic air filter elements plus manifold gaskets for providing that immediate throttle response defining the quick nature of the motorcycle on racetracks or highways. Source these official engine breathing parts today. Trust IndiaSpare.
