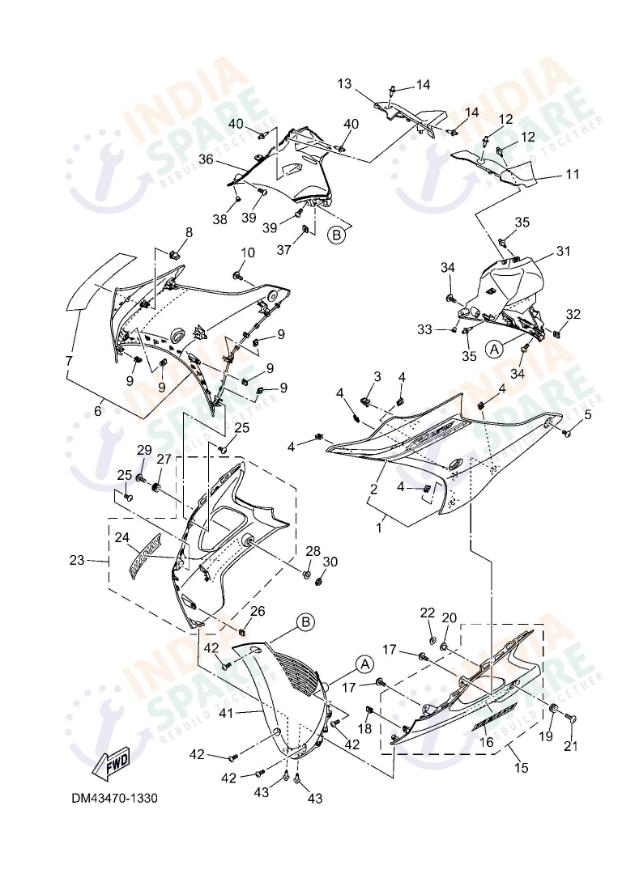

LEG SHIELD
DM43
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | DM4XF83600P0 | PANEL COMP 1 | ₹ 1850 | 1 | FOR WMC | |
| 2 | DM4F83932000 | GRAPHIC 3 | ₹ 175 | 1 | ||
| 3 | 904640701800 | CLAMP | ₹ 6 | 1 | ||
| 4 | 901830580700 | NUT SPRING | ₹ 9 | 5 | ||
| 5 | 901110685900 | BOLT HEX. SOCKET BUTTON | ₹ 7 | 1 | ||
| 6 | DM4XF83G00P0 | PANEL COMP 2 | ₹ 1850 | 1 | FOR WMC | |
| 7 | DM4F83942000 | GRAPHIC 4 | ₹ 175 | 1 | ||
| 8 | 904640701800 | CLAMP | ₹ 6 | 1 | ||
| 9 | 901830580700 | NUT SPRING | ₹ 9 | 5 | ||
| 10 | 901110685900 | BOLT HEX. SOCKET BUTTON | ₹ 7 | 1 | ||
| 11 | BCWF837L0000 | PANEL CONSOLE 1 | ₹ 66 | 1 | ||
| 12 | 902690681300 | RIVET | ₹ 8 | 2 | ||
| 13 | BCWF837M0000 | PANEL CONSOLE 2 | ₹ 66 | 1 | ||
| 14 | 902690681300 | RIVET | ₹ 8 | 2 | ||
| 15 | DM4XF83800P2 | UNDER COVER ASSY 1 | ₹ 1780 | 1 | FOR WMC | |
| 16 | DM4F839H0000 | EMBLEM 1 | ₹ 100 | 1 | ||
| 17 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 2 | ||
| 18 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 19 | 904801280500 | GROMMET | ₹ 8 | 1 | ||
| 20 | 903870689900 | COLLAR | ₹ 30 | 1 | ||
| 21 | 901490682900 | SCREW | ₹ 25 | 1 | ||
| 22 | 901790684100 | NUT | ₹ 4 | 1 | ||
| 23 | DM4XF83900P2 | UNDER COVER ASSY 2 | ₹ 1780 | 1 | FOR WMC | |
| 24 | DM4F839H0000 | EMBLEM 1 | ₹ 100 | 1 | ||
| 25 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 2 | ||
| 26 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 27 | 904801280500 | GROMMET | ₹ 8 | 1 | ||
| 28 | 903870689900 | COLLAR | ₹ 30 | 1 | ||
| 29 | 901490682900 | SCREW | ₹ 25 | 1 | ||
| 30 | 901790684100 | NUT | ₹ 4 | 1 | ||
| 31 | BCWF836K0000 | PANEL INNER 1 | ₹ 132 | 1 | ||
| 32 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 33 | 903380718000 | PLUG | ₹ 84 | 1 | ||
| 34 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 2 | ||
| 35 | 902690681300 | RIVET | ₹ 8 | 2 | ||
| 36 | BCWF836L0000 | PANEL INNER 2 | ₹ 132 | 1 | ||
| 37 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 38 | 903380718000 | PLUG | ₹ 84 | 1 | ||
| 39 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 2 | ||
| 40 | 902690681300 | RIVET | ₹ 8 | 2 | ||
| 41 | BCWF836M0000 | PANEL INNER 3 | ₹ 286 | 1 | ||
| 42 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 4 | ||
| 43 | 902690681300 | RIVET | ₹ 8 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
