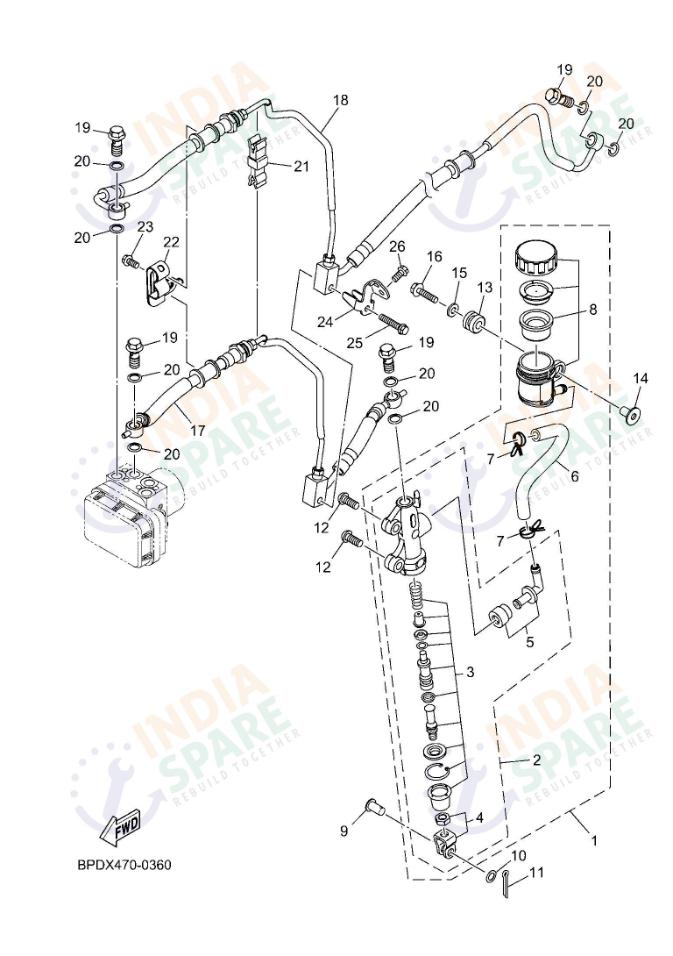

REAR MASTER CYLINDER
DM43
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | REAR MASTER CYLINDER ASSY | ₹ 2396 | 1 | |||
| 2 | BPDF583V0000 | RR. MASTER CYLINDE | ₹ 2198 | 1 | ||
| 3 | BPDF58080000 | CYLINDER KIT, MAST | ₹ 562 | 1 | ||
| 4 | BPDWF7220000 | PUSH ROD SET | ₹ 387 | 1 | ||
| 5 | BPDWF5820000 | CONNECTOR AND BUSH SET | ₹ 27 | 1 | ||
| 6 | BPDF58950000 | HOSE, RESERVOIR | ₹ 75 | 1 | ||
| 7 | BPDF72680000 | CLIP, WIRE | ₹ 36 | 2 | ||
| 8 | BPDF58045000 | RESERVE TANK ASSY. | ₹ 92 | 1 | ||
| 9 | 902400800500 | PIN CLEVIS | ₹ 52 | 1 | ||
| 10 | 902010806600 | WASHER PLATE | ₹ 14 | 1 | ||
| 11 | 902521880000 | PIN SPLIT | ₹ 1 | 1 | ||
| 12 | 920120802000 | BOLT BUTTON HEAD | ₹ 20 | 2 | ||
| 13 | BK7F47420000 | GROMMET | ₹ 10 | 1 | ||
| 14 | BK7F62590000 | COLLAR | ₹ 42 | 1 | ||
| 15 | 902010682800 | WASHER PLATE | ₹ 4 | 1 | ||
| 16 | 958020602500 | BOLT FLANGE | ₹ 6 | 1 | ||
| 17 | BPDF584C0000 | HOSE, BRAKE | ₹ 1530 | 1 | ||
| 18 | BPDF584D0000 | HOSE, BRAKE | ₹ 1530 | 1 | ||
| 19 | 904011001500 | BOLT UNION | ₹ 34 | 4 | ||
| 20 | 902011011800 | WASHER PLAIN | ₹ 5 | 8 | ||
| 21 | 904640610100 | CLAMP | ₹ 270 | 1 | ||
| 22 | B9EF58860000 | HOLDER BRAKE HOSE | ₹ 35 | 1 | ||
| 23 | 950220601200 | BOLT FLANGE | ₹ 8 | 1 | ||
| 24 | B9EF58870000 | HOLDER BRAKE HOSE | ₹ 20 | 1 | ||
| 25 | 950220603000 | BOLT FLANGE | ₹ 14 | 1 | ||
| 26 | 950220601200 | BOLT FLANGE | ₹ 8 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Browse at IndiaSpare. Precision stopping control remains the duty of every hydraulic part within the Rear Master Cylinder catalog assembly built specifically for the high performance Yamaha R15M. This safety focused section contains the primary Rear Master Cylinder Assy alongside original Cylinder kits plus durable Brake Hose setups required for Indian riding today. Included within this assembly are the necessary Reservoirs plus specialized Push Rod sets along with authentic Clip plus Grommet hardware for a leak free hydraulic rebuild. Precision components like the Bolt Union plus Copper Washer plus specialized Brackets ensure that brake fluid reaches the caliper with consistent pressure without any air ingress. Yamaha R15M pilots riding on technical mountain roads or busy city streets require absolute trust in rear braking responsiveness to safely navigate through corners plus traffic. Our authorized factory spares ensure your stopping performance matches manufacturing standards. Discover at IndiaSpare.
