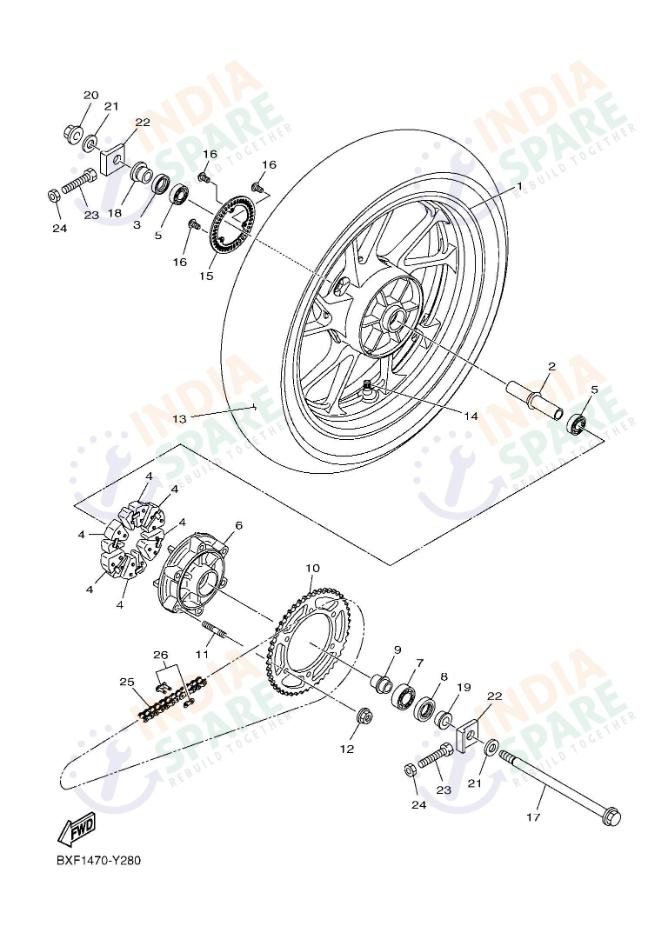

REAR WHEEL
DM43
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BPDF533800P0 | CAST WHEEL, REAR | ₹ 6513 | 1 | ||
| 2 | B97F530S0000 | COLLAR ASSY | ₹ 49 | 1 | ||
| 3 | 931062280800 | OIL SEAL | ₹ 9 | 1 | ||
| 4 | B97F53640000 | DAMPER | ₹ 25 | 6 | ||
| 5 | 93306202XT00 | BEARING ( USE IN REAR WHEEL H | ₹ 185 | 2 | ||
| 6 | B97F53660000 | CLUTCH HUB | ₹ 456 | 1 | ||
| 7 | 93306054Y500 | BEARING | ₹ 170 | 1 | ||
| 8 | 931062680100 | SEAL OIL | ₹ 23 | 1 | ||
| 9 | B97F53760000 | COLLAR WHEEL | ₹ 41 | 1 | ||
| 10 | BK7F54480000 | SPROCKET, DRIVEN (48T) | ₹ 0 | 1 | ||
| 11 | 901160882600 | BOLT STUD | ₹ 31 | 6 | ||
| 12 | 956020820000 | NUT U FLANGE | ₹ 11 | 6 | ||
| 13 | 941141781300 | TIRE | ₹ 4567 | 1 | ||
| 14 | 939000082400 | VALVE RIM | ₹ 19 | 1 | ||
| 15 | B9EF517G0000 | ROTOR SENSOR | ₹ 107 | 1 | ||
| 16 | 901490501000 | SCREW | ₹ 25 | 3 | ||
| 17 | BK7F53810000 | AXLE WHEEL | ₹ 190 | 1 | ||
| 18 | B97F53770000 | COLLAR WHEEL | ₹ 31 | 1 | ||
| 19 | B97F53830000 | COLLAR WHEEL | ₹ 38 | 1 | ||
| 20 | 956021420000 | NUT U FLANGE | ₹ 32 | 1 | ||
| 21 | 902011581400 | WASHER PLAIN | ₹ 27 | 2 | ||
| 22 | 1CKF53880000 | PULLER CHAIN 1 | ₹ 55 | 2 | ||
| 23 | 901010800600 | BOLT | ₹ 18 | 2 | ||
| 24 | 953020870000 | NUT | ₹ 3 | 2 | ||
| 25 | 94568L612700 | CHAIN (DID428VIM-X2 127LL) | ₹ 0 | 1 | ||
| 26 | 94668L602100 | CHAIN JOINT | ₹ 150 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Shop now at IndiaSpare. Uncompromising balance plus structural durability for the drivetrain of your sportbike resides within our official Rear Wheel catalog assembly designed for every Yamaha R15M. This specific group features the primary Rear Cast Wheel alongside the high density Cush Dampers plus specialized Clutch Hub plus Bearings for Indian roads. Every assembly including high precision Oil Seals plus Wheel Axles plus original Collar kits provides everything needed for a complete wheel hub overhaul during service. Authentic items like the Rotor Sensor plus Rim Valve plus specialized Puller Chain kits ensure that your electronic telemetry plus drive alignment stay within factory limits. Yamaha R15M enthusiasts depend on these original rims because they provide the strength plus lightness needed for high velocity riding without any wobbling or stability issues at top speed. Using original high tensile Nuts plus Washers ensures that the entire rear assembly remains locked together. Order at IndiaSpare.
