SEAT

DM43

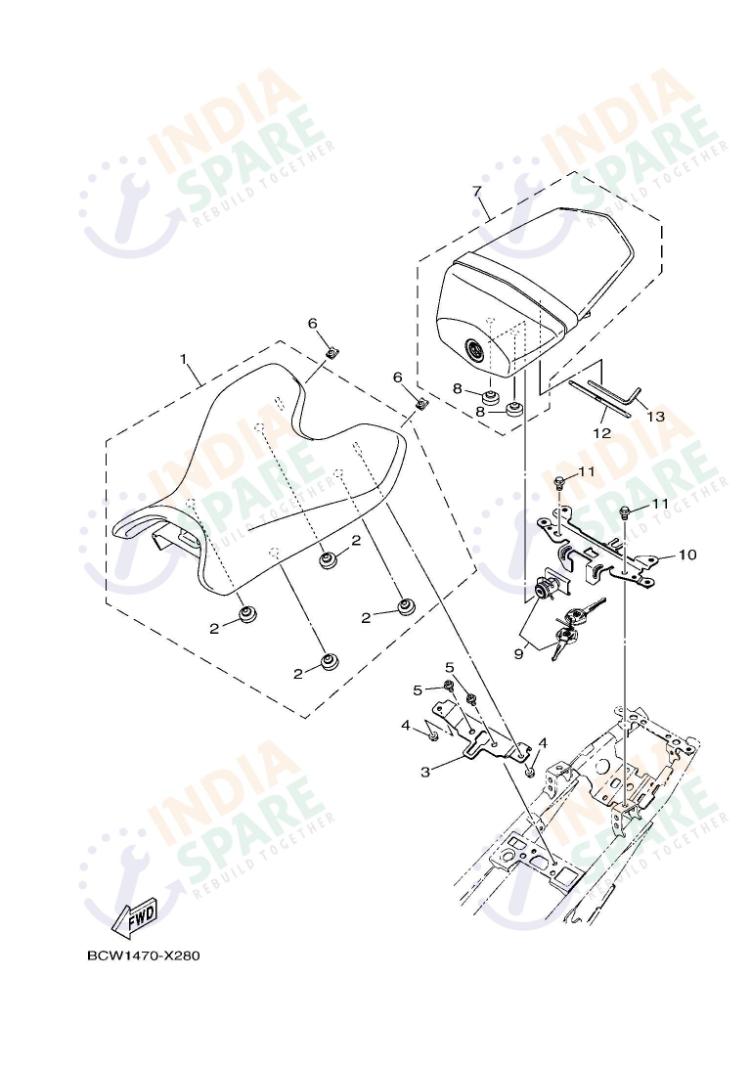

YAMAHA DM43 R15 V4 Series SEAT
Fullscreen
YAMAHA DM43 R15 V4 Series SEAT
Ref No Part No Part Name Rate Qnty Order Remarks
1 BCWF47101000 SINGLE SEAT ASSY ₹ 717 1
2 4LSF47410000 PAD SEAT ₹ 8 4
3 BCWF475H0000 BRACKET SEAT LEVER 1 ₹ 127 1
4 901850680100 NUT SELF-LOCKING ₹ 5 2
5 901100624500 BOLT HEXAGON SOCKET HEAD ₹ 25 2
6 901830580700 NUT SPRING ₹ 9 2
7 BCWF47501000 TANDEM SEAT ASSY ₹ 670 1
8 4LSF47410000 PAD SEAT ₹ 8 2
9 BCWWF4780000 SEAT LOCK WITH KEY ₹ 250 1
10 BCWF475J0000 BRACKET SEAT LEVER 2 ₹ 238 1
11 950220801200 BOLT FLANGE ₹ 9 2
12 36LF81520000 DRIVER PLUS MINUS ₹ 11 1
13 20PF81640000 WRENCH HEXAGON 8 ₹ 24 1


Color Legend:

  • Red: Canceled part - unavailable for any operations.
  • Blue: Part of a kit - cannot be ordered individually.
  • Gray (Dimmed): Disabled part - non-interactive for various reasons.
  • Part Number : Superseded part - replaced by a newer part.

Description: - Buy from IndiaSpare. Long distance endurance plus comfortable sporty ergonomics for your passenger reside within our original Seat catalog assembly built specifically for the Yamaha R15M pilot. This specific section contains the primary Single Seat Assy along with the original Tandem Seat units plus specialized Padding kits required for Indian tours. Every Seat Lock Assy alongside original Brackets plus Lever systems plus various specialized Nuts provides everything needed for securing the seat plus cargo area. Authentic Yamaha R15M seats feature high quality water resistant materials that stay supple during hot Indian summers plus keep the internal foam dry during rains. Using original cushions ensures that the rider remains properly positioned for aggressive lean angles while the pillion enjoys stability plus safety behind the pilot. Maintain the premium look plus high end comfort of your machine by choosing genuine factory seats designed to match rail dimensions. Only at IndiaSpare.
