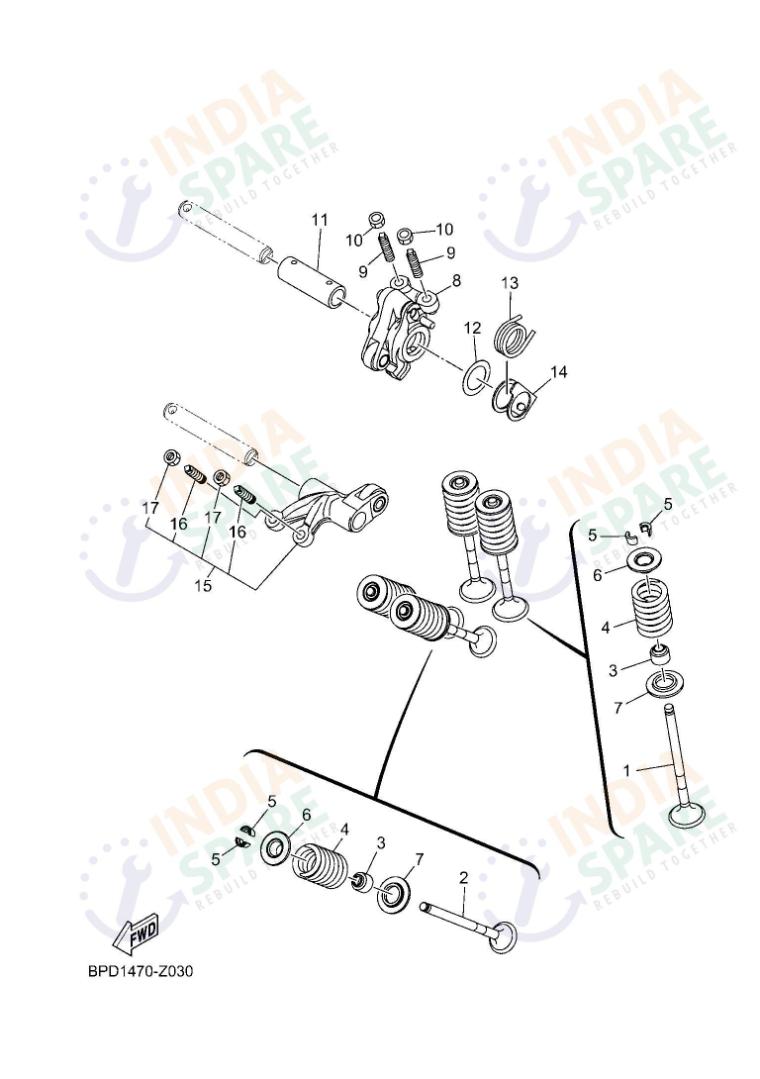

VALVE
DM43
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BK7E21110000 | VALVE INTAKE | ₹ 125 | 2 | ||
| 2 | B0TE21210000 | VALVE EXHAUST | ₹ 199 | 2 | ||
| 3 | 1GCE21190000 | SEAL VALVE STEM | ₹ 30 | 4 | ||
| 4 | B63E21130000 | SPRING VALVE INNER | ₹ 99 | 4 | ||
| 5 | 5TLE21180000 | LOCK VALVE SPRING | ₹ 16 | 8 | ||
| 6 | B7JE21170000 | RETAINER VALVE SPRING | ₹ 13 | 4 | ||
| 7 | 38BE21260000 | SEAT VALVE SPRING 2 | ₹ 30 | 4 | ||
| 8 | BPDE21500000 | VALVE ROCKER ARM ASSY | ₹ 3226 | 1 | ||
| 9 | BCWE21590000 | SCREW, VALVE ADJUSTING | ₹ 40 | 2 | ||
| 10 | 901700530200 | NUT | ₹ 7 | 2 | ||
| 11 | BCWE21660000 | SHAFT ROCKER 3 | ₹ 220 | 1 | ||
| 12 | BK6E15570000 | WASHER 1 | ₹ 11 | 1 | ||
| 13 | BK6E22260000 | SPRING COIL | ₹ 103 | 1 | ||
| 14 | BK7E22790000 | PLATE | ₹ 15 | 1 | ||
| 15 | BCWE21600000 | VALVE ROCKER ARM A | ₹ 599 | 1 | ||
| 16 | BCWE21590000 | SCREW, VALVE ADJUSTING | ₹ 40 | 2 | ||
| 17 | 901700530200 | NUT | ₹ 7 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
