DM44
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1A | BK7XF83650P0 | PANEL COMP 1 | ₹ 1850 | 1 | FOR DPBMY | |
| 1B | BK7XF83640P2 | PANEL COMP 1 | ₹ 1850 | 1 | FOR MBL2 | |
| 2A | B0TF83910000 | GRAPHIC 1 | ₹ 22 | 1 | FOR DPBMY | |
| 2B | DM4F83910000 | GRAPHIC 1 | ₹ 50 | 1 | FOR MBL2 | |
| 3A | BLXF83930000 | GRAPHIC 3 | ₹ 197 | 1 | FOR DPBMY | |
| 3B | DM4F83930000 | GRAPHIC 3 | ₹ 250 | 1 | FOR MBL2 | |
| 4 | 901830580700 | NUT SPRING | ₹ 9 | 6 | ||
| 5 | 901600581200 | SCREW ROUND TAPPING | ₹ 10 | 2 | ||
| 6A | BK7XF83G50P0 | PANEL COMP 2 | ₹ 1855 | 1 | FOR DPBMY | |
| 6B | BK7XF83G40P2 | PANEL COMP 2 | ₹ 1850 | 1 | FOR MBL2 | |
| 7A | B0TF83920000 | GRAPHIC 2 | ₹ 22 | 1 | FOR DPBMY | |
| 7B | DM4F83920000 | GRAPHIC 2 | ₹ 50 | 1 | FOR MBL2 | |
| 8A | BLXF83940000 | GRAPHIC 4 | ₹ 197 | 1 | FOR DPBMY | |
| 8B | DM4F83940000 | GRAPHIC 4 | ₹ 250 | 1 | FOR MBL2 | |
| 9 | 901830580700 | NUT SPRING | ₹ 9 | 6 | ||
| 10 | 901600581200 | SCREW ROUND TAPPING | ₹ 10 | 2 | ||
| 11 | BK7F837L0000 | PANEL CONSOLE 1 - (BLACK) | ₹ 67 | 1 | ||
| 12 | 902690681200 | RIVET | ₹ 20 | 4 | ||
| 13 | 901600581200 | SCREW ROUND TAPPING | ₹ 10 | 1 | ||
| 14 | BK7F837M0000 | PANEL CONSOLE 2 - (BLACK) | ₹ 66 | 1 | ||
| 15 | 902690681200 | RIVET | ₹ 20 | 4 | ||
| 16 | 901600581200 | SCREW ROUND TAPPING | ₹ 10 | 1 | ||
| 17A | BK7XF83800P2 | UNDER COVER ASSY 1 MBL1 | ₹ 860 | 1 | FOR DPBMY | |
| 17B | BK7XF83810P2 | UNDER COVER ASSY 1 | ₹ 860 | 1 | FOR MBL2 | |
| 18A | B0TF841H0000 | GRAPHIC 5 | ₹ 51 | 1 | FOR DPBMY | |
| 18B | B0TF841H1000 | GRAPHIC 5 | ₹ 51 | 1 | FOR MBL2 | |
| 19 | 901830580700 | NUT SPRING | ₹ 9 | 3 | ||
| 20 | 904801280800 | GROMMET | ₹ 10 | 1 | ||
| 21 | 903870689900 | COLLAR | ₹ 30 | 1 | ||
| 22 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 1 | ||
| 23A | BK7XF83900P2 | UNDER COVER ASSY 2 MBL2 | ₹ 860 | 1 | FOR DPBMY | |
| 23B | BK7XF83910P2 | UNDER COVER ASSY 2 | ₹ 860 | 1 | FOR MBL2 | |
| 24A | B0TF841H0000 | GRAPHIC 5 | ₹ 51 | 1 | FOR DPBMY | |
| 24B | B0TF841H1000 | GRAPHIC 5 | ₹ 51 | 1 | FOR MBL2 | |
| 25 | 901830580700 | NUT SPRING | ₹ 9 | 3 | ||
| 26 | 904801280800 | GROMMET | ₹ 10 | 1 | ||
| 27 | 903870689900 | COLLAR | ₹ 30 | 1 | ||
| 28 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 1 | ||
| 29 | BK7F836K0000 | PANEL INNER 1 - (BLACK) | ₹ 87 | 1 | ||
| 30 | 904800155900 | GROMMET | ₹ 10 | 1 | ||
| 31 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 1 | ||
| 32 | 902690681200 | RIVET | ₹ 20 | 1 | ||
| 33 | BK7F836L0000 | PANEL INNER 2- (BLACK) | ₹ 129 | 1 | ||
| 34 | 904800155900 | GROMMET | ₹ 10 | 1 | ||
| 35 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 1 | ||
| 36 | 902690681200 | RIVET | ₹ 20 | 1 | ||
| 37 | BK7F836M0000 | PANEL INNER 3 - (BLACK) | ₹ 211 | 1 | ||
| 38 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 4 | ||
| 39 | 902690681200 | RIVET | ₹ 20 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.

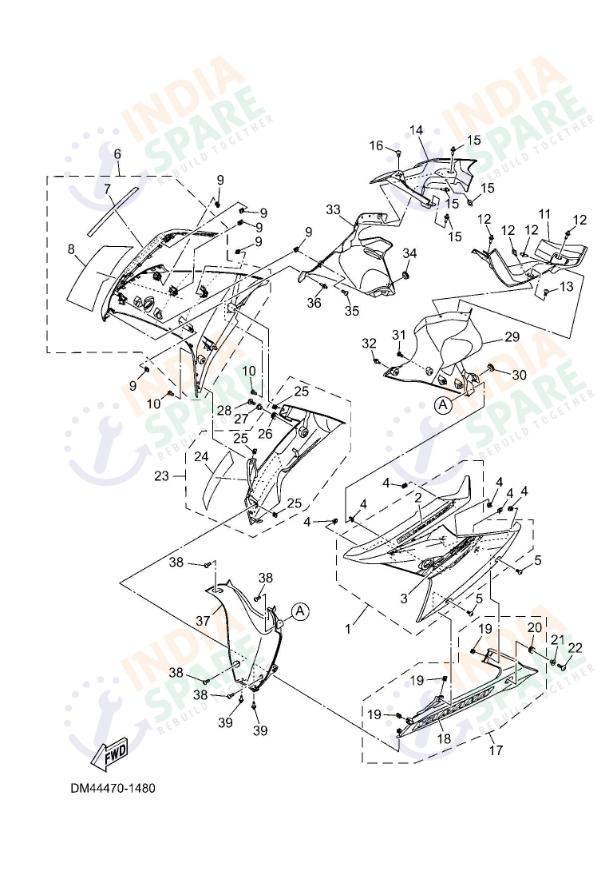

Description: - YAMAHA DM44 R15 V3 Series LEG SHIELD
