WINDSHIELD
DM44
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BK7F83810000 | WINDSHIELD (SMOKE COLOR) | ₹ 322 | 1 | ||
| 2 | 901790580400 | NUT | ₹ 10 | 4 | ||

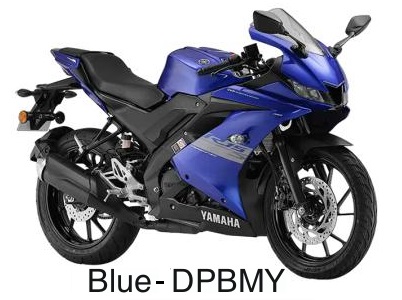

| 3A | BK7XF83520P2 | PANEL ASSY | ₹ 1027 | 1 | FOR DPBMY | |

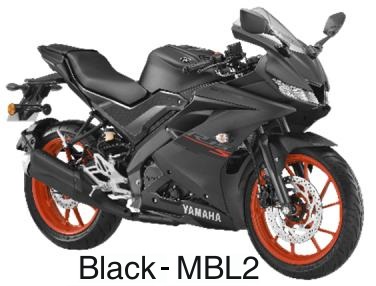

| 3B | DM4XF83500P3 | PANEL ASSY | ₹ 1280 | 1 | FOR MBL2 | |
| 4A | BLXF841G0000 | GRAPHIC 1 | ₹ 37 | 1 | FOR DPBMY | |
| 4B | DM4F841G0000 | GRAPHIC 1 | ₹ 50 | 1 | FOR MBL2 | |
| 5 | 905200283800 | SEAT PIPE | ₹ 8 | 2 | ||
| 6 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 7 | 901500502400 | SCREW ROUND HEAD | ₹ 59 | 4 | ||
| 8 | BK7F835G0000 | BODY FRONT UPPER 1 - (BLACK) | ₹ 253 | 1 | ||
| 9 | 905201083900 | SEAT PIPE | ₹ 8 | 2 | ||
| 10 | 905201084700 | DAMPER PLATE | ₹ 9 | 4 | ||
| 11 | 905201081100 | DAMPER PLATE | ₹ 14 | 4 | ||
| 12 | 904801339800 | GROMMET | ₹ 10 | 1 | ||
| 13 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 14 | 977025001600 | SCREW TAPPING | ₹ 10 | 4 | ||
| 15A | BK7F172G00P0 | PANEL 3 -DPBMY(DEEPPURPLEBLUE) | ₹ 280 | 1 | FOR DPBMY | |
| 15B | BK7F172G00P2 | PANEL 3 MBL2 | ₹ 280 | 1 | FOR MBL2 | |
| 16 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 17A | BK7F172H00P0 | PANEL 4 DPBMY(DEEPPURPLEBLUE) | ₹ 280 | 1 | FOR DPBMY | |
| 17B | BK7F172H00P2 | PANEL 4 MBL2 | ₹ 280 | 1 | FOR MBL2 | |
| 18 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 19 | BK7F83560000 | STAY 1 | ₹ 590 | 1 | ||
| 20 | 901050800200 | BOLT WASHER BASED | ₹ 8 | 2 | ||
| 21 | B9EF83650000 | COVER | ₹ 68 | 1 | ||
| 22 | BK7F62800000 | REAR VIEW MIRROR ASSY (LEFT) | ₹ 455 | 1 | ||
| 23 | BK7F62900000 | REAR VIEW MIRROR ASSY (RIGHT) | ₹ 455 | 1 | ||
| 24 | BK7F84830000 | PLATE RUBBER 1 | ₹ 15 | 2 | ||
| 25 | BK7F84840000 | PLATE RUBBER 2 | ₹ 86 | 1 | ||
| 26 | 913170603000 | BOLT | ₹ 15 | 4 | ||
| 27 | 903870613100 | COLLAR | ₹ 11 | 4 | ||
| 28 | BK7F16850000 | BRACKET LICENSE | ₹ 102 | 1 | ||
| 29 | 20PF34690000 | CAP BOLT | ₹ 2 | 4 | ||
| 30 | BK7F117V0000 | COVER 7 (BLACK) | ₹ 142 | 1 | ||
| 31 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 32 | 904801280800 | GROMMET | ₹ 10 | 2 | ||
| 33 | 903870689900 | COLLAR | ₹ 30 | 2 | ||
| 34 | 903870615800 | COLLAR | ₹ 98 | 1 | ||
| 35 | 977025001600 | SCREW TAPPING | ₹ 10 | 4 | ||
| 36 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 2 | ||
| 37 | 902690681200 | RIVET | ₹ 20 | 1 | ||
| 38 | BK7F837V0000 | GRILL AIR OUTLET 1 - (BLACK P | ₹ 119 | 1 | ||
| 39 | 977025001600 | SCREW TAPPING | ₹ 10 | 1 | ||
| 40 | 901830506700 | NUT SPRING | ₹ 8 | 5 | ||
| 41 | BK7F117W0000 | COVER 8 (BLACK) | ₹ 142 | 1 | ||
| 42 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 43 | 904801280800 | GROMMET | ₹ 10 | 2 | ||
| 44 | 903870689900 | COLLAR | ₹ 30 | 2 | ||
| 45 | 903870615800 | COLLAR | ₹ 98 | 1 | ||
| 46 | 977025001600 | SCREW TAPPING | ₹ 10 | 4 | ||
| 47 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 2 | ||
| 48 | 902690681200 | RIVET | ₹ 20 | 1 | ||
| 49 | BK7F837W0000 | GRILL AIR OUTLET 2 - (BLACK | ₹ 119 | 1 | ||
| 50 | 977025001600 | SCREW TAPPING | ₹ 10 | 1 | ||
| 51 | 901830506700 | NUT SPRING | ₹ 8 | 5 | ||
| 52 | BK7F12781000 | MOLD | ₹ 7 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Grab at IndiaSpare. Aerodynamic grace defines the front silhouette of the Yamaha R15 V3 S while protecting the rider from turbulent air at high velocities. This Windshield assembly provides more than just visual appeal as it houses critical viewing plus body components required for aggressive riding positions. Included within this section you will find the main Windshield along with specialized Mirror Assy setups for both the Left plus Right side. Durable materials used in the Graphic sets plus Bracket kits ensure that the bodywork stays vibrant while maintaining structural integrity during vibrations. Original components like the Rear View Mirrors provide vibration free visibility allowing the rider to monitor surrounding traffic without distortion on highways. Every specialized Nut Spring plus Collar plus Screw kit listed ensures that the fairing stays snug plus silent regardless of the wind speed. Secure the front profile today. Select at IndiaSpare.
