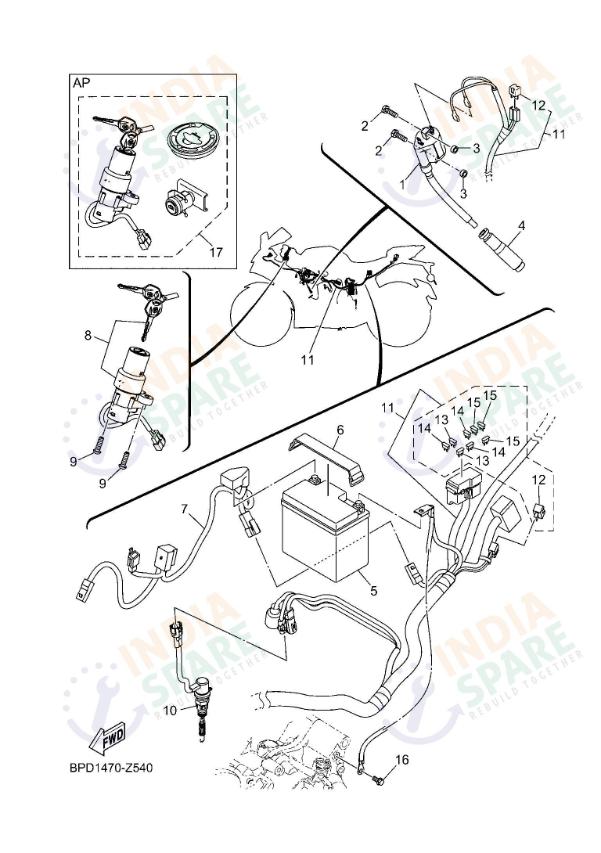

ELECTRICAL 1
DM45
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BCFH23100000 | IGNITION COIL ASSY | ₹ 890 | 1 | ||
| 2 | 970800602000 | BOLT | ₹ 53 | 2 | ||
| 3 | 9038706M3000 | COLLAR | ₹ 15 | 2 | ||
| 4 | B0TH23700000 | PLUG CAP ASSY | ₹ 285 | 1 | ||
| 5 | 1CKH21000000 | BATTERY ASSY | ₹ 0 | 1 | ||
| 6 | 5YYH21311000 | BAND BATTERY | ₹ 11 | 1 | ||
| 7 | BCWH21150000 | WIRE PLUS LEAD | ₹ 237 | 1 | ||
| 8 | BCWH25010000 | MAIN SWITCH STEERING LOCK | ₹ 661 | 1 | ||
| 9 | 901490611800 | SCREW | ₹ 48 | 2 | ||
| 10 | B9XH25300000 | STOP SWITCH ASSY | ₹ 253 | 1 | ||
| 11 | BPDH25905000 | WIRE HARNESS ASSY | ₹ 9080 | 1 | ||
| 12 | BPDH19800000 | DIODE ASSY | ₹ 110 | 2 | ||
| 13 | BK7H21516000 | FUSE (30A) | ₹ 4 | 2 | ||
| 14 | BK7H21511000 | FUSE -15 AMP | ₹ 7 | 3 | ||
| 15 | BK7H21518000 | FUSE -2 AMP | ₹ 25 | 3 | ||
| 16 | 950220601200 | BOLT FLANGE | ₹ 8 | 1 | ||
| 17 | BCWXH2500000 | MAIN SW. STRG. LOC | ₹ 1740 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Every glorious mechanical morning start with your Yamaha R15 V4 begins with the robust ignition framework found in our authentic Electrical One catalog section. The foundational power flow for your high revving engine depends on the primary Ignition Coil Assy plus the specialized Plug Cap Assy alongside the Main Switch Steering Lock. Within this vital assembly containing the durable Wire Harness Assy plus various specialized Fuses plus Diode units we provide total electrical security for your machine. Authentic wiring plus ignition hardware from Yamaha prevents common electronic malfunctions plus ensures a consistent spark for your high compression liquid cooled motor. Every specialized Bolt plus Collar plus Band Battery provided here is manufactured to survive the intense vibrations experienced at triple digit highway speeds. Protecting the central nervous system of your motorcycle from corrosion plus electrical resistance remains the top priority for enthusiasts seeking long distance reliability. Trust these original factory spares to maintain the legendary starting response plus ignition timing accuracy that every track derived motorcycle requires for success. Secure your machine heartbeat with official wiring kits plus ignition modules built for maximum endurance during your Indian adventures today.
