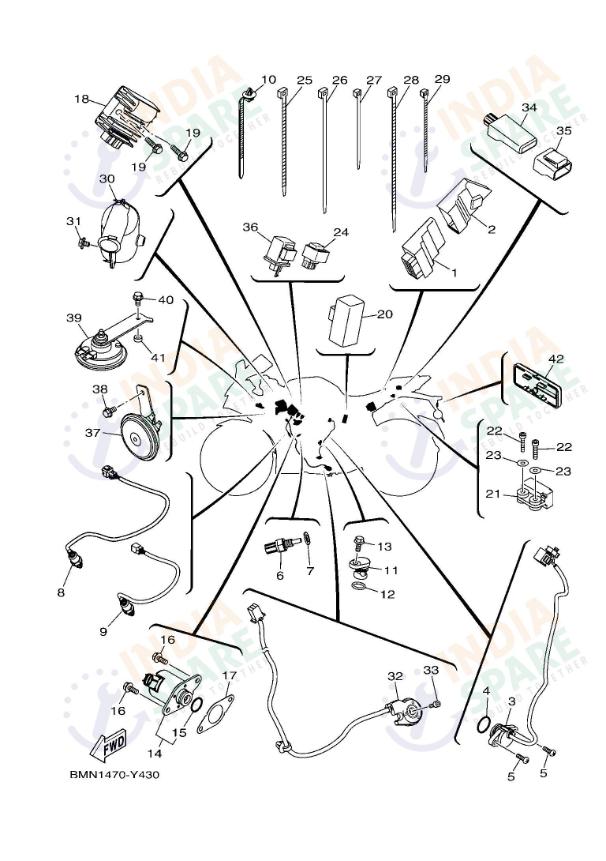

ELECTRICAL 2
DM45
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BGNH591A0000 | ENGINE CONTROL UNIT ASSY | ₹ 6139 | 1 | ||
| 2 | BGNH55460000 | BAND | ₹ 95 | 1 | ||
| 3 | BK7H25400000 | NEUTRAL SWITCH ASSY | ₹ 295 | 1 | ||
| 4 | 932102180100 | O-RING | ₹ 11 | 1 | ||
| 5 | 901570581700 | SCREW PAN HEAD | ₹ 5 | 2 | ||
| 6 | B4RH35910000 | THERMO UNIT | ₹ 375 | 1 | ||
| 7 | 904301080200 | GASKET | ₹ 30 | 1 | ||
| 8 | BGMH592A1000 | SENSOR | ₹ 4125 | 1 | ||
| 9 | BGMH592A0000 | SENSOR | ₹ 4125 | 1 | ||
| 10 | 904643680100 | CLAMP | ₹ 20 | 2 | ||
| 11 | B9EE51890000 | PLUG | ₹ 143 | 1 | ||
| 12 | 932101580600 | O-RING | ₹ 5 | 1 | ||
| 13 | 958120601400 | BOLT FLANGE | ₹ 5 | 1 | ||
| 14 | BK6H61101000 | SOLENOID | ₹ 4002 | 1 | ||
| 15 | BK6H18470000 | O-RING | ₹ 25 | 1 | ||
| 16 | 958120601600 | BOLT FLANGE | ₹ 3 | 2 | ||
| 17 | B0TH18610000 | GASKET | ₹ 10 | 1 | ||
| 18 | BKHH19600000 | RECTIFIER & REGULATOR ASSY | ₹ 940 | 1 | ||
| 19 | 958020602500 | BOLT FLANGE | ₹ 6 | 2 | ||
| 20 | BK7H19400000 | STARTER RELAY ASSY | ₹ 230 | 1 | ||
| 21 | B9PH25760000 | SENSOR LEAN ANGLE | ₹ 413 | 1 | ||
| 22 | 913120402500 | BOLT | ₹ 15 | 2 | ||
| 23 | 90201047A200 | WASHER PLATE | ₹ 47 | 2 | ||
| 24 | 20PH19500100 | RELAY ASSY | ₹ 90 | 1 | ||
| 25 | 904645080000 | CLAMP | ₹ 6 | 2 | ||
| 26 | 904646500100 | CLAMP | ₹ 14 | 1 | ||
| 27 | 904641606100 | CLAMP | ₹ 8 | 10 | ||
| 28 | 904648080200 | CLAMP | ₹ 13 | 2 | ||
| 29 | 904643680000 | CLAMP | ₹ 8 | 2 | ||
| 30 | 20PH246B0300 | COVER 1 | ₹ 23 | 1 | ||
| 31 | 901190605400 | BOLT, WITH WASHER | ₹ 10 | 1 | ||
| 32 | BCWH25660000 | SWITCH SIDE STAND | ₹ 411 | 1 | ||
| 33 | 901100689300 | BOLT HEXAGON SOCKET HEAD | ₹ 10 | 1 | ||
| 34 | B6YH58101300 | COMMUNICATION CONT | ₹ 5440 | 1 | ||
| 35 | BCWH25910000 | BAND | ₹ 31 | 1 | ||
| 36 | BCWH33505000 | FLASHER RELAY ASSY | ₹ 391 | 1 | ||
| 37 | BK7H33711000 | HORN | ₹ 194 | 1 | ||
| 38 | 958220601200 | BOLT FLANGE | ₹ 3 | 1 | ||
| 39 | BCWH33710000 | HORN | ₹ 257 | 1 | ||
| 40 | 958270801600 | BOLT FLANGE | ₹ 10 | 1 | ||
| 41 | 90387068C400 | COLLAR | ₹ 7 | 1 | ||
| 42 | BE1H51300000 | REAR REFLECTOR ASSY | ₹ 24 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
