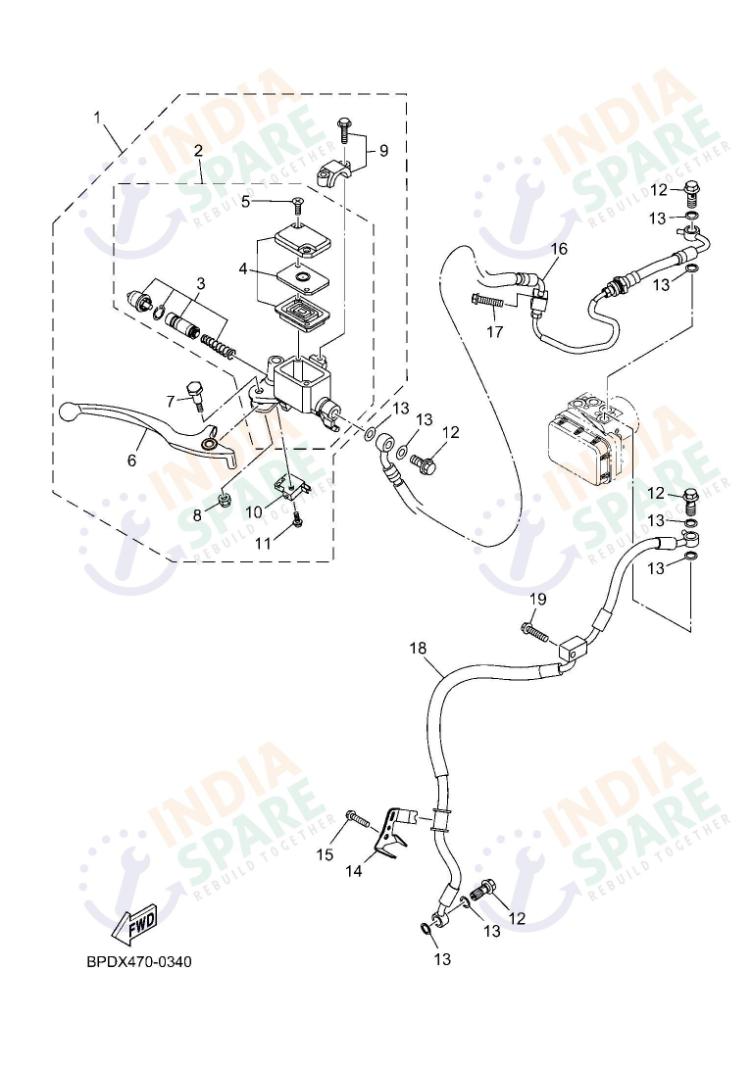

FRONT MASTER CYLINDER
DM45
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BPDF583T0000 | MASTER CYLINDER ASSY | ₹ 1539 | 1 | ||
| 2 | BPDF580A0000 | MASTER CYLINDER SU | ₹ 2304 | 1 | ||
| 3 | BPDF58070000 | CYLINDER KIT, MAST | ₹ 525 | 1 | ||
| 4 | BPDWF5850000 | CAP RESERVOIR KIT | ₹ 474 | 1 | ||
| 5 | 54BF589H0000 | SCREW | ₹ 5 | 2 | ||
| 6 | B97H39220000 | LEVER 2 | ₹ 193 | 1 | ||
| 7 | 901090685900 | BOLT | ₹ 14 | 1 | ||
| 8 | 54BF63380000 | NUT ADJUSTING | ₹ 6 | 1 | ||
| 9 | BPDWF5860000 | CLAMP SCREW KIT | ₹ 359 | 1 | ||
| 10 | B97H39800000 | FRONT STOP SWITCH | ₹ 81 | 1 | ||
| 11 | B97F589H0000 | SCREW | ₹ 5 | 1 | ||
| 12 | 904011001500 | BOLT UNION | ₹ 34 | 4 | ||
| 13 | 902011011800 | WASHER PLAIN | ₹ 5 | 8 | ||
| 14 | BCWF58750000 | HOLDER BRAKE HOSE 1 | ₹ 57 | 1 | ||
| 15 | 901050686800 | BOLT FLANGE | ₹ 6 | 1 | ||
| 16 | BPDF584A0000 | BRAKE HOSE ASSY | ₹ 1215 | 1 | ||
| 17 | 950220602500 | BOLT FLANGE | ₹ 11 | 1 | ||
| 18 | BPDF584B0000 | HOSE, BRAKE | ₹ 1530 | 1 | ||
| 19 | 950220602500 | BOLT FLANGE | ₹ 11 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Precise deceleration at the flick of a finger provides the incredible confidence that makes the Yamaha R15 V4 a legendary sportbike choice. The Front Master Cylinder catalog provides total control through the primary Master Cylinder Assy plus specialized Lever Two units plus Hose components. Including the Reservoir Cap kits plus authentic Stop Switch assemblies this catalog focuses on maintaining the tactile feel of the front brake system. Precision parts like the Brake Hose Assy plus specialized Bolt Unions plus various Nut setups provide a reliable path for hydraulic fluid transfer. Owners of the Yamaha R15 V4 understand that front braking accounts for most of the stopping power during emergency maneuvers on Indian roads. Genuine items like the Washer Plain kits plus specific Clamp Screws prevent air ingress plus fluid leaks that can degrade braking performance significantly over time. Rebuild your front hydraulic control with original factory spares to preserve the surgical precision that every track enthusiast demands from their bike.
