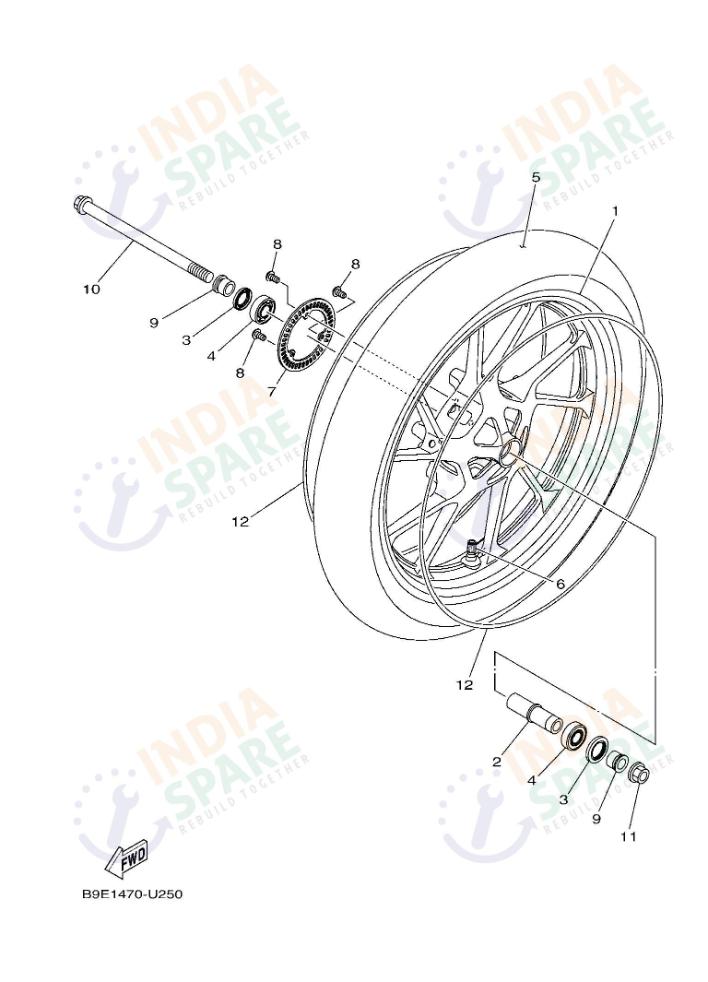

FRONT WHEEL
DM45
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1A | B9EF51680133 | CAST WHEEL FRONT | ₹ 5019 | 1 | FOR SMX | |
| 1B | B9EF516801P1 | CAST WHEEL FRONT | ₹ 5019 | 1 | FOR BWC1 | |
| 2 | 21CF510C1000 | COLLAR ASSY. | ₹ 27 | 1 | ||
| 3 | 931062280800 | OIL SEAL | ₹ 9 | 2 | ||
| 4 | 93306202XT00 | BEARING ( USE IN REAR WHEEL H | ₹ 185 | 2 | ||
| 5 | 941101781800 | TIRE FRONT ( 100/80-17 ) MRF | ₹ 1751 | 1 | ||
| 6 | 939000082400 | VALVE RIM | ₹ 19 | 1 | ||
| 7 | B9EF517G0000 | ROTOR SENSOR | ₹ 107 | 1 | ||
| 8 | 901490503000 | SCREW | ₹ 21 | 3 | ||
| 9 | 1CKF51860000 | COLLAR WHEEL | ₹ 23 | 2 | ||
| 10 | 21CF51810000 | AXLE WHEEL | ₹ 152 | 1 | ||
| 11 | 956021420000 | NUT U FLANGE | ₹ 32 | 1 | ||
| 12 | 21CF531BE000 | EMBLEM WHEEL | ₹ 0 | 2 | FOR SMX |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Precise steering plus reliable front end feedback defines the agility that every owner expects from their beloved plus highly agile Yamaha R15 V4 today. The Front Wheel assembly catalog includes the primary Cast Wheel Front alongside the essential Bearings plus high performance Tire Front kits for India. Within this specific collection you will find original Wheel Axles plus Rim Valves plus specialized Collar kits required for a professional rim installation. Including the precise Rotor Sensor plus Screw sets we ensure your electronic speed sensors receive clean plus uninterrupted data while you ride at speed. Every Nut plus Bearing found in our catalog provides a smooth rotational experience meant to minimize rolling resistance while enhancing fuel economy plus handling. Replacing a damaged rim with original Yamaha R15 V4 factory wheels maintains the balance plus stability that provides you with total confidence during cornering. Explore the best quality front end components today plus keep your machine pointed toward the horizon with absolute precision.
