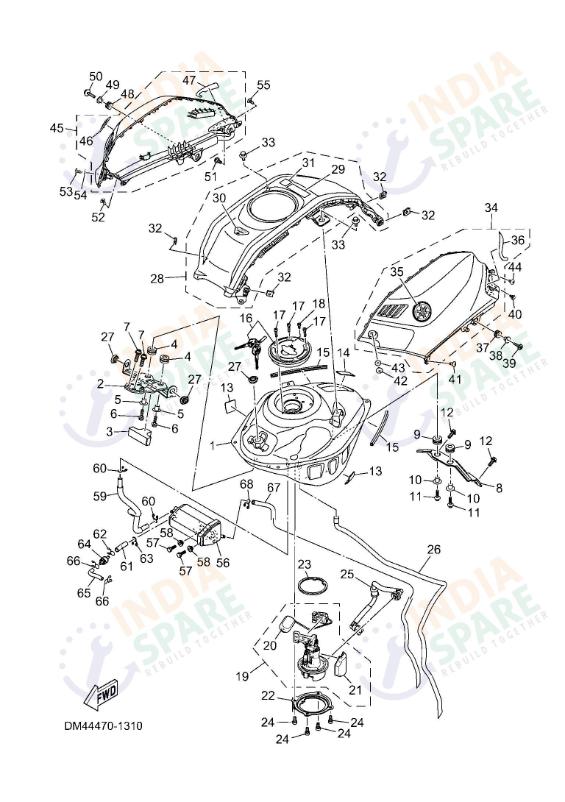

FUEL TANK
DM45
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B0TF41100000 | FUEL TANK COMP. | ₹ 3446 | 1 | ||
| 2 | BK7F412Y0000 | BRKT. TANK FITTING FR. | ₹ 177 | 1 | ||
| 3 | BK7F41810000 | DAMPER LOCATING 1 | ₹ 55 | 1 | ||
| 4 | 904801536300 | GROMMET | ₹ 110 | 2 | ||
| 5 | 90387068B200 | COLLAR | ₹ 11 | 2 | ||
| 6 | 901050616900 | BOLT FLANGE | ₹ 5 | 2 | ||
| 7 | 901100883900 | BOLT HEXAGON SOCKET HEAD | ₹ 15 | 2 | ||
| 8 | BCWF41910000 | BRACKET FUEL TANK 1 | ₹ 216 | 1 | ||
| 9 | 904801536300 | GROMMET | ₹ 110 | 2 | ||
| 10 | 90387068B200 | COLLAR | ₹ 11 | 2 | ||
| 11 | 901050616900 | BOLT FLANGE | ₹ 5 | 2 | ||
| 12 | 901100621500 | BOLT HEXAGON SOCKET HEAD | ₹ 19 | 2 | ||
| 13 | 905200280600 | DAMPER PLATE | ₹ 8 | 2 | ||
| 14 | 905200201200 | SEAT PIPE | ₹ 17 | 1 | ||
| 15 | BK7F12780000 | MOLD | ₹ 21 | 2 | ||
| 16 | BK7WF4610100 | CAP ASSY WITH LOCK | ₹ 1255 | 1 | ||
| 17 | 901100580600 | BOLT HEXAGON SOCKET HEAD | ₹ 12 | 3 | ||
| 18 | 913320501000 | BOLT | ₹ 2 | 1 | ||
| 19 | B0TE39070100 | FUEL PUMP COMP. | ₹ 6072 | 1 | ||
| 20 | B0TH57520000 | SENDER UNIT ASSY FUEL METER | ₹ 878 | 1 | ||
| 21 | B7JE39150000 | FILTER | ₹ 211 | 1 | ||
| 22 | B0TF44910000 | BRACKET FUEL PUMP | ₹ 90 | 1 | ||
| 23 | 2GSF414G0100 | SEAL | ₹ 160 | 1 | ||
| 24 | 913320501000 | BOLT | ₹ 2 | 4 | ||
| 25 | B0TE39710000 | PIPE FUEL 1 | ₹ 523 | 1 | ||
| 26 | BK7F43120000 | PIPE 2 | ₹ 56 | 1 | ||
| 27 | 904800155800 | GROMMET | ₹ 10 | 3 | ||
| 28A | BPDXF41G10P0 | COVER, TANK | ₹ 1313 | 1 | FOR SMX | |
| 28B | BPDXF41G00P3 | COVER, TANK | ₹ 1313 | 1 | FOR BWC1 | |
| 29 | B97F15680000 | LABEL WARNING | ₹ 9 | 1 | ||
| 30 | BGNF42440000 | GRAPHIC, FUEL TANK 1 | ₹ 100 | 1 | ||
| 31 | BGPF817K0000 | LABEL FUEL | ₹ 10 | 1 | ||
| 32 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 33 | 90109068B200 | BOLT | ₹ 13 | 2 | ||
| 34A | BCWXF41210P4 | TANK SIDE COVER 1 | ₹ 2000 | 1 | FOR SMX | |
| 34B | BCWXF41210P5 | TANK SIDE COVER 1 | ₹ 2078 | 1 | FOR BWC1 | |
| 35 | B74F414B1000 | EMBLEM | ₹ 260 | 1 | ||
| 36 | BCWF414G0000 | SEAL | ₹ 18 | 1 | ||
| 37 | 904801280500 | GROMMET | ₹ 8 | 1 | ||
| 38 | 903870689900 | COLLAR | ₹ 30 | 1 | ||
| 39 | 901590501100 | SCREW WITH WASHER | ₹ 70 | 1 | ||
| 40 | 901090501400 | BOLT | ₹ 15 | 1 | ||
| 41 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 42 | 901600581200 | SCREW ROUND TAPPING | ₹ 10 | 1 | ||
| 43 | 902020518000 | WASHER PLATE | ₹ 28 | 1 | ||
| 44 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 45A | BCWXF41310P4 | TANK SIDE COVER 2 | ₹ 2000 | 1 | FOR SMX | |
| 45B | BCWXF41310P5 | TANK SIDE COVER 2 | ₹ 2078 | 1 | FOR BWC1 | |
| 46 | B74F414B1000 | EMBLEM | ₹ 260 | 1 | ||
| 47 | BCWF414E0000 | SEAL 2 | ₹ 18 | 1 | ||
| 48 | 904801280500 | GROMMET | ₹ 8 | 1 | ||
| 49 | 903870689900 | COLLAR | ₹ 30 | 1 | ||
| 50 | 901590501100 | SCREW WITH WASHER | ₹ 70 | 1 | ||
| 51 | 901090501400 | BOLT | ₹ 15 | 1 | ||
| 52 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 53 | 901600581200 | SCREW ROUND TAPPING | ₹ 10 | 1 | ||
| 54 | 902020518000 | WASHER PLATE | ₹ 28 | 1 | ||
| 55 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 56 | 2FBF41701100 | CANISTER ASSY | ₹ 505 | 1 | ||
| 57 | 970120601400 | BOLT | ₹ 5 | 2 | ||
| 58 | 903870604800 | COLLAR | ₹ 7 | 2 | ||
| 59 | B9EF43130000 | PIPE 3 | ₹ 60 | 1 | ||
| 60 | 904670900600 | CLIP | ₹ 5 | 2 | ||
| 61 | BCWF43140000 | PIPE 4 | ₹ 12 | 1 | ||
| 62 | 904671100900 | CLIP | ₹ 37 | 1 | ||
| 63 | 904670900600 | CLIP | ₹ 5 | 1 | ||
| 64 | B7JF44210100 | VALVE, CHECK | ₹ 115 | 1 | ||
| 65 | BCWF43160000 | PIPE 6 | ₹ 12 | 1 | ||
| 66 | 904670900600 | CLIP | ₹ 5 | 2 | ||
| 67 | 2FBF43150000 | PIPE 5 | ₹ 25 | 1 | ||
| 68 | 90467100A100 | CLIP | ₹ 3 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Fuel is the lifeblood of the high compression engine found on your Yamaha R15 V4 through its advanced liquid cooled four valve setup. Our Fuel Tank catalog assembly includes the primary Fuel Tank Comp along with specialized items like the high pressure Fuel Pump plus Sender Unit. This collection features original Filter kits plus Cap assemblies with Locks alongside every Tank Side Cover plus Graphic kit meant for restoration. Authentic Gaskets plus Grommets plus specialized Collar kits provide a perfect vibration resistant mount that prevents fuel leaks or rattles during high speed operation. Every Pipe plus Canister Assy along with the Check Valve ensures that the emissions system plus fuel flow stay within strict factory specifications. R15 V4 owners value these original body parts because they preserve the iconic aggressive muscle look of the tank while protecting the internal pump. Secure your fuel delivery system with genuine components plus keep your engine fed with pure fuel plus absolute reliability today across India.
