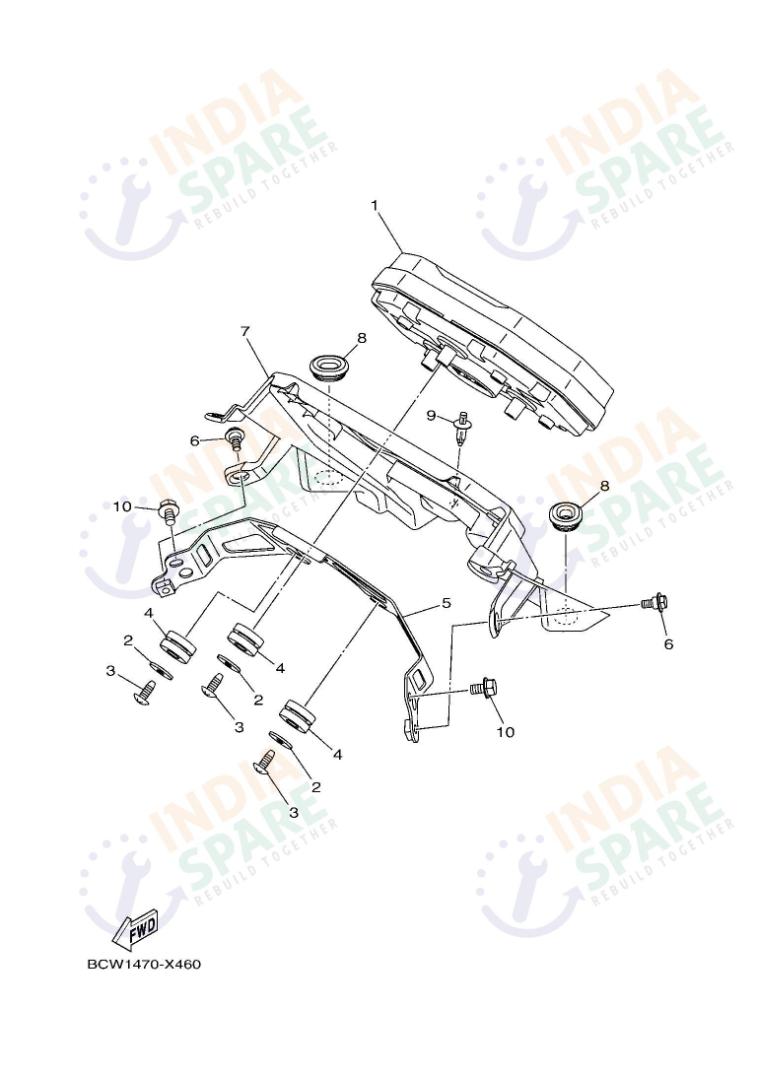

METER
DM45
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BCWH35000100 | SPEEDOMETER ASSY | ₹ 8088 | 1 | ||
| 2 | 902010503600 | WASHER | ₹ 2 | 3 | ||
| 3 | 977075001400 | SCREW TAPPING | ₹ 15 | 3 | ||
| 4 | 904801481600 | GROMMET | ₹ 8 | 3 | ||
| 5 | BCWH35190000 | BRACKET METER | ₹ 193 | 1 | ||
| 6 | 958170601000 | BOLT FLANGE | ₹ 8 | 2 | ||
| 7 | BCWH35590000 | COVER METER | ₹ 87 | 1 | ||
| 8 | 904800155900 | GROMMET | ₹ 10 | 2 | ||
| 9 | 902690681300 | RIVET | ₹ 8 | 1 | ||
| 10 | 901090501400 | BOLT | ₹ 15 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Real time telemetry during every aggressive corner entry requires the absolute accuracy of the digital instruments found in our authentic Meter catalog for the Yamaha R15 V4. This sophisticated assembly contains the primary Speedometer Assy plus original high strength Bracket kits plus official Meter Covers needed for India today. Every detailed part within this catalog including high quality specialized Gaskets plus original Rivets plus specialized Washers provides everything for your instrument dash maintenance during long service intervals. Authentic Meter casing hardware ensures that your digital display remains isolated from road shocks plus intense motor vibration preventing data flickers while you ride throughout Indian highways. Using genuine Yamaha R15 V4 spares ensures that the electronics interface matches the factory settings for your fuel level plus gear position plus engine revolution data perfectly every time. Protect your vital ride information by choosing original instrument clusters plus casings plus seals designed for surviving thousands of kilometers in intense dust plus summer sun today.
