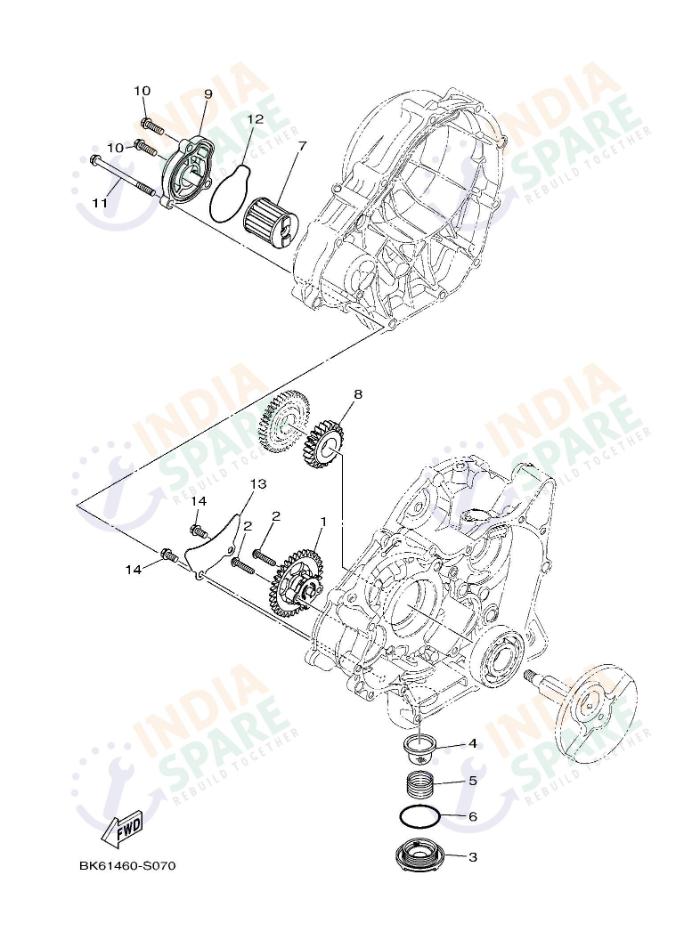

OIL PUMP
DM45
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BK7E33000000 | OIL PUMP ASSY | ₹ 235 | 1 | ||
| 2 | 901110503500 | BOLT HEX. SOCKET BUTTON | ₹ 17 | 2 | ||
| 3 | 38BE53510000 | PLUG DRAIN | ₹ 82 | 1 | ||
| 4 | 38BE34110000 | STRAINER OIL | ₹ 10 | 1 | ||
| 5 | 905011857600 | SPRING COMPRESSION | ₹ 14 | 1 | ||
| 6 | 932103480500 | O-RING | ₹ 23 | 1 | ||
| 7 | 38BE34400100 | ELEMENT ASSY OIL CLEANER | ₹ 247 | 1 | ||
| 8 | 2PVE33240000 | GEAR PUMP DRIVE | ₹ 147 | 1 | ||
| 9 | 38BE34470000 | COVER OIL ELEMENT - MAT BLACK | ₹ 199 | 1 | ||
| 10 | 950220602000 | BOLT FLANGE | ₹ 15 | 2 | ||
| 11 | 950220608000 | BOLT FLANGE | ₹ 23 | 1 | ||
| 12 | 932105480600 | O-RING | ₹ 19 | 1 | ||
| 13 | 38BE33270000 | COVER PUMP GEAR | ₹ 14 | 1 | ||
| 14 | 950220601200 | BOLT FLANGE | ₹ 8 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Reliable lubrication for every spinning bearing plus high speed piston remains the absolute priority for the liquid cooled heart of the Yamaha R15 V4 today. The Oil Pump catalog provides essential original components including the Oil Pump Assy along with specialized Filter plus Strainer units for consistent oil pressure maintenance. Within this detailed section including various Oil Element Covers alongside Pump Drive Gears plus specific Bolts we offer total lubrication system maintenance kits. Genuine oil pumps provide the precise flow rate needed to cool the high compression cylinder head while providing fresh oil to the gearbox components. Using authentic Gaskets plus specialized O-Rings plus original Element Assy gear protects the lubrication circuit from pressure drops or catastrophic engine failures on the open highway. R15 V4 enthusiasts depend on original factory pumps because the engine reaches extreme rotational speeds where lubrication quality represents the line between performance plus failure. Secure the longevity of your machine by investing in authentic oil circuit components today for India.
