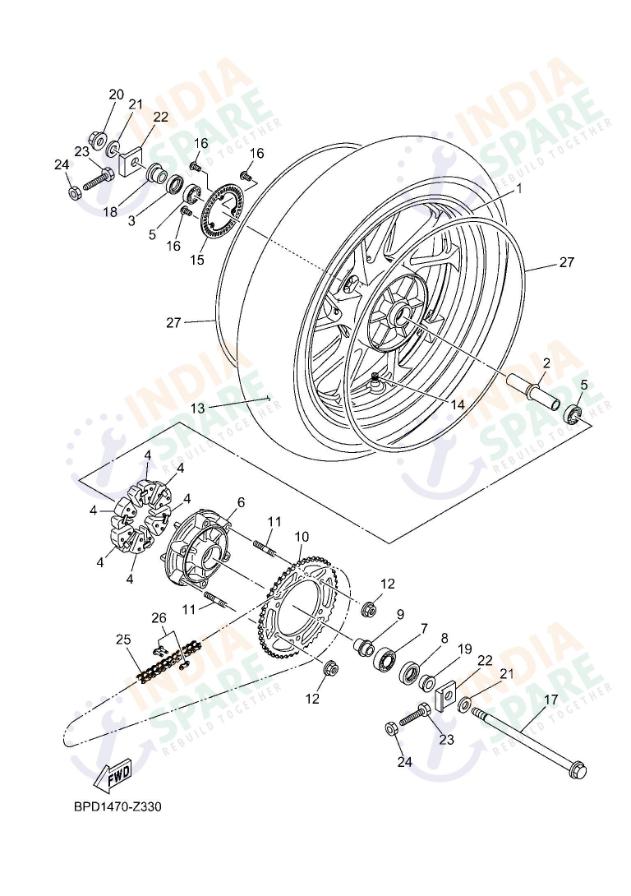

REAR WHEEL
DM45
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1A | BPDF53380033 | CAST WHEEL, REAR | ₹ 6513 | 1 | FOR SMX | |
| 1B | BPDF533800P1 | CAST WHEEL, REAR | ₹ 6545 | 1 | FOR BWC1 | |
| 2 | B97F530S0000 | COLLAR ASSY | ₹ 49 | 1 | ||
| 3 | 931062280800 | OIL SEAL | ₹ 9 | 1 | ||
| 4 | B97F53640000 | DAMPER | ₹ 25 | 6 | ||
| 5 | 93306202XT00 | BEARING ( USE IN REAR WHEEL H | ₹ 185 | 2 | ||
| 6 | B97F53660000 | CLUTCH HUB | ₹ 456 | 1 | ||
| 7 | 93306054Y500 | BEARING | ₹ 170 | 1 | ||
| 8 | 931062680100 | SEAL OIL | ₹ 23 | 1 | ||
| 9 | B97F53760000 | COLLAR WHEEL | ₹ 41 | 1 | ||
| 10 | BK7F54480000 | SPROCKET, DRIVEN (48T) | ₹ 0 | 1 | ||
| 11 | 901160882600 | BOLT STUD | ₹ 31 | 6 | ||
| 12 | 956020820000 | NUT U FLANGE | ₹ 11 | 6 | ||
| 13 | 941141781300 | TIRE | ₹ 4567 | 1 | ||
| 14 | 939000082400 | VALVE RIM | ₹ 19 | 1 | ||
| 15 | B9EF517G0000 | ROTOR SENSOR | ₹ 107 | 1 | ||
| 16 | 901490501000 | SCREW | ₹ 25 | 3 | ||
| 17 | BK7F53810000 | AXLE WHEEL | ₹ 190 | 1 | ||
| 18 | B97F53770000 | COLLAR WHEEL | ₹ 31 | 1 | ||
| 19 | B97F53830000 | COLLAR WHEEL | ₹ 38 | 1 | ||
| 20 | 956021420000 | NUT U FLANGE | ₹ 32 | 1 | ||
| 21 | 902011581400 | WASHER PLAIN | ₹ 27 | 2 | ||
| 22 | 1CKF53880000 | PULLER CHAIN 1 | ₹ 55 | 2 | ||
| 23 | 901010800600 | BOLT | ₹ 18 | 2 | ||
| 24 | 953020870000 | NUT | ₹ 3 | 2 | ||
| 25 | 94568L612700 | CHAIN (DID428VIM-X2 127LL) | ₹ 0 | 1 | ||
| 26 | 94668L602100 | CHAIN JOINT | ₹ 150 | 1 | ||
| 27 | 21CF531BE000 | EMBLEM WHEEL | ₹ 0 | 2 | FOR SMX |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Uncompromising traction for your Yamaha R15 V4 requires the structural integrity found in our Rear Wheel catalog assembly containing every hub plus rim part. This specific section features the original Cast Wheel for the rear alongside the essential Oil Seals plus Dampers required for smooth power transmission. Including the original Clutch Hub plus high quality Bearings along with various Collar units we provide everything needed for a wheel bearing overhaul. Accurate items like the Rotor Sensor plus Wheel Axle plus Rim Valves ensure that your speed telemetry plus tire pressure stay perfectly within factory specifications. Every Stud plus Nut plus Washer found here represents the high tensile hardware necessary to secure the wheel during intense high speed highway runs. Replacing worn cush dampers or rusted bearings with genuine Yamaha R15 V4 parts prevents rear end instability plus ensures the smooth delivery of power from the chain. Trust original wheel components for absolute safety plus handling excellence during every ride.
