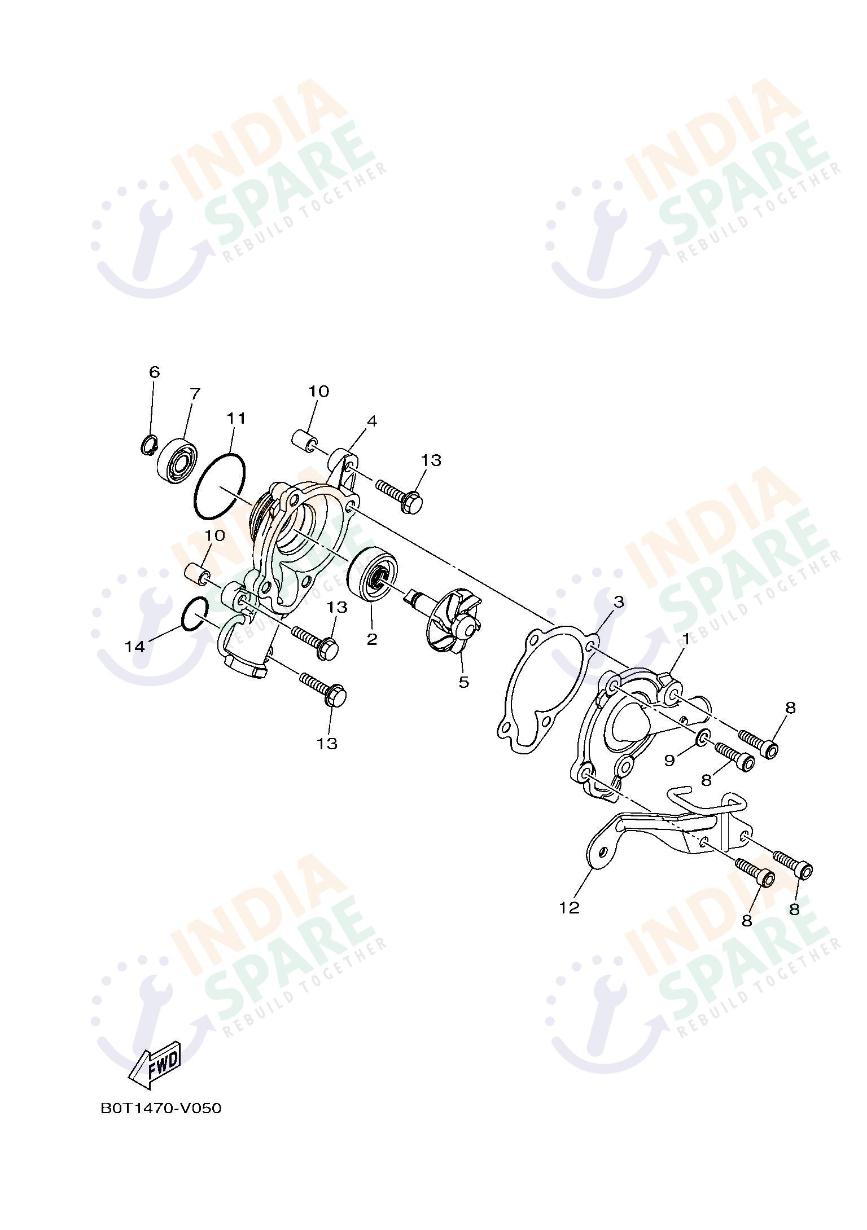

WATER PUMP
DM45
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BK7E24220000 | COVER HOUSING | ₹ 121 | 1 | ||
| 2 | 931031080100 | OIL SEAL | ₹ 1220 | 1 | ||
| 3 | 2DPE24280000 | GASKET HOUSING COVER 2 | ₹ 106 | 1 | ||
| 4 | BK7E11850000 | COVER CYLINDER HEAD SIDE 3 | ₹ 300 | 1 | ||
| 5 | BK7E24500000 | IMPELLER SHAFT ASSY | ₹ 144 | 1 | ||
| 6 | BK7E28420000 | CIRCLIP | ₹ 22 | 1 | ||
| 7 | 93306000Y300 | BEARING | ₹ 184 | 1 | ||
| 8 | BK7E26150000 | BOLT | ₹ 45 | 4 | ||
| 9 | BK7E24350000 | GASKET | ₹ 68 | 1 | ||
| 10 | BK7E35160000 | PIN DOWEL | ₹ 64 | 2 | ||
| 11 | 932103980300 | O-RING | ₹ 46 | 1 | ||
| 12 | BK7E24430000 | STAY | ₹ 93 | 1 | ||
| 13 | 950220602500 | BOLT FLANGE | ₹ 11 | 3 | ||
| 14 | 932101980900 | O RING | ₹ 4 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Sustained engine cooling depends on the high pressure circulation of fluid provided by the precision built original plus reliable Yamaha R15 V4 Water Pump. Our Water Pump catalog features the primary Housing covers alongside the specialized Impeller Shaft plus high speed Bearings needed for internal coolant flow today. Every assembly including original Gaskets plus Oil Seals plus O-Rings found here ensures that the coolant remains perfectly isolated from the internal engine oil circuit. Precision items including Pin Dowels plus Circlip kits plus specialized Bolts provide a silent plus durable mechanical drive for the water pump within the casing. R15 V4 riders recognize that maintaining the water pump with authentic spares preserves the efficiency of the cooling system even under extreme high rev conditions. Genuine impellers feature specific blade geometry designed for maximum flow at various RPM ranges ensuring consistent temperature regulation during every single mountain road adventure. Protect your motor from thermal stress by selecting authorized factory pump parts designed for absolute cooling performance.
