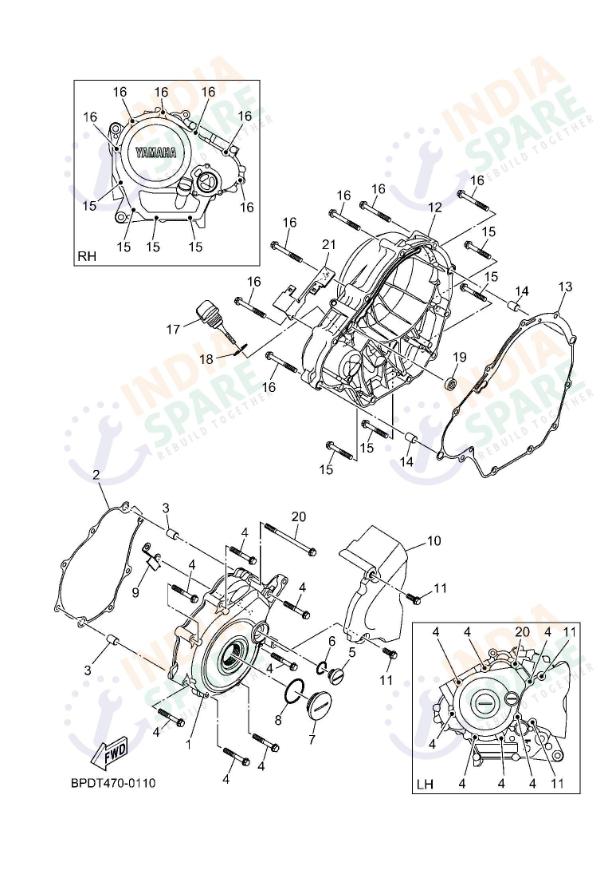

CRANKCASE COVER 1
DM46
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BK7E54110000 | COVER CRANKCASE 1 | ₹ 497 | 1 | ||
| 2 | B0TE54510000 | GASKET CRANKCASE COVER 1 | ₹ 18 | 1 | ||
| 3 | 918101480900 | PIN DOWEL | ₹ 10 | 2 | ||
| 4 | 950220604000 | BOLT FLANGE | ₹ 18 | 7 | ||
| 5 | 903401482400 | PLUG STRAIGHT SCREW-MATBLACK2 | ₹ 18 | 1 | ||
| 6 | 932101481200 | O-RING | ₹ 11 | 1 | ||
| 7 | 903403282300 | PLUG STRAIGHT SCREW-MATBLACK 2 | ₹ 18 | 1 | ||
| 8 | 932103281300 | O-RING | ₹ 18 | 1 | ||
| 9 | 2PVE51130000 | PLATE | ₹ 9 | 1 | ||
| 10 | BK7E54180000 | COVER CHAIN CASE | ₹ 177 | 1 | ||
| 11 | 950220601600 | BOLT FLANGE | ₹ 11 | 2 | ||
| 12 | BK7E54210000 | COVER CRANKCASE 2 | ₹ 899 | 1 | ||
| 13 | B0TE54610000 | GASKET CRANKCASE COVER 2 | ₹ 252 | 1 | ||
| 14 | 918101480900 | PIN DOWEL | ₹ 10 | 2 | ||
| 15 | 950220604000 | BOLT FLANGE | ₹ 18 | 4 | ||
| 16 | 950220605000 | BOLT FLANGE | ₹ 17 | 6 | ||
| 17 | BK7E53620000 | PLUG OIL LEVEL | ₹ 31 | 1 | ||
| 18 | 932101980900 | O RING | ₹ 4 | 1 | ||
| 19 | 931011080500 | OIL SEAL | ₹ 28 | 1 | ||
| 20 | 950220609000 | BOLT FLANGE | ₹ 27 | 1 | ||
| 21 | BGMH18450000 | PLATE | ₹ 46 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Protective casing combined with perfect sealing maintains the oil pressure plus thermal health inside the sophisticated high revving engine of the Yamaha R15 V4 today. Our Crankcase Cover catalog assembly contains original items like the Primary Cover units alongside every specialized Gasket plus Seal needed for internal engine protection. This detailed section features the Gasket Crankcase Cover kits alongside various Flange Bolts plus Oil level plugs required for standard maintenance during a full service. Authentic oil seals plus specialized plate components prevent harmful leaks that could contaminate the exterior body or cause internal lubrication issues within the motor. R15 V4 owners value these original parts because they provide a perfect flush fit against the main engine block ensuring silence plus cleanliness during every ride. Every Flange Bolt plus O-Ring kit included meets strict pressure tolerance requirements for the modern liquid cooled high compression engine performance characteristics today. Keep your engine tight plus perfectly sealed with authorized factory cover components plus seals designed for durability.
