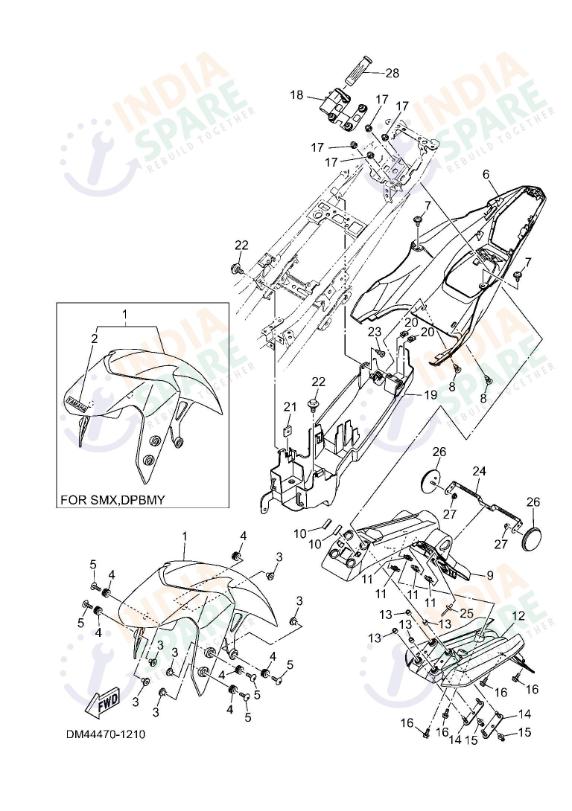

FENDER
DM46
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1A | BNHXF15100P4 | FR.FENDER SUB ASSY | ₹ 1530 | 1 | FOR DPBMY | |
| 1B | BCWF151100PC | FR.FENDER SUB ASSY | ₹ 1600 | 1 | FOR MYWP1 | |
| 2 | 5TMF47862000 | EMBLEM - FAIRY SILVER | ₹ 28 | 1 | FOR DPBMY | |
| 3 | 90387068C800 | COLLAR | ₹ 16 | 6 | ||
| 4 | 904801280500 | GROMMET | ₹ 8 | 6 | ||
| 5 | 901110613700 | BOLT HEX. SOCKET BUTTON | ₹ 35 | 5 | ||
| 6 | BCWF16110000 | FENDER REAR | ₹ 170 | 1 | ||
| 7 | 901590681700 | SCREW, WITH WASHER | ₹ 10 | 2 | ||
| 8 | 902690681300 | RIVET | ₹ 8 | 2 | ||
| 9 | BK7F16290100 | GUARD MUD | ₹ 161 | 1 | ||
| 10 | BK7F834E0000 | DAMPER 1 | ₹ 14 | 2 | ||
| 11 | 90183050A700 | NUT SPRING | ₹ 22 | 4 | ||
| 12 | BK7F16170000 | BRACKET FENDER | ₹ 285 | 1 | ||
| 13 | 90387066J900 | COLLAR | ₹ 7 | 4 | ||
| 14 | BK7F16130000 | STAY FENDER 1 | ₹ 50 | 2 | ||
| 15 | 902690681300 | RIVET | ₹ 8 | 2 | ||
| 16 | 901190502200 | BOLT WITH WASHER | ₹ 3 | 4 | ||
| 17 | 901850680100 | NUT SELF-LOCKING | ₹ 5 | 4 | ||
| 18 | BCWF16420000 | GUARD FLAP | ₹ 47 | 1 | ||
| 19 | BGNF162R0000 | FENDER 2 | ₹ 295 | 1 | ||
| 20 | 901830403900 | NUT SPRING | ₹ 110 | 2 | ||
| 21 | 901730680600 | NUT, SQUARE | ₹ 11 | 1 | ||
| 22 | 901090622000 | BOLT | ₹ 19 | 2 | ||
| 23 | 902690681300 | RIVET | ₹ 8 | 1 | ||
| 24 | BK7F16410000 | BRACKET REFLECTOR | ₹ 35 | 1 | ||
| 25 | 902674884500 | RIVET BLIND | ₹ 9 | 1 | ||
| 26 | 2FCH51110000 | REFLECTOR FRONT 1 | ₹ 23 | 2 | ||
| 27 | 957070550000 | NUT FLANGE | ₹ 1 | 2 | ||
| 28 | 36LF81511100 | GRIP DRIVER | ₹ 9 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Shielding the internal mechanics from road spray plus dirt while enhancing the aerodynamic profile remains the primary function of every Yamaha R15 V4 fender. Our Fender assembly catalog features the original Front Fender Sub Assy along with various Rear Fender components meant for the sportier look you desire. Every kit includes original Brackets plus Stay Fenders alongside specialized Grommets plus Collar kits meant for high frequency vibration resistance throughout your motorcycle. Specialized mud guard items plus Guard Flap gear provide protection for the radiator plus rear monoshock from stones plus flying debris on Indian highways. Using genuine Yamaha R15 V4 fenders ensures that the mounting holes align perfectly with the suspension hardware without the risk of loose panels. Every original rivet plus specialized Nut Spring found here preserves the silence of the bodywork during high revving engine vibrations at any gear. Maintain the clean look plus protective qualities of your sportbike with these authentic factory body parts designed specifically for your model year today.
