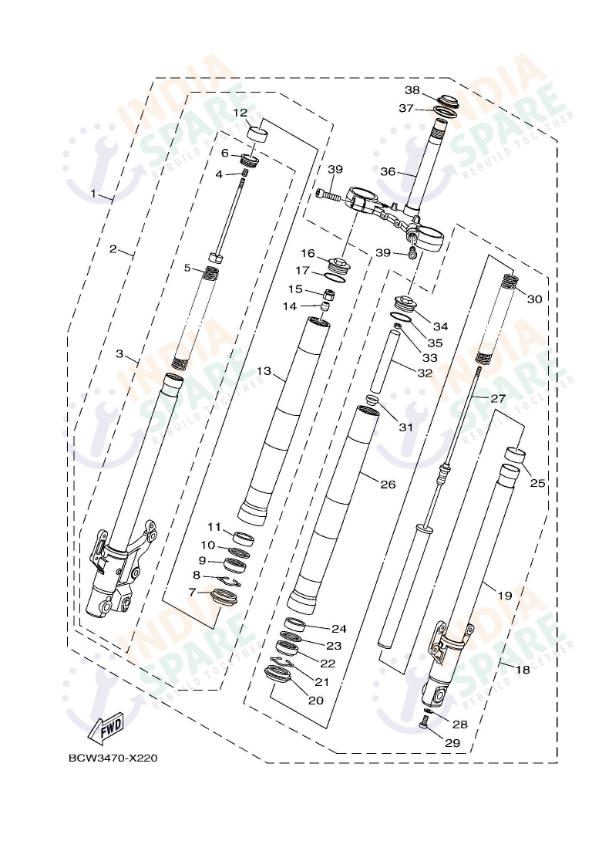

FRONT FORK
DM46
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BCWF31001000 | FRONT FORK ASSY | ₹ 22300 | 1 | ||
| 2 | BCWF31031000 | FRONT FORK ASSY (R.H) | ₹ 10997 | 1 | ||
| 3 | BCWF31201000 | INNER TUBE COMP.2 | ₹ 2971 | 1 | ||
| 4 | BCWF22220000 | SPRING SHOCK ABSORBER 2 | ₹ 27 | 1 | ||
| 5 | BCWF31410000 | SPRING FRONT FORK | ₹ 302 | 1 | ||
| 6 | BCWF319U0000 | CAP | ₹ 97 | 1 | ||
| 7 | B48F31440000 | SEAL DUST | ₹ 240 | 1 | ||
| 8 | BCWF31530000 | RING SNAP | ₹ 25 | 1 | ||
| 9 | BK6F31450000 | OIL SEAL | ₹ 313 | 1 | ||
| 10 | BCWF31490000 | WASHER SPRING UPPER | ₹ 34 | 1 | ||
| 11 | BCWF31250000 | METAL SLIDE 1 | ₹ 94 | 1 | ||
| 12 | BCWF31710000 | PISTON FRONT FORK | ₹ 120 | 1 | ||
| 13 | BCWF31260000 | TUBE OUTER | ₹ 4053 | 1 | ||
| 14 | BCWF332K0000 | BUMP, STOP | ₹ 37 | 1 | ||
| 15 | BCWF33570000 | NUT | ₹ 24 | 1 | ||
| 16 | BCWF31111000 | BOLT CAP | ₹ 361 | 1 | ||
| 17 | BCWF31880000 | O-RING | ₹ 36 | 1 | ||
| 18 | BCWF31021000 | FRONT FORK ASSY (L.H) | ₹ 12297 | 1 | ||
| 19 | BCWF31101000 | INNER TUBE COMP.1 | ₹ 2971 | 1 | ||
| 20 | B48F31440000 | SEAL DUST | ₹ 240 | 1 | ||
| 21 | BCWF31530000 | RING SNAP | ₹ 25 | 1 | ||
| 22 | BK6F31450000 | OIL SEAL | ₹ 313 | 1 | ||
| 23 | BCWF31490000 | WASHER SPRING UPPER | ₹ 34 | 1 | ||
| 24 | BCWF31250000 | METAL SLIDE 1 | ₹ 94 | 1 | ||
| 25 | BCWF31710000 | PISTON FRONT FORK | ₹ 120 | 1 | ||
| 26 | BCWF31260000 | TUBE OUTER | ₹ 4053 | 1 | ||
| 27 | BCWF31700000 | CYLINDER COMP. FRONT FORK | ₹ 2112 | 1 | ||
| 28 | 2FSF31580000 | GASKET | ₹ 15 | 1 | ||
| 29 | BCWF31810000 | BOLT HEXAGON SOCKET HEAD | ₹ 36 | 1 | ||
| 30 | BCWF31410000 | SPRING FRONT FORK | ₹ 302 | 1 | ||
| 31 | BCWF31170000 | GUIDE, SPRING | ₹ 39 | 1 | ||
| 32 | BCWF31180000 | SPACER | ₹ 85 | 1 | ||
| 33 | BCWF33570000 | NUT | ₹ 24 | 1 | ||
| 34 | BCWF31111000 | BOLT CAP | ₹ 361 | 1 | ||
| 35 | BCWF31880000 | O-RING | ₹ 36 | 1 | ||
| 36 | BCWF33400000 | UNDER BRACKET COMP. | ₹ 2544 | 1 | ||
| 37 | 5YYF34620000 | SEAL DUST STEERING | ₹ 23 | 1 | ||
| 38 | 2FBF38750000 | .BEARING, STEERING LOWER | ₹ 0 | 1 | ||
| 39 | BCWF33460000 | BOLT 1 | ₹ 55 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Absorbing the road imperfections while maintaining a precise line defines the high technology front suspension system of the modern Yamaha R15 V4 in India. The Front Fork catalog assembly includes every required internal plus external part like the Inner Tube kits plus specialized Springs plus high quality Oil Seals. Included are essential items like the Dust Seal kits plus Snap Rings along with Piston plus Cylinder components required for a suspension rebuild. This catalog covers both Right Hand plus Left Hand fork units including the Under Bracket Comp alongside specialized Seal Dust steering kits for safety. Authentic fork seals plus bushes prevent oil leaks that could contaminate the front brake system while ensuring the smooth motion of the suspension. R15 V4 enthusiasts understand that maintaining the front forks with original spares preserves the surgical handling plus track performance that makes the bike legendary. Trust our genuine fork assembly components to keep your front end planted plus responsive plus comfortable on any asphalt surface you ride.
