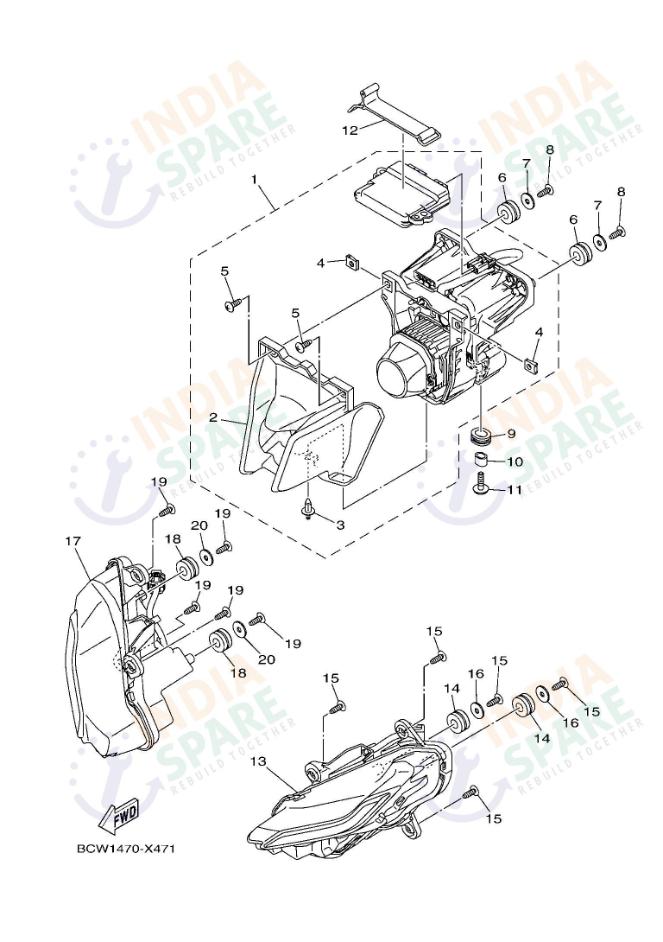

HEADLIGHT
DM46
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BCWH43000200 | HEADLIGHT ASSY | ₹ 13995 | 1 | ||
| 2 | BCWF838E0000 | COVER HEADLIGHT | ₹ 237 | 1 | ||
| 3 | 902690681600 | RIVET | ₹ 12 | 1 | ||
| 4 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 5 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 2 | ||
| 6 | 904801481600 | GROMMET | ₹ 8 | 2 | ||
| 7 | 902010503600 | WASHER | ₹ 2 | 2 | ||
| 8 | 977025001600 | SCREW TAPPING | ₹ 10 | 2 | ||
| 9 | 904800181100 | GROMMET | ₹ 8 | 1 | ||
| 10 | 20PF17490000 | COLLAR | ₹ 4 | 1 | ||
| 11 | 901490682900 | SCREW | ₹ 25 | 1 | ||
| 12 | 20PF811G0000 | BAND | ₹ 20 | 1 | ||
| 13 | BCWH43010000 | PILOT LIGHT ASSY 1 | ₹ 976 | 1 | ||
| 14 | 904801481600 | GROMMET | ₹ 8 | 2 | ||
| 15 | 977025001600 | SCREW TAPPING | ₹ 10 | 5 | ||
| 16 | 902010503600 | WASHER | ₹ 2 | 2 | ||
| 17 | BCWH43020000 | PILOT LIGHT ASSY 2 | ₹ 976 | 1 | ||
| 18 | 904801481600 | GROMMET | ₹ 8 | 2 | ||
| 19 | 977025001600 | SCREW TAPPING | ₹ 10 | 5 | ||
| 20 | 902010503600 | WASHER | ₹ 2 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Pierce the darkness with the original brilliance that defines the Yamaha R15 V4 character plus provides superior nighttime navigation on every journey. Our Headlight assembly catalog focuses on the illumination technology plus housing kits meant to maintain the predatory stare of your favorite motorcycle. Including the primary Headlight Assy plus Pilot Light setups along with protective Gaskets plus Screw kits we provide total front lighting solutions. Precision items like the Headlight Cover plus various Rivets along with Collar kits ensure that the assembly remains secure during high frequency vibrations. Quality optical materials provide the best beam throw for highways plus winding roads to ensure the rider perceives every obstacle well in advance. These original Yamaha R15 V4 parts protect against lens fogging plus interior debris through superior weather sealing technology developed for tough environments. Investing in authentic front lighting spares preserves both the beauty plus safety standards that make this motorcycle an icon on Indian asphalt.
