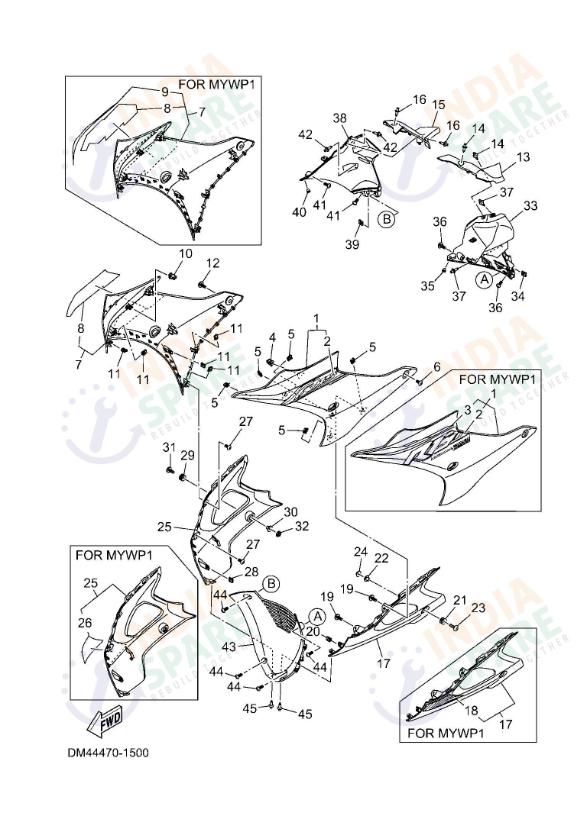

LEG SHIELD
DM46
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1A | BCWXF83600P9 | PANEL COMP 1 | ₹ 1152 | 1 | FOR DPBMY | |
| 1B | BCWXF83600PA | PANEL COMP 1 | ₹ 1336 | 1 | FOR MYWP1 | |
| 2A | DM4F83933000 | GRAPHIC 3 | ₹ 175 | 1 | FOR DPBMY | |
| 2B | DM4F83935000 | GRAPHIC 3 | ₹ 550 | 1 | FOR MYWP1 | |
| 3 | DM4F839E1000 | GRAPHIC 8 | ₹ 100 | 1 | FOR MYWP1 | |
| 4 | 904640701800 | CLAMP | ₹ 6 | 1 | ||
| 5 | 901830580700 | NUT SPRING | ₹ 9 | 5 | ||
| 6 | 901110685900 | BOLT HEX. SOCKET BUTTON | ₹ 7 | 1 | ||
| 7A | BCWXF83G00P8 | PANEL COMP 2 | ₹ 1152 | 1 | FOR DPBMY | |
| 7B | BCWXF83G00P9 | PANEL COMP 2 | ₹ 1336 | 1 | FOR MYWP1 | |
| 8A | DM4F83943000 | GRAPHIC 4 | ₹ 175 | 1 | FOR DPBMY | |
| 8B | DM4F83945000 | GRAPHIC 4 | ₹ 550 | 1 | FOR MYWP1 | |
| 9 | DM4F839F1000 | GRAPHIC 9 | ₹ 100 | 1 | FOR MYWP1 | |
| 10 | 904640701800 | CLAMP | ₹ 6 | 1 | ||
| 11 | 901830580700 | NUT SPRING | ₹ 9 | 5 | ||
| 12 | 901110685900 | BOLT HEX. SOCKET BUTTON | ₹ 7 | 1 | ||
| 13 | BCWF837L0000 | PANEL CONSOLE 1 | ₹ 66 | 1 | ||
| 14 | 902690681300 | RIVET | ₹ 8 | 2 | ||
| 15 | BCWF837M0000 | PANEL CONSOLE 2 | ₹ 66 | 1 | ||
| 16 | 902690681300 | RIVET | ₹ 8 | 2 | ||
| 17A | BCWF838500P1 | COVER LOWER | ₹ 1680 | 1 | FOR DPBMY | |
| 17B | DM4XF83800PB | UNDER COVER ASSY 2 | ₹ 1780 | 1 | FOR MYWP1 | |
| 18 | DM4F83980000 | GRAPHIC 5 | ₹ 75 | 1 | FOR MYWP1 | |
| 19 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 2 | ||
| 20 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 21 | 904801280500 | GROMMET | ₹ 8 | 1 | ||
| 22 | 903870689900 | COLLAR | ₹ 30 | 1 | ||
| 23 | 901490682900 | SCREW | ₹ 25 | 1 | ||
| 24 | 901790684100 | NUT | ₹ 4 | 1 | ||
| 25A | BCWF839500P1 | COVER UNDER | ₹ 1680 | 1 | FOR DPBMY | |
| 25B | DM4XF83900P9 | UNDER COVER ASSY 2 | ₹ 1780 | 1 | FOR MYWP1 | |
| 26 | DM4F83990000 | GRAPHIC 6 | ₹ 75 | 1 | FOR MYWP1 | |
| 27 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 2 | ||
| 28 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 29 | 904801280500 | GROMMET | ₹ 8 | 1 | ||
| 30 | 903870689900 | COLLAR | ₹ 30 | 1 | ||
| 31 | 901490682900 | SCREW | ₹ 25 | 1 | ||
| 32 | 901790684100 | NUT | ₹ 4 | 1 | ||
| 33 | BCWF836K0000 | PANEL INNER 1 | ₹ 132 | 1 | ||
| 34 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 35 | 903380718000 | PLUG | ₹ 84 | 1 | ||
| 36 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 2 | ||
| 37 | 902690681300 | RIVET | ₹ 8 | 2 | ||
| 38 | BCWF836L0000 | PANEL INNER 2 | ₹ 132 | 1 | ||
| 39 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 40 | 903380718000 | PLUG | ₹ 84 | 1 | ||
| 41 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 2 | ||
| 42 | 902690681300 | RIVET | ₹ 8 | 2 | ||
| 43 | BCWF836M0000 | PANEL INNER 3 | ₹ 286 | 1 | ||
| 44 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 4 | ||
| 45 | 902690681300 | RIVET | ₹ 8 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Safeguarding the internal mechanics of your Yamaha R15 V4 fairing architecture depends on the perfect fit of the leg shield panels. This catalog section features a vast collection of bodywork including the primary Panel Comp units plus original Graphic kits plus specialized Console units. Every plastic component found within this assembly is crafted for high temperature resistance near the engine while providing essential aerodynamic guidance. Using genuine Panels including various Under Covers plus Inner Panel units preserves the streamlined nature of your sportbike for track or street. Every Rivet plus Nut Spring plus specialized Screw found within the Leg Shield assembly provides a secure fastening system meant for rugged Indian road conditions. Replacing cracked fairings with original Yamaha R15 V4 parts ensures that the factory lines plus paint matching remain consistent across your machine. Preserve the aggressive style plus cooling efficiency of your motorcycle by investing in these original bodywork components meant for durability plus precision fitment.
