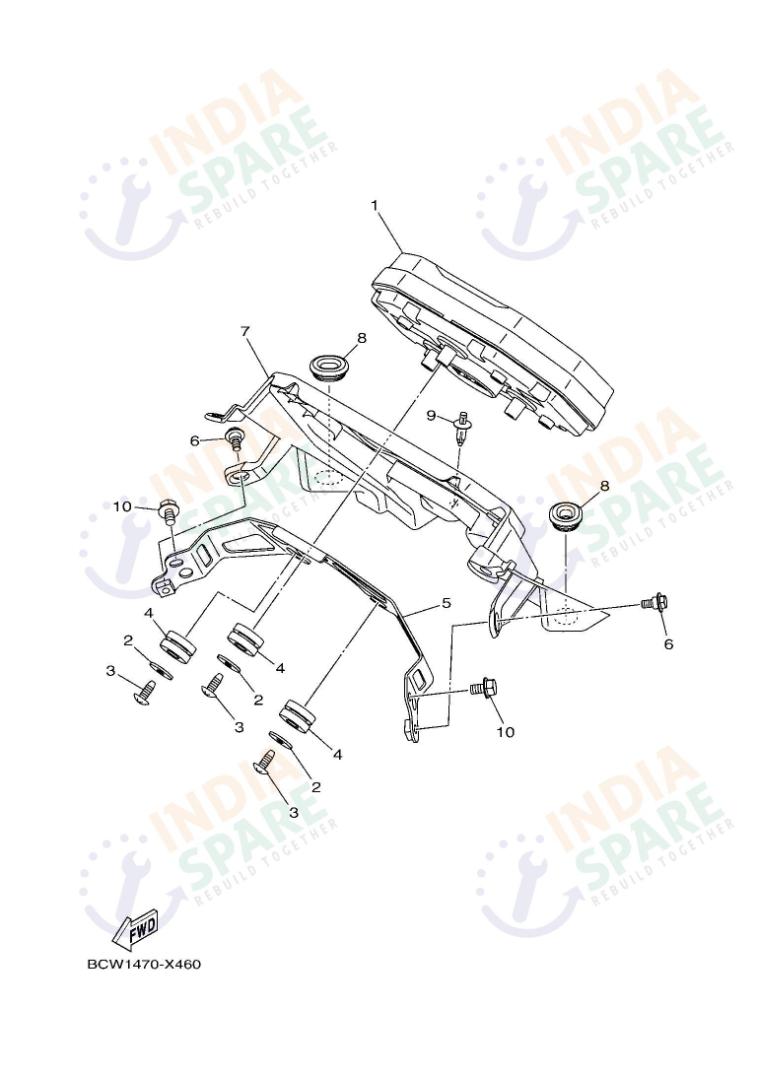

METER
DM46
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BCWH35000100 | SPEEDOMETER ASSY | ₹ 8088 | 1 | ||
| 2 | 902010503600 | WASHER | ₹ 2 | 3 | ||
| 3 | 977075001400 | SCREW TAPPING | ₹ 15 | 3 | ||
| 4 | 904801481600 | GROMMET | ₹ 8 | 3 | ||
| 5 | BCWH35190000 | BRACKET METER | ₹ 193 | 1 | ||
| 6 | 958170601000 | BOLT FLANGE | ₹ 8 | 2 | ||
| 7 | BCWH35590000 | COVER METER | ₹ 87 | 1 | ||
| 8 | 904800155900 | GROMMET | ₹ 10 | 2 | ||
| 9 | 902690681300 | RIVET | ₹ 8 | 1 | ||
| 10 | 901090501400 | BOLT | ₹ 15 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Real time data serves as the compass for every enthusiast pushing the limits on their Yamaha R15 V4 through curves plus straights. The Meter catalog provides essential instrument replacements including the Speedometer Assy plus various Brackets required for stable mounting on your handle setup. Every Speedometer kit delivers accurate information regarding engine revolutions plus ground speed plus fuel status to keep the pilot perfectly informed. Using genuine components including original Gaskets plus various Rivet sets plus Flange Bolts protects the sensitive digital screens against excessive engine heat plus shocks. Maintaining a clear dashboard remains crucial for tracking the high revving performance characteristics that the Yamaha R15 V4 remains famous for worldwide. Every Nut plus Collar plus specialized Cover kit found within this assembly meets strict quality control measures to prevent electronic interference from external sources. Restore your view of the numbers with authentic factory parts plus feel the pulse of your engine with absolute visual clarity.
