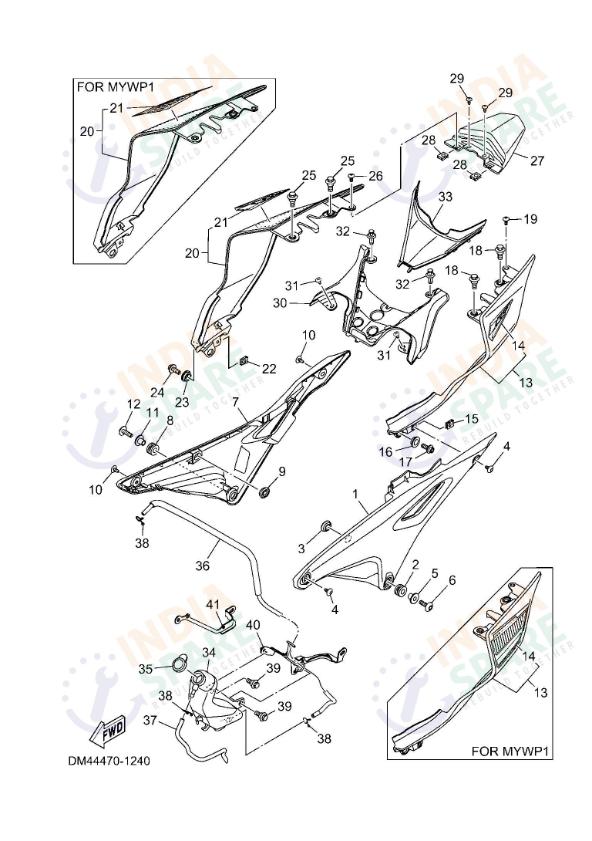

SIDE COVER
DM46
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BCWF17110000 | COVER SIDE 1 | ₹ 129 | 1 | ||
| 2 | 904801280500 | GROMMET | ₹ 8 | 1 | ||
| 3 | 904800155900 | GROMMET | ₹ 10 | 1 | ||
| 4 | 901600581200 | SCREW ROUND TAPPING | ₹ 10 | 2 | ||
| 5 | 903870689900 | COLLAR | ₹ 30 | 1 | ||
| 6 | 901490682900 | SCREW | ₹ 25 | 1 | ||
| 7 | BCWF17210000 | COVER SIDE 2 | ₹ 128 | 1 | ||
| 8 | 904801280500 | GROMMET | ₹ 8 | 1 | ||
| 9 | 904800155900 | GROMMET | ₹ 10 | 1 | ||
| 10 | 901600581200 | SCREW ROUND TAPPING | ₹ 10 | 2 | ||
| 11 | 903870689900 | COLLAR | ₹ 30 | 1 | ||
| 12 | 901490682900 | SCREW | ₹ 25 | 1 | ||
| 13A | BCWXF17311P1 | COVER, SIDE 3 | ₹ 1687 | 1 | FOR DPBMY | |
| 13B | BCWXF17301P8 | COVER, SIDE 3 | ₹ 1500 | 1 | FOR MYWP1 | |
| 14A | BPDF174G0000 | GRAPHIC 3 | ₹ 200 | 1 | FOR DPBMY | |
| 14B | DM4F173E2000 | GRAPHIC 1 | ₹ 100 | 1 | FOR MYWP1 | |
| 15 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 16 | 903871086600 | COLLAR | ₹ 41 | 1 | ||
| 17 | 901100621500 | BOLT HEXAGON SOCKET HEAD | ₹ 19 | 1 | ||
| 18 | 90109068C600 | BOLT | ₹ 18 | 2 | ||
| 19 | 901110501600 | BOLT,HEX. SOCKET BUTTON | ₹ 12 | 1 | ||
| 20A | BCWXF17411P1 | COVER, SIDE 4 | ₹ 1687 | 1 | FOR DPBMY | |
| 20B | BCWXF17401P8 | COVER, SIDE 4 | ₹ 1500 | 1 | FOR MYWP1 | |
| 21A | BPDF174H0000 | GRAPHIC 4 | ₹ 200 | 1 | FOR DPBMY | |
| 21B | DM4F173F2000 | GRAPHIC 2 | ₹ 100 | 1 | FOR MYWP1 | |
| 22 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 23 | 903871086600 | COLLAR | ₹ 41 | 1 | ||
| 24 | 901100621500 | BOLT HEXAGON SOCKET HEAD | ₹ 19 | 1 | ||
| 25 | 90109068C600 | BOLT | ₹ 18 | 2 | ||
| 26 | 901110501600 | BOLT,HEX. SOCKET BUTTON | ₹ 12 | 1 | ||
| 27 | BCWF171E0000 | COVER SIDE 5 | ₹ 42 | 1 | ||
| 28 | 90183050A600 | NUT SPRING | ₹ 73 | 2 | ||
| 29 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 2 | ||
| 30 | BCWF171X0000 | COVER SIDE 6 | ₹ 63 | 1 | ||
| 31 | 977075001200 | SCREW TRUSS HD TAP | ₹ 5 | 2 | ||
| 32 | 902690681300 | RIVET | ₹ 8 | 2 | ||
| 33 | BCWF175N0000 | COVER FLANGE | ₹ 27 | 1 | ||
| 34 | BK7F18710000 | TANK RECOVERY | ₹ 105 | 1 | ||
| 35 | BK7F18750000 | CAP | ₹ 12 | 1 | ||
| 36 | BK7F18170000 | PIPE 2 | ₹ 81 | 1 | ||
| 37 | BK7F247A0000 | HOSE 1 | ₹ 11 | 1 | ||
| 38 | 904670800300 | CLIP OIL PIPE | ₹ 8 | 3 | ||
| 39 | 90109068B200 | BOLT | ₹ 13 | 2 | ||
| 40 | BCWF82830000 | BRACKET POUCH | ₹ 244 | 1 | ||
| 41 | BGNF82840000 | BRACKET, UNDER | ₹ 175 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Aero dynamic bodywork plus aggressive graphics provide the distinct track ready personality of every genuine Yamaha R15 V4 cruising the streets of our country. This Side Cover catalog assembly contains every external fairing piece including Side Cover units plus original Recovery Tank components required for thermal management. Included within this collection are the specialized Graphic kits for various model years plus the necessary Grommet plus Nut Spring kits for assembly. These plastic panels feature high quality paints along with UV resistant graphics meant to stay bright despite constant exposure to sun plus road grime. Genuine side fairings include internal mounting points for original fasteners that ensure a rattle free experience while riding at top highway speed. Owners of the R15 V4 understand that authentic body panels fit perfectly without the need for forced modifications which can crack fragile mounting tabs easily. Protect the cooling system components plus maintain the sharp visuals of your machine by investing in original body panels today.
